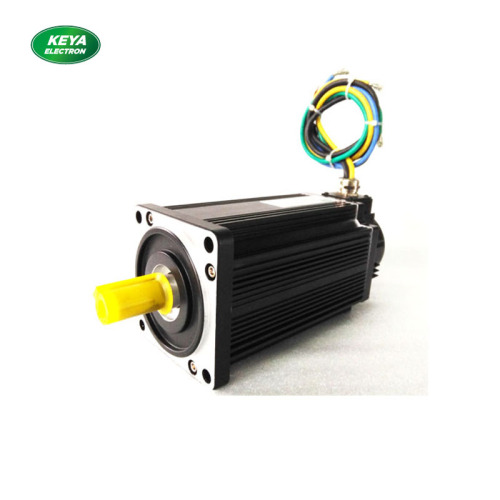

24V 1KW brushless dc motor with encoder
Basic Info
| Model No. | KY110AS0210-15 |
|---|---|
| Brand Name | Keya |
| Application | Universal |
| Casing Protection | Protection Type |
| Number of Poles | 10 |
| Certification | ISO9001 |
| Rated Speed | 1500rpm |
Product description
Product Description
The dc servo motor adopt a permanent magnet motor and come standard with closed-loop speed/position control, where the motors operation status is fed back to the driver.
The motor encoder have A B Z and A- B- Z-, to realize high precision control.
BLDC SERVO Motor Work Environment
1. Altitude less than 1000M.
2. Environment temperature: -25℃~+50℃
3. The most moist month average relative humidity should less than 90%, and this month's average lowest temperature should less than 25℃.
| Rated voltage | 24V |
| Rated power | 1000W |
| Rated current | 52A |
| Rated speed | 1500rpm |
| Rated torque |
6.3N.m |
| Peak torque |
22N.m |

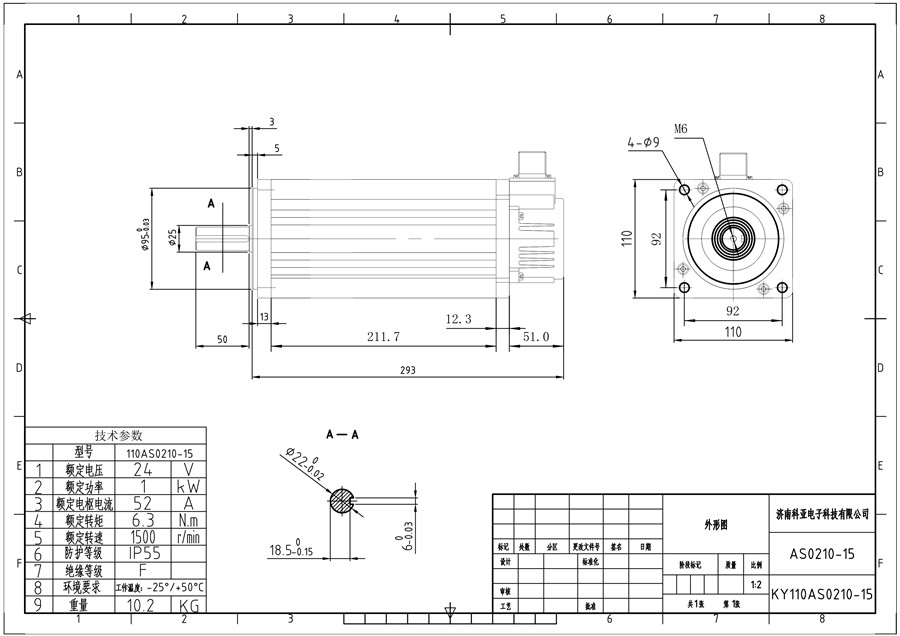

| Motor shaft diameter | 22mm |
| Motor length | 293mm |
| Encoder | 2500ppr, optical |
| Brake | if you need brake, kindly advise |
|
Weight |
10.2kg |
| Model | Voltage | Power | Rated speed | Rated current | Rated torque | Peak torque | Length | Shaft Dia | Weight | |
| Frame | Unit | V | W | RPM | A | N.m | N.m | mm | mm | kg |
| 60*60mm | KY60AS0201-30 | 24 | 100 | 3000 | 5.4 | 0.31 | 0.95 | 147 | ?11 | 1.4 |
| KY60AS0202-30 | 24 | 200 | 3000 | 10.4 | 0.63 | 1.89 | 147 | ?11 | 1.4 | |
| 80*80mm | KY80AS0202-15 | 24 | 200 | 1500 | 10.4 | 1.27 | 3.8 | 142.5 | ?14 | 2.3 |
| KY80AS0402-15 | 48 | 200 | 1500 | 5.2 | 1.27 | 3.8 | 142.5 | ?14 | 2.3 | |
| KY80AS0204-15 | 24 | 400 | 1500 | 21.3 | 2.55 | 7.65 | 185 | ?14 | 3.5 | |
| KY80AS0404-15 | 48 | 400 | 1500 | 10.4 | 2.55 | 7.65 | 185 | ?14 | 3.5 | |
| KY80AS0204-30 | 24 | 400 | 3000 | 21 | 1.27 | 3.8 | 142.5 | ?14 | 2.3 | |
| KY80AS0404-30 | 48 | 400 | 3000 | 10.4 | 1.27 | 3.8 | 142.5 | ?14 | 2.3 | |
| KY80AS0407-30 | 48 | 700 | 3000 | 19.4 | 2.2 | 6.5 | 185 | ?14 | 3.5 | |
| 110*110mm | KY110AS0405-15 | 48 | 500 | 1500 | 14 | 3.1 | 10.8 | 199 | ?14 | 6 |
| KY110AS0205-15 | 24 | 500 | 1500 | 26 | 3.1 | 10.8 | 223 | ?14 | 6.6 | |
| KY110AS0408-15 | 48 | 800 | 1500 | 21 | 5 | 17.9 | 223 | ?14 | 6.6 | |
| KY110AS0207-15 | 24 | 750 | 1500 | 39 | 4.7 | 16.6 | 246 | ?19 | 7.6 | |
| KY110AS0408-25 | 48 | 800 | 2500 | 22 | 3 | 10.5 | 223 | ?14 | 6.6 | |
| KY110AS0410-15 | 48 | 1000 | 1500 | 26 | 6.3 | 22 | 246 | ?19 | 7.6 | |
| KY110AS0210-15 | 24 | 1000 | 1500 | 52 | 6.3 | 22 | 293 | ?22 | 10.2 | |
| KY110AS0412-25 | 48 | 1200 | 2500 | 31 | 4.5 | 15.7 | 246 | ?19 | 7.6 | |
| KY110AS0415-15 | 48 | 1500 | 1500 | 39 | 9.5 | 28 | 293 | ?19 | 10.2 | |
| KY110AS0415-30 | 48 | 1500 | 3000 | 30 | 4.7 | 14.1 | 246 | ?19 | 7.6 | |
| KY110AS0420-25 | 48 | 2000 | 2500 | 55 | 7.6 | 26 | 293 | ?22 | 10.2 | |
| 130*130mm | KY130AS0410-15 | 48 | 1000 | 1500 | 26 | 6.3 | 22 | 186 | ?25 | 7.6 |
| KY130AS0415-15 | 48 | 1500 | 1500 | 37.5 | 9.5 | 28 | 207 | ?28 | 13 | |
| KY130AS0430-15 | 48 | 3000 | 1500 | 73 | 19.1 | 57 | 273 | ?28 | 14.2 | |
We also can provide the matched gearbox with dc motor with encoder, to reduce the speed and get the higher torque.
Gear box range: line planetary gearbox, right angle planetary gearbox, worm gearbox, if you need other gearbox, kindly advise.
The brushless dc motor with encoder be widely used in mobile robot, for example, crawler robot chassis, inspection robot, automatic guided vehicle, fire fighting robot, self-guided vehicle.
