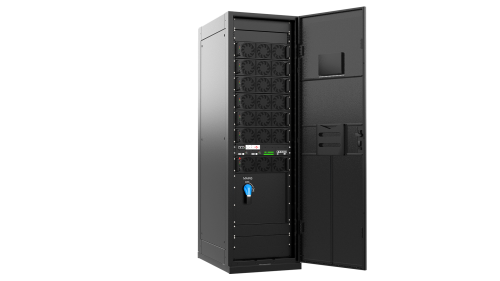

50-400kVA Modular Online UPS 440V/460V/480V
The output voltage:
- 440/460/480Vac
Options:
- Battery Rated Voltage: ±240VDC
Basic Info
| Model No. | UL Series Modular Online UPS (440V/460V/480V) 50-400kVA |
|---|---|
| Brand Name | Unitronic Power |
| warranty period | 3months-1year, 3years |
| place of origin | China |
| Phase | Three Phase |
| Protection | Lightning, Short Circuit, Overvoltage, Overcurrent, Unbalanced Loads |
| weight | Other |
Product description
A UPS system is a device that provides backup power to critical equipment in the event of a power outage or other power-related issues. A modular UPS system, on the other hand, is a UPS system that consists of multiple modules that can be added or removed as needed. This allows for greater flexibility and scalability, making it an essential tool for mission-critical applications.
Looking for a reliable and high-performance UPS for your business? Look no further than the UL Series Modular Online UPS 50-400kVA. This cutting-edge modular design UPS features advanced DSP control technology and online double conversion, making it capable of completely eliminating all types of grid problems and providing customers with stable and pure sinusoidal power supply protection.
As businesses grow, their power needs also increase. With a modular UPS system, businesses can easily add or remove modules to meet their changing power requirements. This allows for greater flexibility and scalability, ensuring that businesses can continue to operate without any interruptions.
Modular UPS systems offer a high level of redundancy, which is essential for mission-critical applications. If one module fails, the other modules can continue to provide power, ensuring that there is no downtime. This redundancy also means that maintenance can be performed without any interruptions to operations.
Modular UPS systems are highly efficient, which means that they consume less energy and generate less heat. This is important for businesses that want to reduce their energy costs and carbon footprint. Additionally, the efficiency of modular UPS systems means that they require less cooling, which can also lead to cost savings.
The UL Series Modular Online UPS 50-400kVA also features N+X redundancy, output power factor 1, and is configured with a manual bypass switch. If you're looking for a UPS that is not only reliable but also energy-efficient, the UL Series Modular Online UPS 50-400kVA is the perfect choice.
◆Application
Large and medium data centers, IT machine rooms, financial institutions, traffic dispatch centers, security monitoring, etc.
|
Model |
UL200/50-M |
UL300/50-M |
UL400/50-M |
|
|
Capacity |
50-200kVA |
50-300kVA |
50-400kVA |
|
|
Input |
Phase |
3 Phase+Neutral+Ground |
||
|
Rated Voltage |
440/460/480Vac |
|||
|
Voltage Range |
228-528Vac |
|||
|
Frequency Range |
40-70Hz |
|||
|
Power Factor |
≥0.99 |
|||
|
THDi |
≤3% (100% linear load) |
|||
|
Bypass |
Voltage Range |
Upper limit: 440V+25% (+10%, +15%, +20%, settable); 460V+20% (+10%, +15%, settable) 480V+10% Lower limit: -40% (-10%, -20%, -30%, settable) |
||
|
Frequency Range |
50/60Hz±10% |
|||
|
Output |
Phase |
3 Phase+Neutral+Ground |
||
|
Rated Voltage |
440/460/480Vac |
|||
|
Power Factor |
1 |
|||
|
Voltage Regulation |
±1% |
|||
|
Output Frequency |
Normal Mode: ±1%/±2%/±4%/±5%/±10%, settable; Battery Mode: 50/60Hz±0.1% |
|||
|
Crest Factor |
3:1 |
|||
|
THDu |
≤2% (linear load); ≤4% (non-linear load) |
|||
|
Overload |
110% for 60 mins; 125% for 10 mins; 150% for 1 min; ＞150%, transfer to bypass |
|||
|
Rated Voltage |
±240VDC |
|||
|
Charging Current |
Max.20A per module,settable |
|||
|
System |
Efficiency |
96% |
||
|
Display |
7-inch color touching screen |
|||
|
IP Class |
IP20 |
|||
|
Interface |
USB, CAN, RS485, LBS (optional), Parallel card (optional), Relay card (optional), SNMP card (optional) |
|||
|
Temperature |
Operation: 0-40℃; Storage: -25-55℃ |
|||
|
Humidity |
0-95% (non-condensing) |
|||
|
Altitude |
＜1500m, within 1500-4000m, power derates 1% every 100m rise |
|||
|
Noise |
＜65dB |
＜68dB |
||
|
Physical |
Weight(kg) |
260 |
350 |
450 |
|
Module: 33kg |
||||
|
Dimension W*D*H(mm) |
600*850*1550 |
600*850*2000 |
600*850*2000 |
|
|
440*620*131 |
||||
50-400kVA Modular Online UPS 440V/460V/480V
The output voltage:
- 440/460/480Vac
Options:
- Battery Rated Voltage: ±240VDC
