CS-225 TTMC Circular Saw and Cold Saw: Your Ultimate Cutting Solution

1 / 1

CS-225 TTMC Circular Saw and Cold Saw: Your Ultimate Cutting Solution

$1150.00 ~ $1590.00 / set

Options:

  • CS-225
Get Latest Price

Basic Info

Model No.
Brand Name
Place Of Origin Shandong, China
Brand Name TTMC
Condition New
Type Circular Saw Machine
Video Outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type Portable Coldsaw with cheap price
Warranty Of Core Components 1 Year
Core components Gearbox
Voltage According to customer request
Rated Power 750W
Dimension(L*W*H) 64*39*72cm
Warranty 1 Year
Key Selling Points Long Service Life
Applicable Industries Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction works?, Other
Showroom Location Canada, United Kingdom, France, Germany, Philippines, Peru, Saudi Arabia, Indonesia, Mexico, Spain, Thailand, South Korea, Chile, UAE, Colombia, South Africa, Malaysia, Australia
Weight (KG) 63 KG
Item No. 388025
Model CS-225
Motor power 750w
Drive GEAR
Blade speed 46rpm
Vice opening 70mm(2.8")
Packing size 71x50x62cm
Weight 63/75kg
Show More

Product description

Product Overview

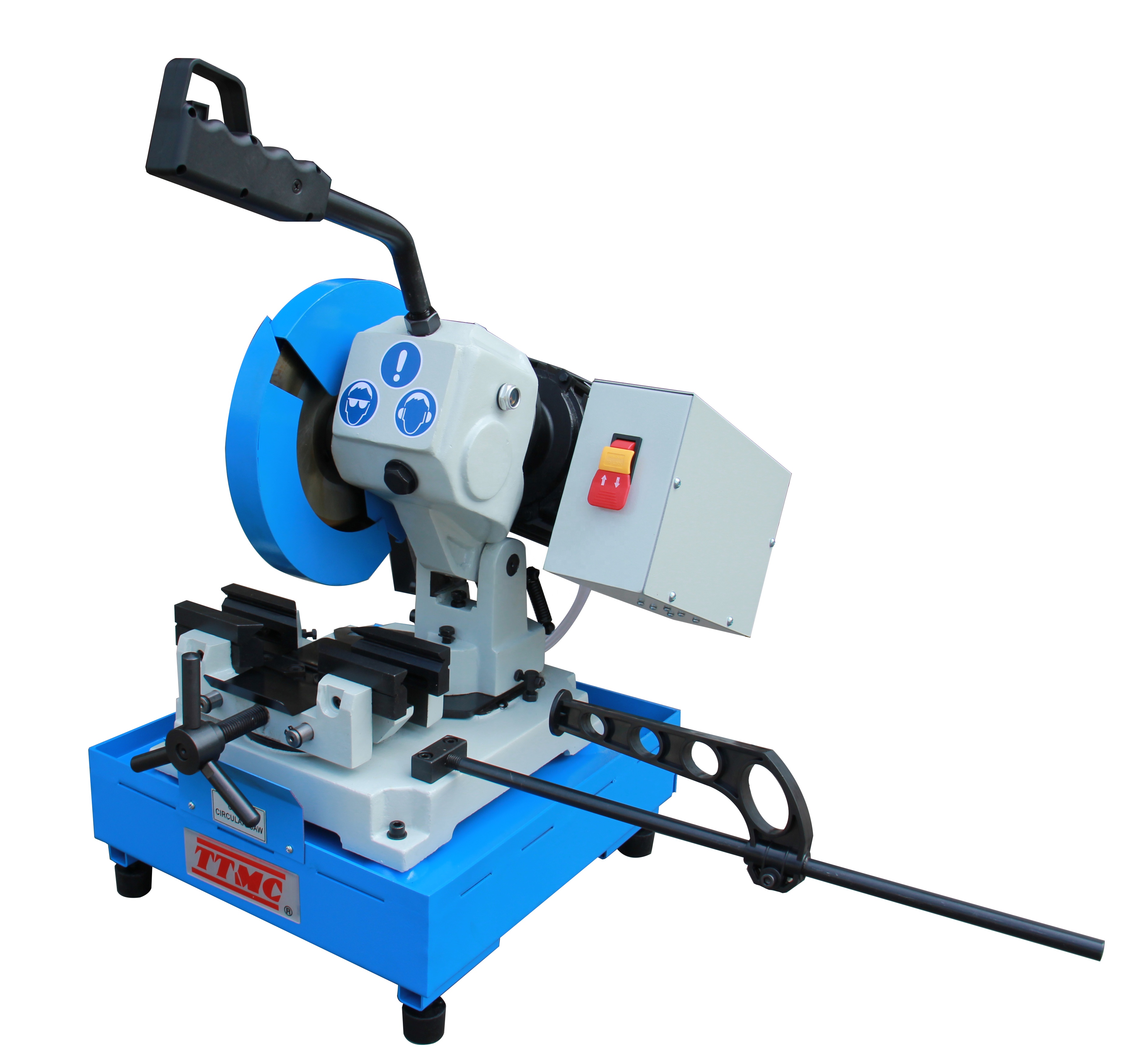

TTMC MANUALLY OPERATED COLDSAW CS-225M

This portable benchtop saw has a cast base and a flood coolant system, often found only on more expensive models
FEATURES AT A GLANCE
Accepts a 9” /225mm blade (included). It’s TTMC smallest cold saw. 2.5” round tube maximum capacity at 90°. Miters up to 45° to the left.
Cuts tubing, pipe, angle iron, solids, and much more. 1 hp motor, so you can plug it in anywhere.
Self-centering American-style vise keeps the material in the right position with respect to the blade.
Vise grips the material on both sides of the blade for extra support. Direct drive gearbox (encased in a fully machined cast iron housing) ensures proper alignment and a long lifetime of use.
Stop rod helps with repeatability for small production runs.
Heavy-duty cast iron base stabilizes the machine, so that it can deliver accurate cuts for many years.
Flood coolant system maintains high cut quality and helps both the saw and its blades last longer.
Detailed Images

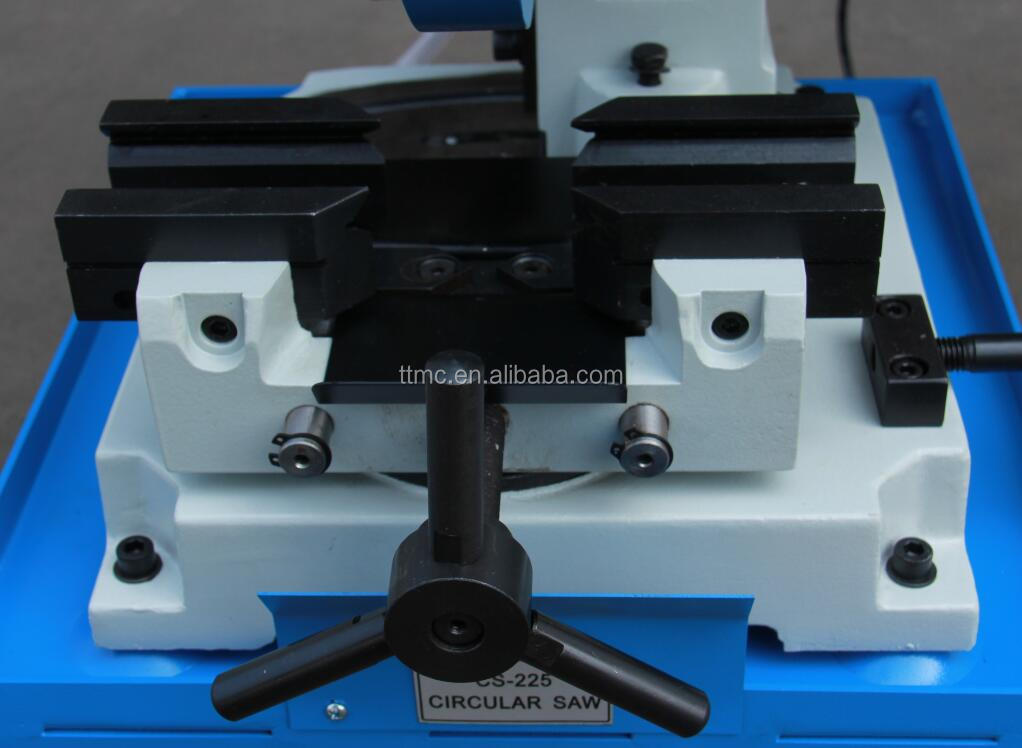

Self-centered vice

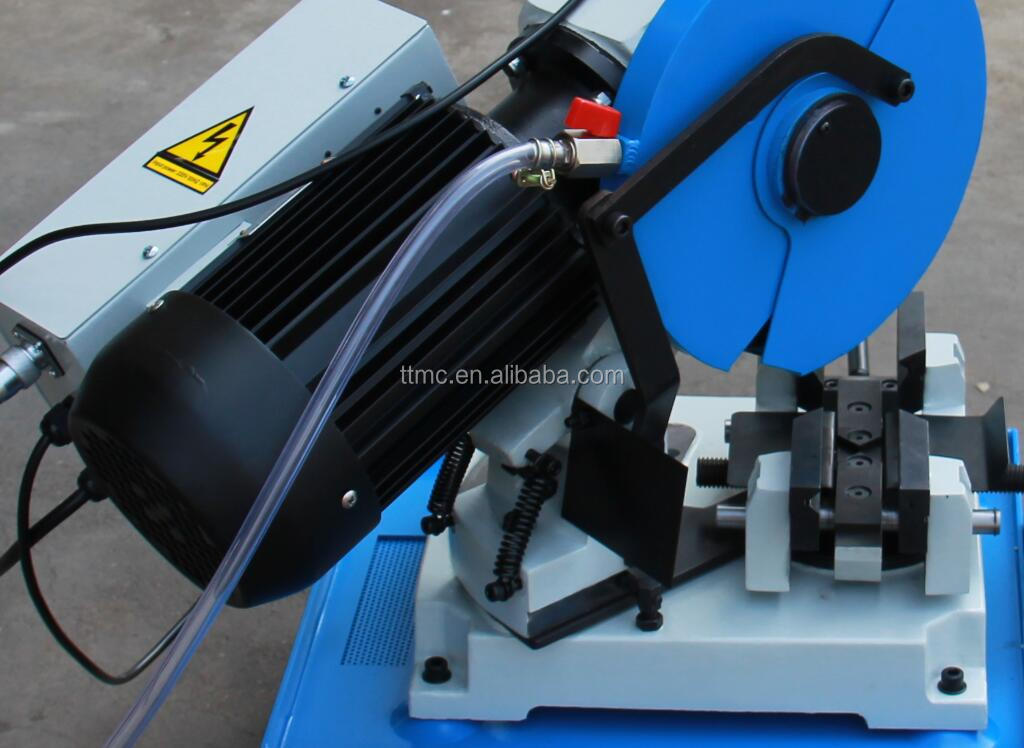

Swivel Head for angle cutting

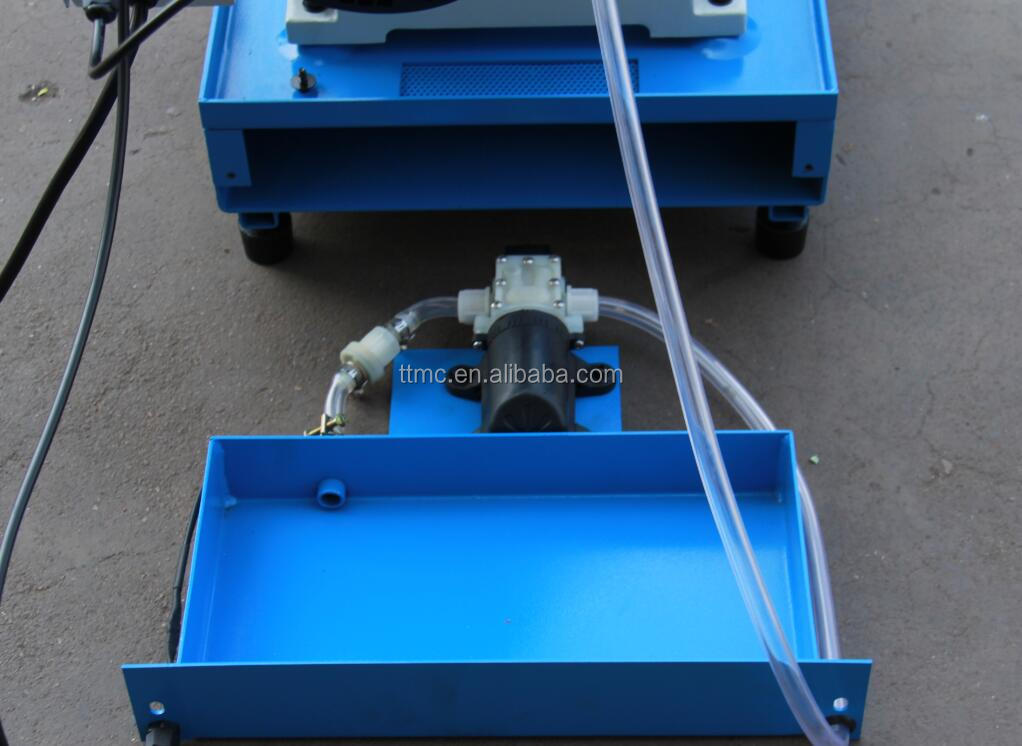

Coolant System

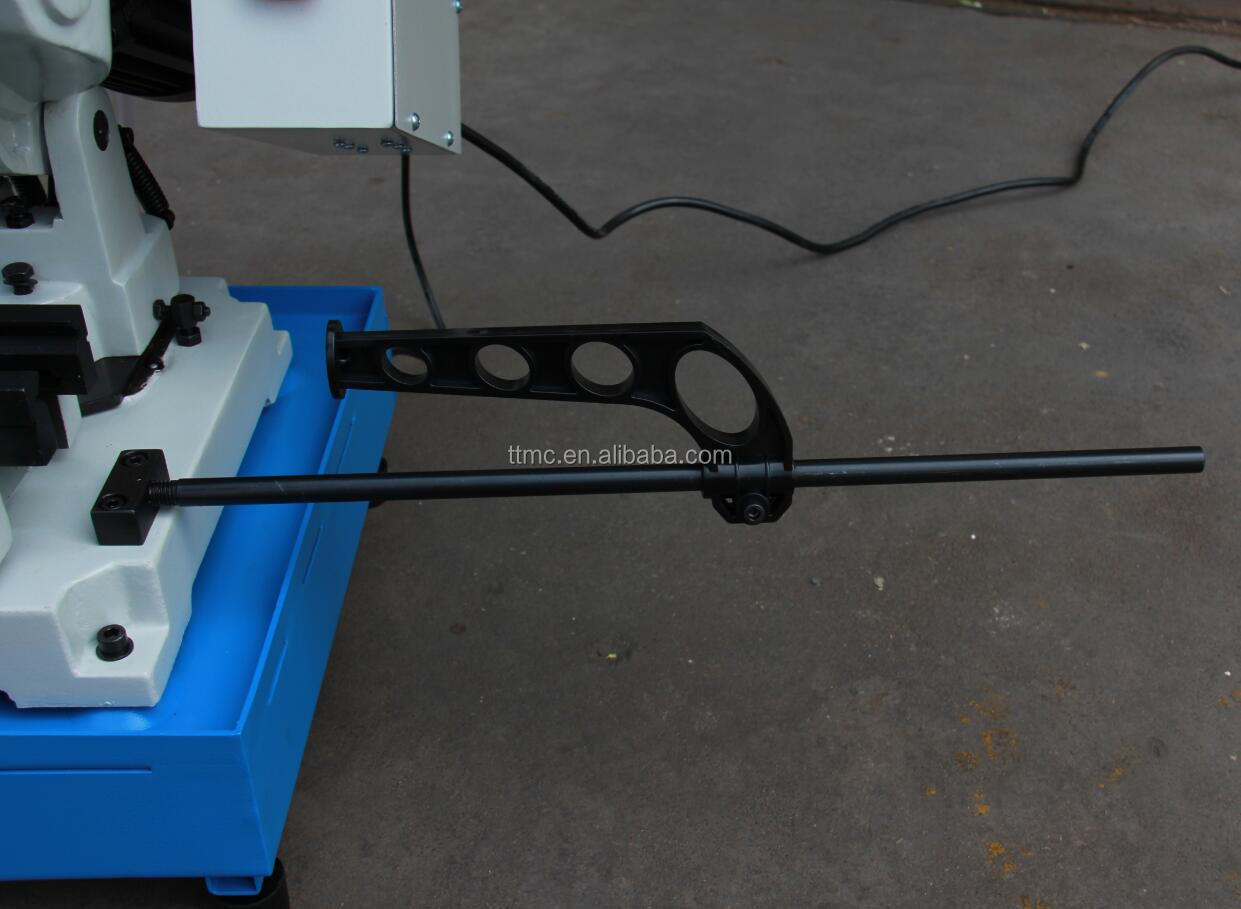

Stop Rod
PRODUCT SPECIFICATIONS
TTMC Cold Saw Series, range from 9" to 14"
SKU
388025
388021
388022
388019
388020
Model
CS-225
CS-250
CS-275
CS-315
CS-350
Blade size?
225mm
8.9"
250mm
9.8"
275mm
10.8"
315mm
12.4"
350mm
13.8"
Circular@90°
60mm/2.36"
60mm/2.36"
70mm
2.75"
100mm
4"
120mm
4.7"
Rectangular@90°
50x50mm/2"x2"
75x45mm
3"x1.77"
90x45mm
3.5“x1.77”
140x90mm
5.5"x3.5"
140x100mm
5.5"x4"
Circular@45°
52mm/2.05"
55mm
2.16"
65mm
2.56"
90mm
3.5"
105mm
4.1"
Rectangular@45°
50x50mm/2"x2"
55x45mm
2.16"x1.77"
70x45mm
2.75"x1.77"
100x90mm
4"x3.5"
100x100mm
4"x4"
Blade Speed
46 rpm
42rpm
42rpm
18,36 rpm
18,36 rpm
Vice Opening
70mm
2.8"
100mm
4"
100mm
4"
145mm
5.7"
145mm
5.7"
Motor Powr
750W/1HP
1.1kW /1.5 HP
1.1kW/1.5HP
750W 1HP/1.3kW 1.7HP (3PH)
1.1kW 1.5HP (1PH)
Drive
Gear
Gear
Gear
Gear
Gear
Packing size
71x50x62 cm
86x58x77 cm
78x47x33 cm
86x58x78 cm
78x47x33 cm
98x62x93 cm
78x60x50 cm
98x62x95 cm
78x60x50 cm
N.W./G.W.
63/75 kg
143/171 kg
148/174 kg
227/261 kg
236/270 kg
SIMILAR PRODUCTS

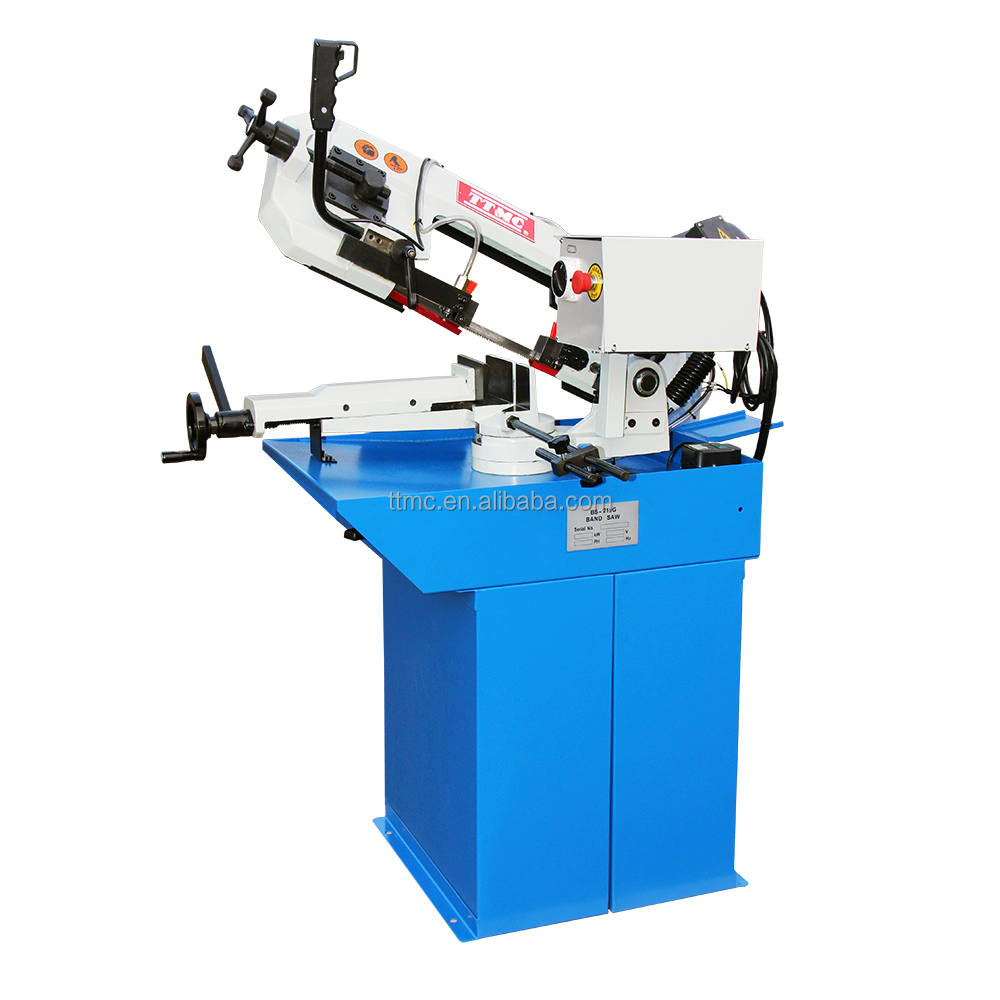

BS-215G
TV350

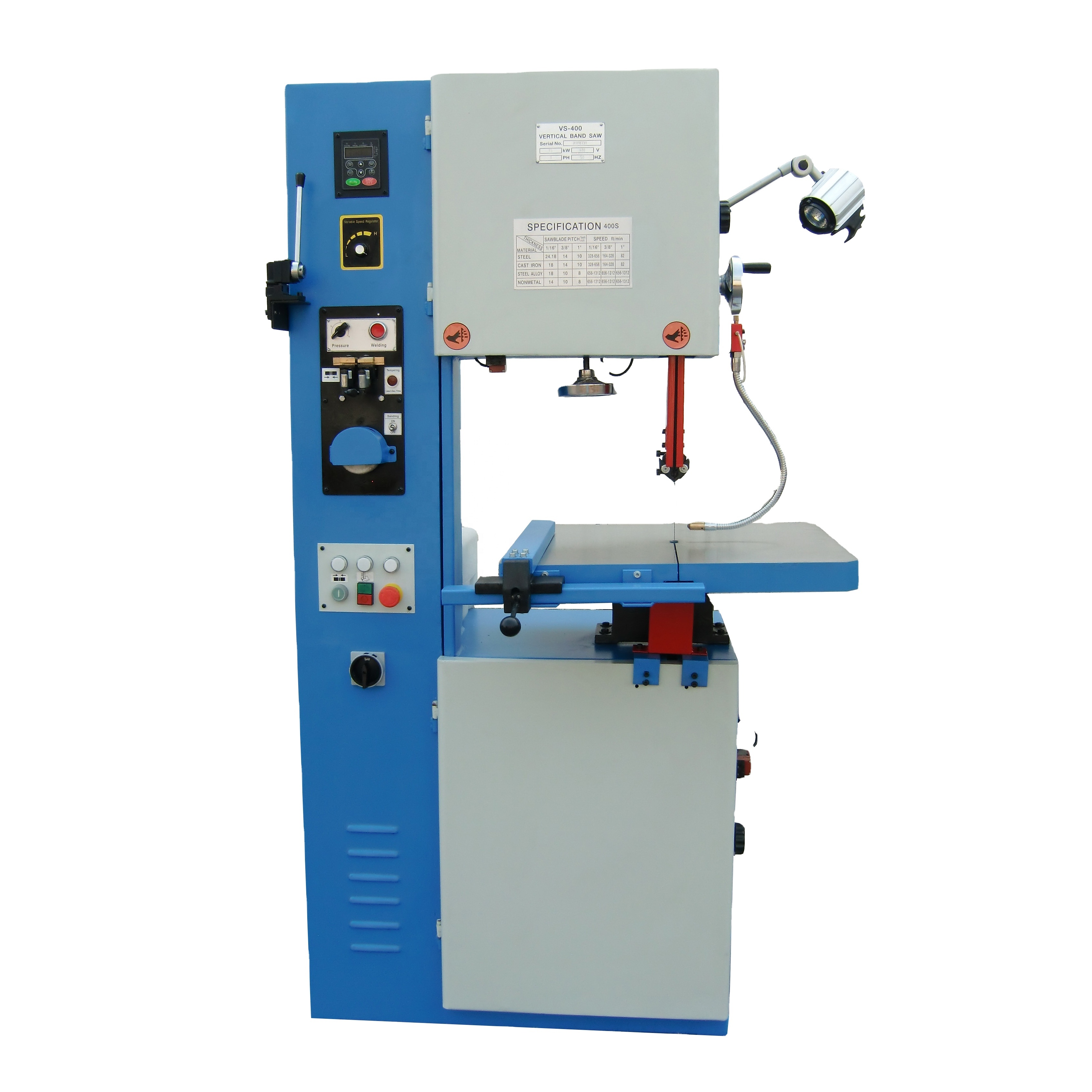

VS-400
