Basic Info

Model No.	Y3120CNC7
Brand Name	TOMAN
place of origin	China
Whether CNC machine tool	Cnc
status	New
Types of	Gear Hobbing Machine
Video factory inspection	Provided
Mechanical test report	Provided
Marketing type	New Product 2020
Core component warranty period	1 Year
Core components	Engine, Gearbox, Motor, Gear, Pump
warranty period	1 Year
Core selling point	Automatic
Applicable industry	Manufacturing Plant, Farms, Energy &Amp; Mining
Out-of-warranty service	Video Technical Support, Online Support, Spare Parts
Where to provide local services (in which countries are there overseas service outlets)	India, Malaysia
Showroom location (in which countries are there sample rooms overseas)	None

Product description

Toman Factory

TOMAN is a multi-in-one integrated system solution provider, which including “Automation equipment system integration supplier”,”Intelligent manufacturing technology renovation project contractor”, and “Industry Internet platform service provider” etc. Mainly engaged in the research and development,manufacturing and service of Gear Automation Equipment, Bearing Automation Equipment, Intelligent Components, Industrial Internet application and system integration based on 4.0.

“TOMAN” means “gold coin” in ancient Persia, express the company’s vision and goal of “becoming a leader in the professional field” and “creating wealth for customers and society”, continue to provide high performance automation equipment for segmented industries, create value for customer.

TOMAN is committed to being a leader in the professional gear manufacturing field and creating wealth for customers and society.

Speciallized in the production of all kinds of gear cutting machine tools and automatic production line.

Provide the customers with high efficiency, high precision, cost-effective comprehensive solutions of gear cutting.

Gear Manufacturing Y3120cnc7

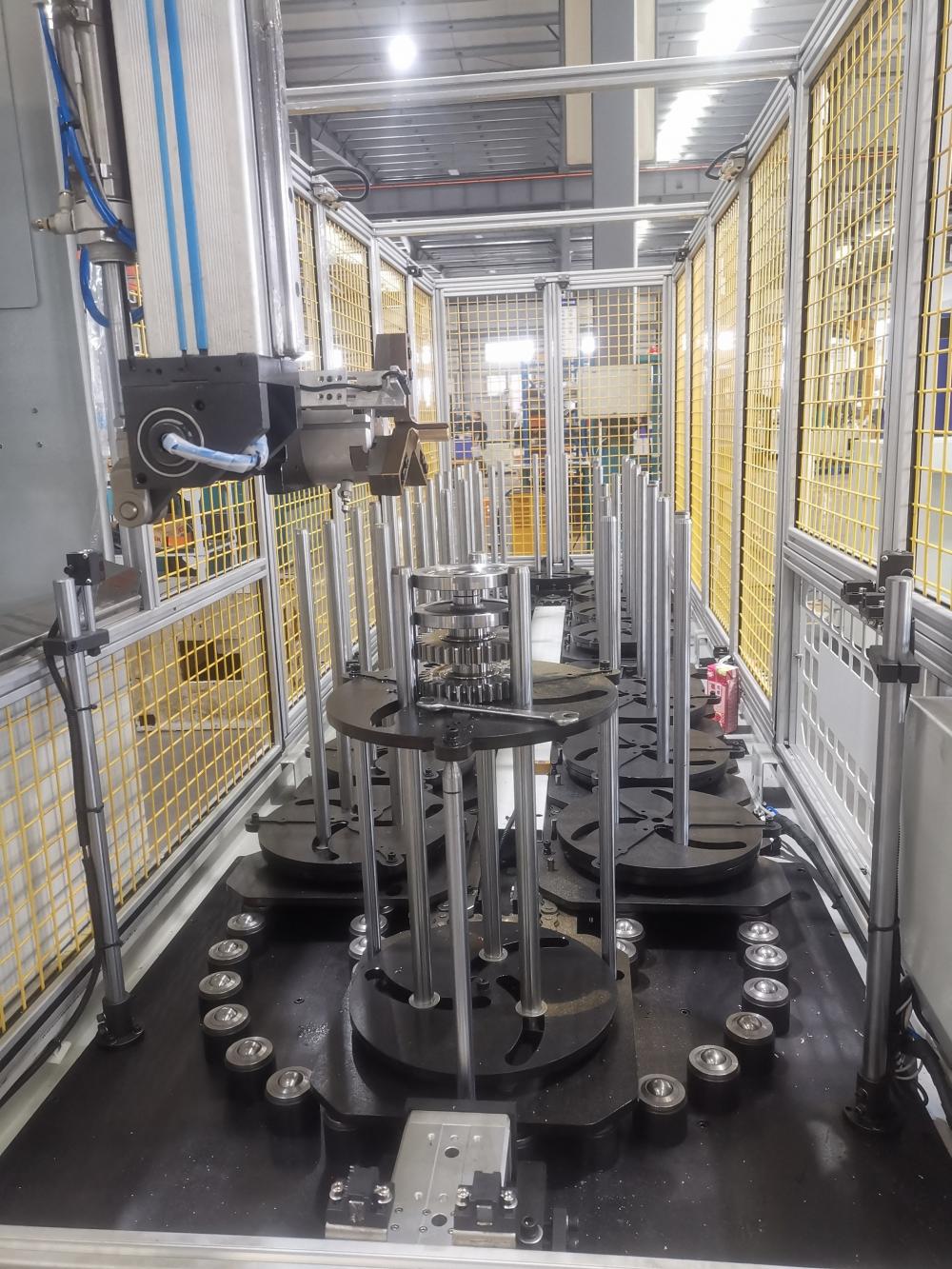

Automatic Bin

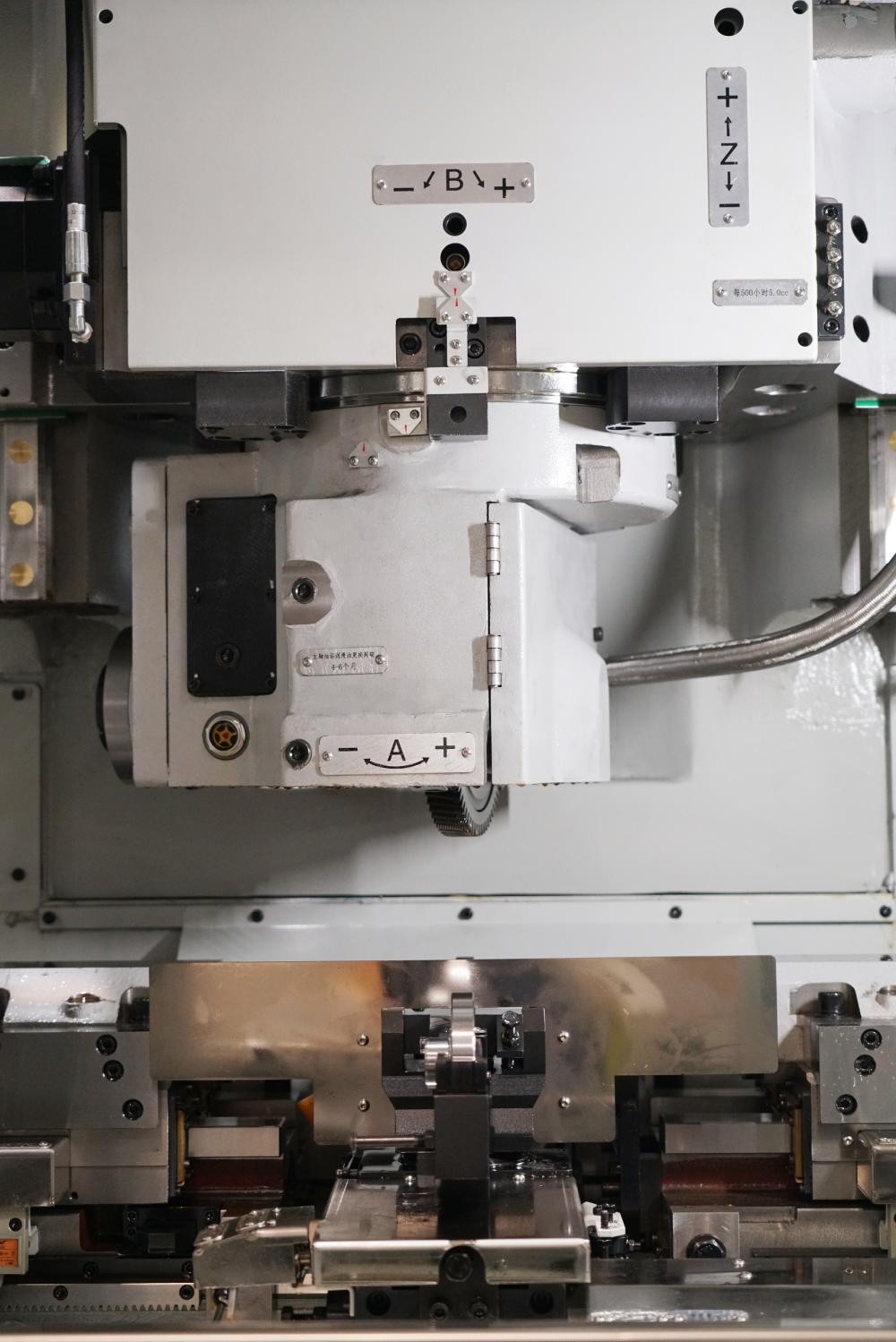

Y3120 CNC7 Hobbing Machines are vertical hobbing, which are capable of producing disc gear, shaft gear, helical gear and small taper tooth, drum gear, spline, worm gear, sprocket, double or multi-linkage gear with different modules,teeth number, helical angles and directions.

Customers can choose automatic loading and unloading device, automatic material storage machine, burring device ,coarse positioning device according to the processing demands.

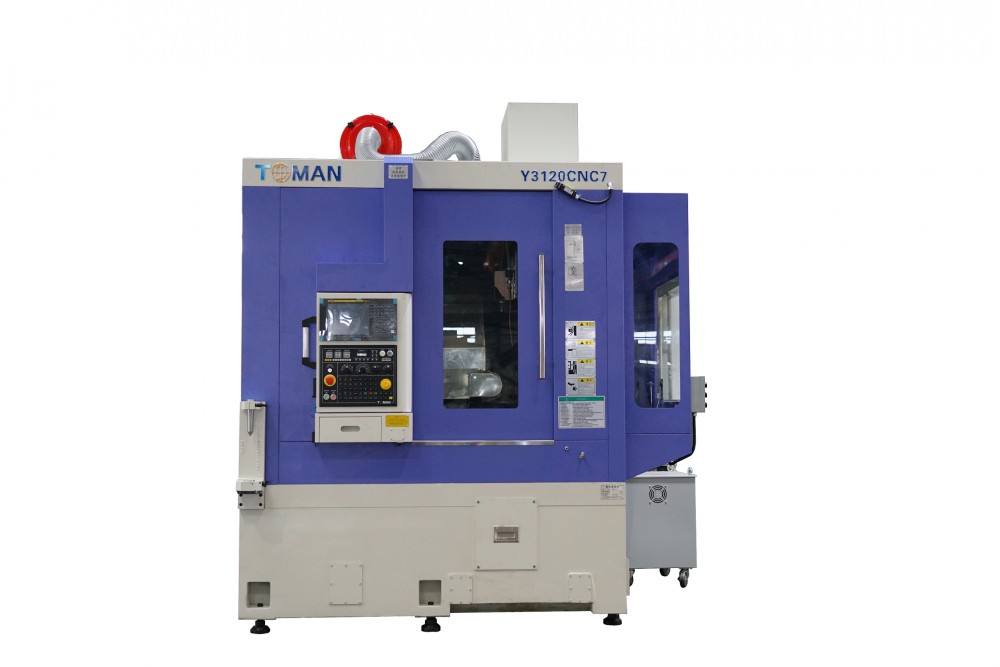

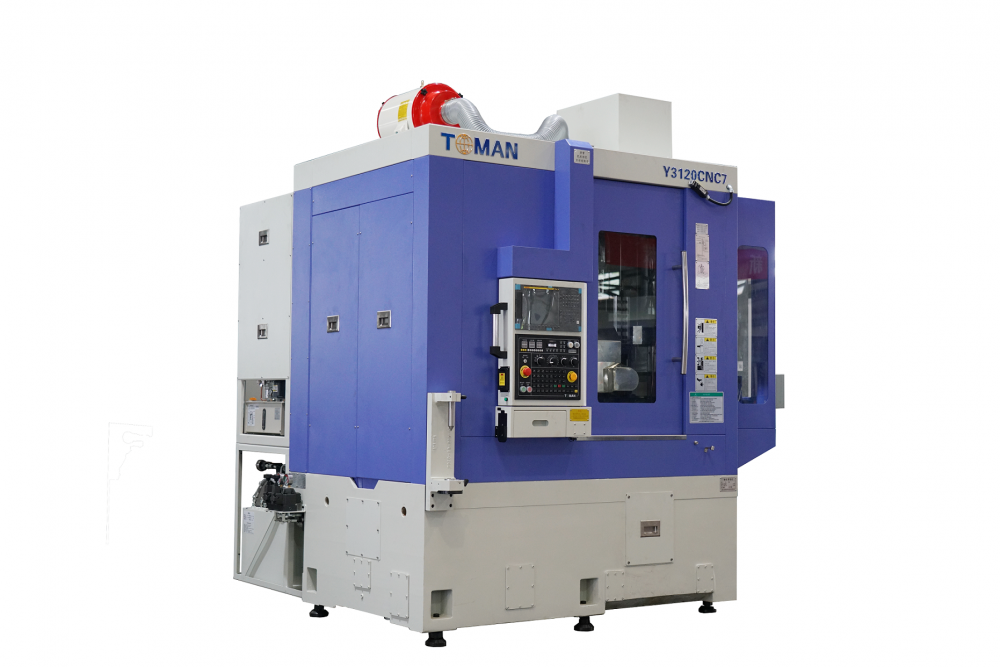

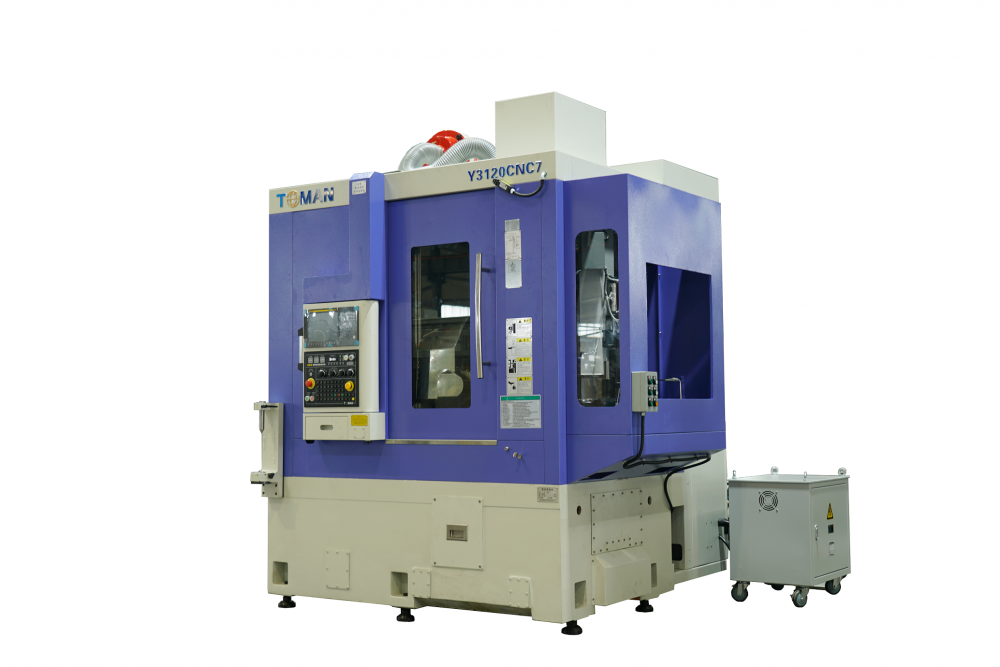

Y3120 CNC7

7 Axis-CNC Hobbing Machine

Medium-sized Gear Hobbing Machines

An Engery Saving and Complete Hobbing Machine

Automatic loading/unloading material device

FANUC numerical control system and servo drive, system reliability, simple operation

Dry Cutting Hobbing Machine or Wet/Dry Cut Hobbing Machine is optionally available.

Max. Workpiece Diameter: Φ200 mm

Max. Module: 6

Main Technology Parameter

CNC hobbing machine	Unit	TMY3120
		Wet/Dry hobbing
Maximum workpiece diameter	mm	Φ200
Maximum module	mm	6
Worktable surface diameter	mm	Φ200
Hob maximum assemble diameterx length	mm	Φ130x230
Horizontal distance between hob center and worktable center	mm	30-230
Maximum hob axial movement amount	mm	180
Hob head slide travel （Z axis displacement）	mm	200-500
Max. swiveling angle of the hob head	Deg	±45°
Hob spindle motor power	KW	11
Maximum hob spindle rotate speed（B axis）	rpm	1200/1500
Maximum worktable rotate speed（C axis）	rpm	200/250
Radial feed speed(X axis)(stepless)	mm/min	1-2000
Radial maximum rapid moving speed（X axis）	mm/min	8000
Axial feed speed(Z axis)(stepless)	mm/min	1-2000
Axial maximum rapid moving speed（Z axis）	mm/min	8000
Tangential travel feed speed（Y axis）（stepless）	mm/min	1-1000
Tangential maximum rapid travel speed（Y axis）	mm/min	3000

Standard Configuration

Hob arbor assembly （ Φ32）	hydraulic system
Hob arbor automatic clamping device	NC controller system
Workpiece automatic clamping device	NC data memory card
Spindle positioning	Operational software
Fully-enclosed safeguards	Residual-current circuit breaker
Woking light	Hands action button
Three colour lights indicate machine status	RS232C connector
Workpieces counter	Air conditioner for electric cabinet
Main spindle ampere meter	Chip conveyor
Chip cart	Automatic lubrication system
Cutting oil tank （Wet hobbing ）	Mist collector
Cold spray gun （Wet hobbing ）	The sizing block for machine adjustment

Optional Configuration

Automatic loading/unloading material device	Workpiece clamping
Automatic material storage	Workpiece rough locator device
Deburring device	Automatic tooth align device
Independent hob adjustment device	Oil cooling device
Hob arbor assembly:（metric system：Φ10, Φ13, Φ22, Φ27, Φ40）,（Inch system： Φ16, Φ22.225, Φ26.988, Φ38.1)

Application

Automobiles Gear

New Energy Vegicle Gear

Commercial Vehicle Gear

Medium and small modulus gear of Construction Machines

Reduction Gears

Electric Power Tools Gear

Sprocket

Main Features

1. With the full CNC system 7 axis and 4 axis linkage, using the generating method principle, to achieve indexing and differential compensation movement by the CNC system electronic gearbox function, and produce Cylindrical Spur Gear, Helical Gear, Small Tcone Tooth, Drum Tooth, Spline, Worm Gear, Sprocket and other teeth processing.

2. Adopted modular design, each functional components can be quickly combined into models with different functions, to meet the customer personalized, fast delivery requirements.

3. Easy to access and maintenance components with combining the hydraulic, lubricating and pneumatic components onto the machine tool.

4. Has fault self-diagnosis, spindle overload automatic monitoring and alarm protection functions etc.

5. Customers can purchase automatic loading and unloading device, automatic bin, deburring device and rough positioning device according to the processing needs.

6. The dual-station loading and unloading manipulator design of the processing position and the replacement position, compact and reliable structure, which saves the loading and unloading time to the greatest extent, and realizes less and unmanned processing, to improve the processing efficiency of the machine tool.
