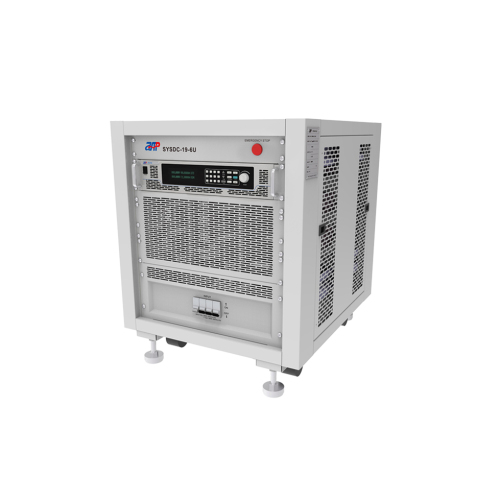

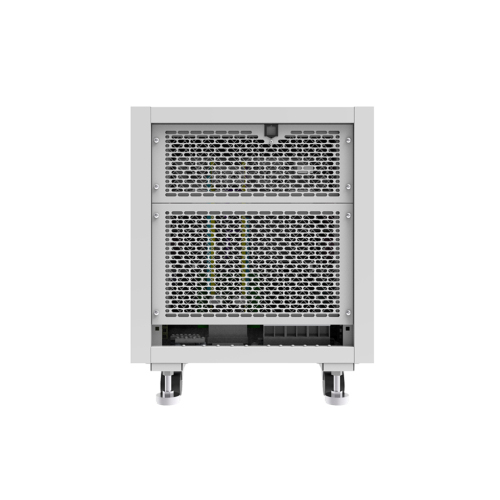

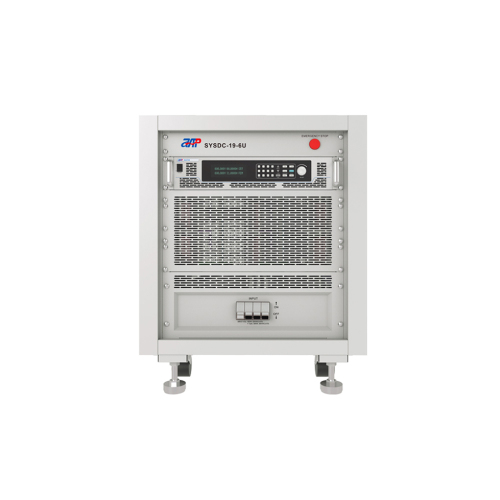

Programmable DC 12v 24v Variable Power Supply System
Programmable DC 12v 24v Variable Power Supply System
Programmable DC 12v 24v Variable Power Supply System
Programmable DC 12v 24v Variable Power Supply System

Video

1 / 4

Programmable DC 12v 24v Variable Power Supply System

$1.00 ~ $10.00 / Others

Options:

  • Interface:RS232/RS485/USB/LAN(Standard)
  • Dimensions(W*H*D):600*576*700mm
  • Graphic Display:VFD
  • FAN:Temperature control
  • Unit Net Weight:54KG+15KG*3(REF)
  • Operating Temperature:0℃~40℃
Get Latest Price

Basic Info

Model No. SPS75VDC12000W-2-13
Brand Name APM
place of origin China
Input Voltage 190~265VAC
Output Power Range 0~12000W
Warranty 2 years
Input Frequency 47~63Hz
Input Power Max 15KW
Power Factor ≥0.98
Output Voltage Range 0~75V
Output Current Range 0~180A
Height 13U
Show More

Product description

Product Introduction:

APM SYS series is built on the same power processing modules as the SP series dc power supply,only packed in a floor-standing cabinet with casters and expanding into higher power levels.Programmable dc power supply apm has voltage levels up to 225V , current levels up to 180A and power levels up to 12kW. It`s available in a 6U high cabinet and it`s Ok if customer need 12v variable power supply or 24v variable power supply.

There are more models,  40v Dc Source System,120v Dc Source System,150v Dc Source System,200v Dc Source System,600v Dc Source System, 800v Dc Source System for your reference.

Application Area:

This series is applicable to multiple sectors such as electric, lighting and aviation sectors and it could be applied to enterprise's  production test as well.


Product Features:

● With accurate voltage and current measurement capability.
● Coded Knob, multifunction keyboard.
● Standard RS232/RS485/USB communication interfaces, LAN ,and GPIB is optional.
● Remote sensing line voltage drop compensation.
● Equips with LIST waveform editing function.
● Use the Standard Commands for Programmable Instrumentation(SCPI) communication protocol.
● Have obtained CE certification.


Technical Specification:


ltem  MODEL  SYS75VDC12000W
 INPUT
1  Voltage  190~265VAC
2  Frequency  47~63Hz
3  Phase  3 Phase,4Wire+Groud/Y Connect
4  Max.Current  75A
5  Input Power Max  15kW
6  Power Factor
at 220VAC Input ,Full Load 		 0.98 Min. Active PFC
7  Ef?ciency  >88%  Max @Full Load and Units=4kW Model
 OUTNPUT (Parallel Mode)
8  Output Voltage  0~75V
9  Output Current  0~180A
10  Output Power  12kW Max
11  Load Regulation  Voltage  120mV
12  Current  0.18A
13  Line Regulation  Voltage  0.02%F.S.+30mV
14  Current  0.02%F.S.+15mA
15  Voltage Setting  Range  0~75V
16  Resolution  0.1mV
17  Accuracy  0.1%+0.1%F.S. at 0< Ouput Voltage =<75Vdc
 0.05%+0.05%F.S. at 75Vdc< Ouput Voltage =<1200Vdc
18  Current Setting  Range  0~180A
19  Resolution  10mA
20  Accuracy  0.1%+0.10%F.S
21  Ripple  Voltage  80mVp-p/16mVrms
22  Current  90mA(Full Range),15mA(TYP Value)
 MEASUREMENT (Parallel Mode)
23  Voltage Setting  Range  0~75V
24  Resolution  0.1mV
25  Accuracy

 0.1%+0.1%F.S. at 0< Ouput Voltage =<75Vdc
 0.05%+0.05%F.S. at 75Vdc< Ouput Voltage =<1200Vdc

26  Current Setting  Range  0~180A
27  Resolution  10mA
28  Accuracy  0.1%+0.10%F.S
 OUTNPUT (Series Mode)
29  Output Voltage  0~225V
30  Output Current  0~60A
31  Output Power  12kW Max
32  Load Regulation  Voltage  120mV
33  Current  0.18A
34  Line Regulation  Voltage  0.02%F.S.+30mV
35  Current  0.02%F.S.+15mA
36  Voltage Setting  Range  0~225V
37  Resolution  10mV
38  Accuracy  0.1%+0.1%F.S. at 0< Ouput Voltage =<75Vdc
 0.05%+0.05%F.S. at 75Vdc< Ouput Voltage =<1200Vdc
39  Current Setting  Range  0~60A
40  Resolution  0.1mA
41  Accuracy  0.1%+0.10%F.S
42  Ripple  Voltage  60mVp-p/12mVrms
43  Current  120mA(Full Range),20mA(TYP Value)
 MEASUREMENT (Series Mode)
44  Voltage Setting  Range  0~225V
45  Resolution  10mV
46  Accuracy  0.1%+0.1%F.S. at 0< Ouput Voltage =<75Vdc
 0.05%+0.05%F.S. at 75Vdc< Ouput Voltage =<1200Vdc
47  Current Setting  Range  0~60A
48  Resolution  0.1mA
49  Accuracy  0.1%+0.10%F.S
 Extra Function
50  Remote Sense  Range  5V(DC), Max. Total power less than rated power
51  Comm. Respondence.  50ms
52  Graphic Display  VFD
53  Operation Key Feature  Soft key,Numberic key,Rotary Knob
54  Rack mount Handles  Yes
55  FAN  Temperature Control
56  Protection Circuits  OCP, OVP, OPP, OTP,FAN
57  Interface  USB, RS485, RS232(Standard); LAN,GPIB(Option)
 Remote Control Input/Output signal characteristics
58  Remote Input signal  Not Support
59  Remote output signal  Not Support
 Environmental
60  Operating Temperature  0°C~40°C
61  Storage  Temperature  -20°C~70°C
62  Altitude  2000m
63  Relative Humidity  10%~90%, non-condensing
64  Temperature Coef?cient  100ppm/°C at Voltage, 300ppm/°C at Current
 Mechanical
65  Dimensions(W*H*D)  600.0*736.0*700.0 mm
66  Package Dimensions(W*H*D)  720.0*910.0*820.0 mm
67  Unit Net Weight  54kg+15kg*N(REF)
68  Accessories Weight  0.4kg
69  Shipping Weight  94kg+15kg*N(REF)
 Regulatory Compliance
70  CE Mark  Installation Overvltage Category II;Class II equipment;indoor use only.

*F.S. represents the maximum value of the output range.
*N stands for the number of installed power supply units,and N is greater than 1.
