In today's fast-paced and highly digitized world, ensuring a stable and reliable power supply is crucial for businesses and industries to maintain seamless operations. The UL Series Modular Online UPS, with its capacity range of 30-360kVA, is designed to meet these demands by providing an unparalleled level of power protection and efficiency. Utilizing cutting-edge technology and modular design, this Modular UPS system is the ideal choice for safeguarding critical infrastructure and ensuring continuous power availability.



The UL Series Modular Online UPS is engineered with a modular architecture that offers exceptional scalability and flexibility. This design allows users to easily configure and expand the system to match their specific power requirements. With an online double conversion topology and advanced DSP digital control technology, the Three Phase Online UPS can completely eliminate various grid issues, delivering a stable and pure sinusoidal power supply. The centralized bypass and N+X modular redundancy design further enhance the system's reliability, ensuring continuous operation even in the event of a module failure.



The UL Series Tower Online UPS is designed to provide high-quality power with minimal environmental impact. It features a wide input voltage range of 125-260Vac and a high input power factor of over 0.99, with input current harmonics (THDi) kept below 3%. The output power factor is 1.0, and the voltage distortion (THDu) is limited to ≤2% for linear loads and ≤5% for non-linear loads. The system's efficiency reaches up to 95%, making it not only energy-efficient but also environmentally friendly.



The UL Series UPS is equipped with a range of innovative features that set it apart from traditional UPS systems. The 3-level IGBT inverter technology ensures high power density and reliability. The system also supports battery cold start, allowing it to operate without utility power. Intelligent battery management with smart charging control optimizes battery life and performance. The 7-inch color touchscreen display provides a user-friendly interface for monitoring and managing the system, while the configurable rectifier, bypass, maintenance, and output switches offer added convenience.

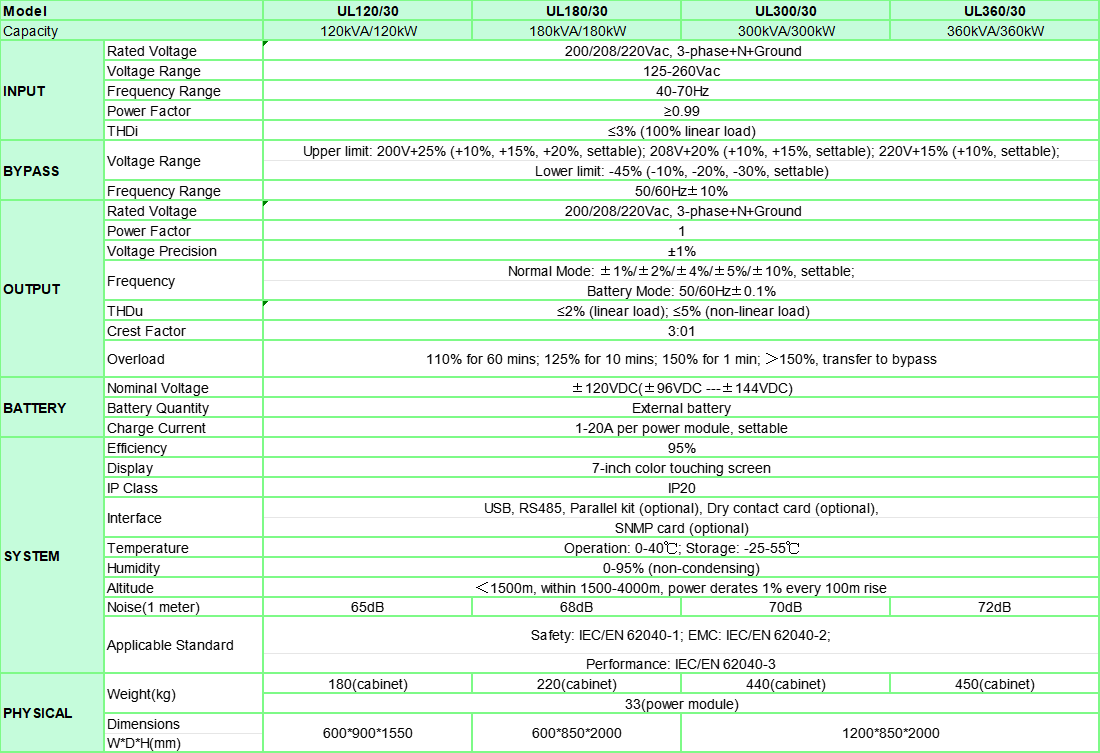

The UL Series UPS is available in four models—UL120/30, UL180/30, UL300/30, and UL360/30—with capacities ranging from 120kVA/120kW to 360kVA/360kW. Each model is designed to meet different power requirements and can be paralleled up to 8 units for increased capacity. The system's modular design allows for easy expansion and maintenance, making it a future-proof solution for growing businesses.



The UL Series UPS offers a wide range of connectivity options, including USB, RS485, and optional interfaces such as parallel kits, dry contact cards, and SNMP cards. This ensures seamless integration with various monitoring and control systems, allowing for remote management and real-time monitoring of the UPS status.



The UL Series UPS is built to withstand demanding operating conditions. It features an IP20 protection class and operates within a temperature range of 0-40°C, with storage temperatures ranging from -25°C to 55°C. The system is also designed to operate at altitudes up to 4000m, with power derating above 1500m. The noise level is kept to a minimum, ranging from 65dB to 72dB, depending on the model, ensuring a quiet operating environment.



The UL Series Modular Online UPS adheres to the highest international standards for safety, electromagnetic compatibility (EMC), and performance. It is certified to IEC/EN 62040-1 for safety, IEC/EN 62040-2 for EMC, and IEC/EN 62040-3 for performance, ensuring that it meets the most stringent requirements for power protection equipment.



The UL Series Modular Online UPS is more than just a power protection solution; it is a comprehensive and reliable system designed to meet the evolving needs of modern businesses. With its advanced technology, modular design, and superior power quality, the UL Series UPS ensures that your critical infrastructure remains protected and operational, regardless of the challenges posed by the power grid. Invest in the UL Series UPS today and experience the ultimate in power protection and efficiency.
