52ZY Agricultural Feeding System Brushed DC Motor (52mm Diameter)

1 / 6

52ZY Agricultural Feeding System Brushed DC Motor (52mm Diameter)

Name: 52ZY Agricultural Feeding System Brushed DC Motor (52mm Diameter)
Brand: DONGYANG CITY DONGZHENG MOTOR CO., LTD.
Rating: 4.2 (47 reviews)

$12.20

≥500 piece
$11.85

≥1000 piece
$10.45

≥5000 piece

Options:

12V ~ 400V DC
up to 100W
900 ~ 7000rpm

Get Latest Price

You might also like

80ZL1203: 80mm Diameter Game Road Animal Feeder High Torque Brushed DC Motor 12V/6V

1 piece (MOQ)

52ZY Agricultural Feeding System Brushed DC Motor (52mm Diameter)

1 piece (MOQ)

12V Swing Away Auger DC Right Angle Gear Motor

1 piece (MOQ)

60ZY 60mm Game Road Animal Feeder Brushed DC Motor 12V

1 piece (MOQ)

High Torque Brushed Feeder Gear Motor for Agricultural Feeding System, DC 12V

1 piece (MOQ)

45ZY 12V Brushed DC Micro Motor for Low Noise Applications" This title captures the key elements such as the model number (45ZY), voltage (12V), motor type (Brushed DC Micro Motor), and its low noise feature. However, if the focus is more on the applica

1 piece (MOQ)

Basic Info

Model No.
Brand Name
Warranty	1 year
Place of Origin	Zhejiang, China
Brand Name	DYD MOTOR; DONGZHENG MOTOR
Model Number	45ZY78; 45ZY68; 36JXF50K/36ZY57P; 80ZY
Use	BOAT, Car, Electric Bicycle, FAN, Home Appliance, Motion Control; Automation
Type	Tubular micro motor
Torque	Customer's needs
Construction	Permanent Magnet
Commutation	Brush
Protect Feature	IP44, IP54, IP55, IP65,IP68
Speed(RPM)	900 ~ 7000rpm
Continuous Current(A)	TBD
Efficiency	TBD
Motor type	Brushed DC Motor
Product Name	Game Road Animal Feeder Brushed DC Motor 12V
Color	Black or Customized
Components	Encoder; Brake; customized cable length; cable connector
Application	Road feeder, Game Feeder, Dear Feeder, Fish Feeder, Bird Feeder
diameter	45mm; 52mm
Gearbox Type	Planetary/spur/worm

Product description

Agricultural Automated Feeding System Brushed DC Motor

12V Low Volt Shaft Feeder Motor

Motor Type:

1) Brushed Tubular DC motor

2) Tubular DC planetary gear motor

Customized Voltage: 12V DC

Customized IP rating: IP44, IP54, IP65

Optional components: gearbox; magnetic/optical encoder; brake; cable connector Customized shaft & flange dimensions and technical specs. are available upon requested.

CE, UKCA, Reach and RoHS approval

Typical model 1:

52mm Diameter Game Feeder Brushed DC Motor 12V

Model: 52ZY

Motor body length 72mm

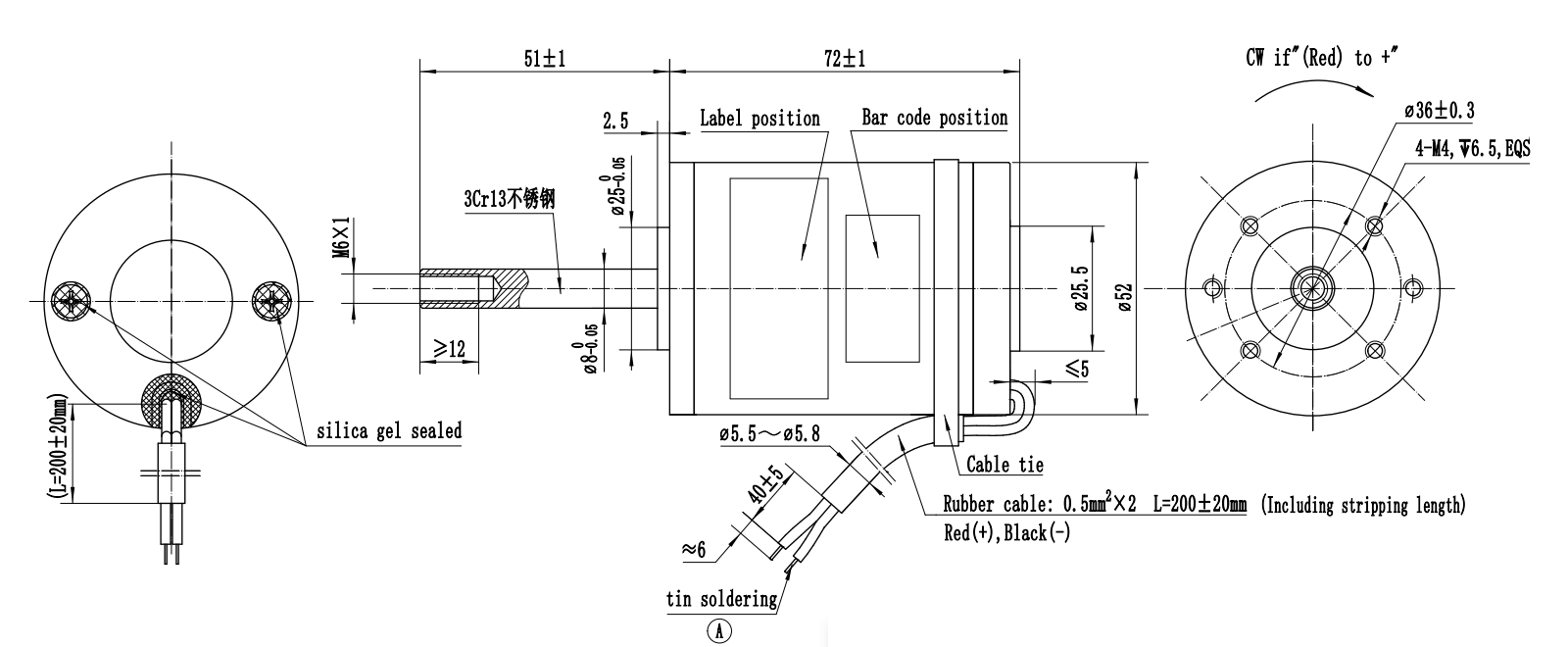

Dimensional drawing as follows:
