30m 35m Monopole Trasmission Tower

Product Description

type	33FT 35FT Octagonal Galvanized Fiber Optic Pole
Suit for	Electricity distribution
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	Usually Q355B/A572,minimum yield strength>=355n/mm2 Q235B/A36,minimum yield strength>=235n/mm2
tolerance of dimenstion	±2%
power	10KV-550KV
safety factor	support wind speed 160 Km/Hour 30 m /s
design capacity load	300~ 1000 Kg
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required
Joint of Poles	Insert mode,inner flange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Minimum yield strength	355 Mpa
Minimum ultimate tensile strength	490 Mpa
Max ultimate tensile strength	620 Mpa
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1







Company information

Jiangsu Xinjinlei Steel Industry Co., Ltd. is situated in the graceful and rich water countryside south of the Changjiang River, in the famous Pottery City-Yixing from 2001. It owns area of 70,000m2,the production area about 32,000m2, with the annual output capability over 35,000 ton. Our products put into market range in: 220kV Transmission Line Steel Pole, 500 kV Steel Tubular Tower, Substation Structure, Wind Power Pole, Telecommunication Pole etc. The company has nine departments which are Sales, Sell, Fabricate, Quality Control, Design, After Service, Commercial, Financial, Equipment department, and we have eight main workshops. The company has more than 280 staffs currently. We have own experienced team of engineers with 28 senior and junior technicians. The company has passed ISO9001:2000 quality management system certificate issued by Moody International Group, Uk. Our firm introduced whole set of good-sized numerical control hydraulic bending press(1000/12000, 24000/14000), flame cutting machine, automatic angle steel product line, lengthways cut machine, plate-flatted machine, drill machine, argon arc welding machine, hydraulic straightener, hydraulic planning machine, auto-closed up machine, gas metal arc welding machine, crane hoist etc.at the same time, we have corresponding testing equipment. In the full conviction that: Superior enterprise built by the high efficacious works, high efficacious works based on scientific management, and scientific management taking its source at excellent staffs, with the business idea of "your contentment is our pursuing", we should wholeheartedly cooperate with craft brothers at home and abroad for the common advancement.

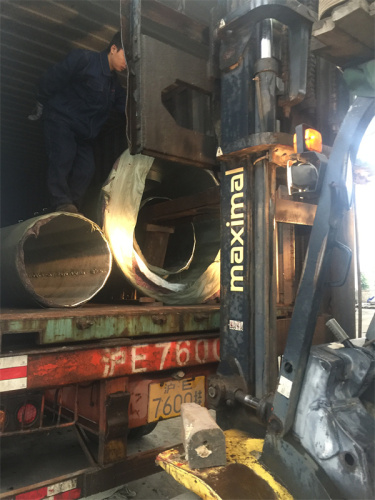

Package &shipping





Testing



To assure our products qualified ,we take steps as follows :

1. Management team : We have employed the experienced senior experts to take charge of the whole management ,especially the technical management and quality management

2.Introducing ISO management :We are aware of ISO 9001:2008 certificate

3.QC Inspection:It is our company policy that all the finished products should be inspected by our specialized QC in every manufacture step and before each shipment



FAQ

1. Price Term: FOB, CFR or CIF.The price includes pole shaft, based plate, cross arm and anchor part.Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, then tell us quantity of your order so that we can calculate the local transport charge and sea freight

2. MOQ: 1 set for Customized

3. Payment: Typically 30% by T/T as a deposit,balance by T/T or L/C at sight before shipment. Other payment way can be negotiated

4. Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit

5 Warranty : 25 years

6 Application:Electric Transmission



Our service

1. Reply your inquiry in 24 working hours

2. Experienced staffs answer all your questions in fluent English

3. Customized design is available. UEM&UBM are welcomed

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff

5. Special discount and protection of sales are provided to our distributor

6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity

7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order

8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.

Welcometo contact us or visit our company
