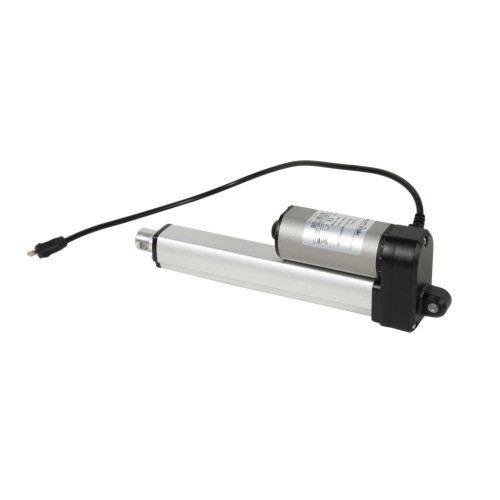

Electric Fast Gear Motor 24V Linear Actuator
Electric Fast Gear Motor 24V Linear Actuator
Electric Fast Gear Motor 24V Linear Actuator
Electric Fast Gear Motor 24V Linear Actuator

Video

1 / 4

Electric Fast Gear Motor 24V Linear Actuator

Get Latest Price

Basic Info

Model No. UD200B
Brand Name UPLIFTEC
warranty period 3years
place of origin China
use Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification Ce, Ul
Types of Gear Motor, Micro Motor, Servo Motor, Tubular Motor, Brushless Motor, Brush Motor
structure Permanent Magnet, Series Wound, Shunt Wound
Reversing Brush
Protection characteristics Drip-Proof, Explosion-Proof, Totally Enclosed, Waterproof
Motor efficiency Ie 1, Ie 2, Ie 3, Ie 4
Certification CE
IP Rating IP65
Limit Switch Built-in
Voltage 12/24 VDC
Standard Stroke 100mm
Max Thrust 2000N
Duty Cycle 10%
Protection Class IP65
Max. Load 2,000N
No- Load Speed 5 ~ 37mm/s
Full-Load Speed 4 ~ 22mm/s
Noise Level ≤50dB
Ambient Temperature -35℃ ~ +50℃
Show More

Product description

U200B is a very compact actuator designed for industrial, medical application. It is very small, and its min. installation space is 108mm+ stroke.

Product Parameter

Voltage
12/24 VDC
Max. Load
2,000N
No- Load Speed
5 ~ 37mm/s
Full-Load Speed
 4 ~ 22mm/s
Duty Cycle 10%
Protection Class
IP65
Noise Level
≤50dB
Ambient Temperature
 -35℃ ~ +50℃


Parameters
CODE RATED LOAD(N) RATED CURRENT(A) RATED SPEED(MM/S)
  PUSH PULL   NO LOAD (32VDC) PULL LOAD(24VDC)
STAND MOTOR (5200RPM)
A 2000 2000 2.2 7.0 6.0
B 1500 1500 2.2 9.3 8.0
C 1000 1000 2.2 14.0 12.0
D 500 500 2.2 28.0 24.0
E 250 250 2.2 43.0 36.0
FAST MOTOR(6600RPM)
F 2000 2000 2.8 9.0 7.5
G 1500 1500 2.8 12.0 10.3
H 1000 1000 2.8 18.0 15.0
I 500 500 2.8 35.0 30.0
J 250 250 2.8 55.0 46.0
Product Display

Electric Linear Actuator 12V Tracker Micro Waterproof DC Linear Actuator

Product Application

Electric Linear Actuator 12V Tracker Micro Waterproof DC Linear Actuator




The company has introduced advanced linear actuator research and development technology and domestic talents in the field, and has applied for dozens of patent technologies, some of which have been successfully applied in office, home, solar energy and other domain. The company has passed the national ISO9001 quality system, and the products have been awarded CE, TUV, UL, BIFMA5.5 and other certificates. In order to provide good customer service, we have purchased a large number of all kinds of experimental and testing equipment. At present, we have more than 10 R&D engineers in machinery, electronics, structure, products and other fields. Our long-term goal is to satisfy the market customers and keep improving and doing well in technical research and development. The company has its own independent brand and trademark, and has established a sales team of domestic and foreign trade with foreign consultants. At present, its products have been exported to more than 30 countries and regions, especially to Europe, America and Australia.
UPLIFT leads the way in creating great experiences by offering a range of height adjustable desk, linear actuator and sheet metal products and services designed to help people reach their full potential.Our main products are Electric Standing Desk,Pneumatic Standing Desk,Hand Crank Standing Desk,Desk Lifting Columns,Desk Controller,Desk Control Boxes,Desk Accessories,Home Electric Linear Actuator,Industrial Electric Linear Actuator,Standing Desk Frame,Height Adjustable Desk,Adjustable Height Desk,Electric Adjustable Height Desk,File Cabinet and so on.
Our comprehensive portfolio anchored by UPLIFTEC brand, which registered a trademark with 5 patent applications in China. Together with our partners, we design spaces to help people work, learn and heal.
We drive sustainable social, economic and environmental change through our decisions and actions. At UPLIFT,we don't just do what's right, we do what's best - for people and for the planet.

Company Profile

Suzhou Uplift Intelligent Technology Co., LTD., founded in 2018, is a scientific and technological company specializing in the research, development, production and sales of linear

View More
Our Team
Exhibition
Factory Display
FAQ
Q: What if I need an actuator using a Stroke length or Force that you don't stock? A: We have many other actuator configurations available, and we'd be happy to make a Custom Order for you. Please visit our Custom Orders section or contact us with your requirements. Q: How can I mount your linea
