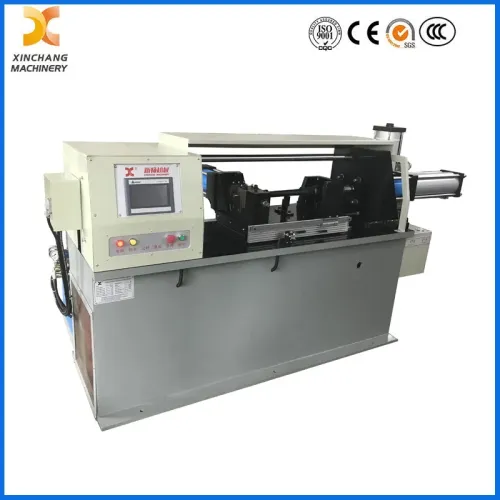

Friction Welding Machine for Transmission Shaft Applications
Get Latest Price
You might also like
Basic Info
| Electric Current | Ac |
|---|---|
| Type | Friction Welding |
| Current | Alternating Current |
| Workpiece | Drill Rod |
| Clamp Force | Hydraulic |
Show More
Product description
- Overview
- Product Description
- Product Parameters
- Detailed Photos
- Company Profile
- FAQ
Overview
Basic Info.
Electric Current
AC
Type
Friction Welding
Current
Alternating Current
Workpiece
Drill Rod
Clamp Force
Hydraulic
Application
Drill Rod, Drill Pipe
Transport Package
at Customer's Requrest
Specification
export standard
Trademark
xinchang
Origin
Ningbo China
HS Code
8515809090
Production Capacity
200 Sets /Month
Product Description
Metal Bush Welding Flange Bush Friction Welding Machine for Transmission Shaft?
Product Description
According to different parts, we have different models, following is one of model data.
Product Parameters
| Technical Parameters of Y?Series Friction Welding Machine | |||||
| Y120-C | Y120-D | ||||
| Product??Name | Continuous-drive Friction Welding Machine | Unit | Product??Name | Continuous-drive Friction Welding Machine | Unit |
| Model? | Y120-C | ? | Model? | Y 120-D | ? |
| Max. Upset Force | 800 | Kg | Max. Upset Force | 800 | Kg |
| Spindle Rotating Speed | 2800 | r/min | Spindle Rotating Speed | 2800 | r/min |
| Weldment Diameter | 5--12 | mm | Weldment Diameter | 5--12 | mm |
| Rotary Clamp Material Length | 5-120 | mm | Rotary Clamp Material Length | 5-120 | mm |
| Mobile Clamp Material Length | 3-400 | mm | Mobile Clamp Material Length | 5-120 | mm |
| Max Stroke of Sliding Table | 125 | mm | Max Stroke Of Sliding Table | 125 | mm |
| Spindle Motor Power | 4-7.5 | KW | Spindle Motor Power | 4-7.5 | KW |
| Max. Pressure | 8 | Kg | Max. Pressure | 8 | Kg |
| Productivity | 200-400 | Pcs/h | Productivity | 200-400 | Pcs/h |
| Weight | 0.8 | Ton | Weight | 0.8 | Ton |
| Main Unit Dimension | 1300X550X1200 | mm | Main Unit Dimension | 1300X550X1200 | mm |
| Y150-C | Y150-D | ||||
| Product Name | Continuous-drive friction welding machine | Unit | Product Name | Continuous-drive friction welding machine | Unit |
| Model? | Y150-C | ? | Model? | Y150-D | ? |
| Max. Upset Force | 8 | Ton | Max. Upset Force | 8 | Ton |
| Spindle Rotating Speed | 2500 | r/min | Spindle Rotating Speed | 2500 | r/min |
| Weldment Diameter | 8--20 | mm | Weldment Diameter | 8--20 | mm |
| Rotary Clamp Material Length | 3-200 | mm | Rotary Clamp Material Length | 3-200 | mm |
| Mobile Clamp Material Length | 5-500 | mm | Mobile Clamp Material Length | 3-200 | mm |
| Max Stroke Of Sliding Table | 200 | mm | Max Stroke of Sliding Table | 200 | mm |
| Spindle Motor Power | 7.5-11 | KW | Spindle Motor Power | 7.5-11 | KW |
| Max. Pressure | 8 | Kg | Max. Pressure | 8 | Kg |
| Productivity | 300 | Pcs/h | Productivity | 300 | Pcs/h |
| Weight | 1.5 | Ton | Weight | 1.5 | Ton |
| Main Unit Dimension | 2000X650X1200 | mm | Main Unit Dimension | 2000X650X1200 | mm |
| Model | Maximum upset force (kilonewton) |
Maximum spindle speed (rpm) |
Welding piece diameter (medium carbon steel) mm |
Rotating fixture (clamping length) mm |
Mobile fixture (clamping length) mm |
Slip fit Maximum stroke mm |
Total power (KW) |
Productivity (piece/hour) | Overall dimensions? | weight ton |
Remarks |
| Z2.5 | 25 | 3000 | 4-14 | 50-200 | 50-420 | 200 | 12 | 100-320 | 2200*195*1250 | 2.8 | Small shaft and tube parts, etc |
| Z4 | 40 | 2500 | 6-16 | 50-200 | 50-420 | 200 | 15 | 100-250 | 2200*195*1250 | 3.2 | Small shaft and tube parts, etc |
| Z4Z | 40 | 600 | 6-16 | 50-150 | 50-150 | 200 | 15 | 100-300 | 2200*195*1250 | 3 | Copper aluminum dedicated |
| Z10 | 100 | 2200 | 8-22 | 50-200 | 50-420 | 200 | 15 | 100-220 | 2200*195*1250 | 3.5 | Small shaft and tube parts, etc |
| Z15 | 150 | 2000 | 10-30 | 50-250 | 50-700 | 310 | 25 | 100-220 | 3000*2800*1450 | 4.5 | Medium sized shaft and tube parts, etc |
| Z20 | 200 | 1800 | 10-30 | 50-250 | 50-700 | 310 | 28.5 | 100-200 | 3000*2800*1450 | 5 | Medium sized shaft and tube parts, etc |
| Z20Z | 200 | 450 | 12-40 | 50-200 | 50-180 | 310 | 28.5 | 100-200 | 3000*2800*1450 | 4.8 | Copper aluminum dedicated |
| Z20L | 200 | 1800 | 12-35 | 50-250 | 50-no limit | 310 | 28.5 | 100-150 | 3000*2800*1450 | 5.5 | Long shaft parts and tube parts, etc |
| Z25 | 250 | 1800 | 12-40 | 50-250 | 60-700 | 310 | 32 | 100-180 | 3000*2800*1450 | 5.5 | Medium sized shaft and tube parts, etc |
| Z25Z | 250 | 450 | 14-45 | 50-200 | 50-180 | 310 | 32 | 100-180 | 3000*2800*1450 | 5.3 | Copper aluminum dedicated |
| Z25L | 250 | 1800 | 14-40 | 50-250 | 60-no limit | 310 | 32 | 100-120 | 3000*2800*1450 | 5.8 | Long shaft parts and tube parts, etc |
| Z30 | 320 | 1450 | 14-45 | 50-300 | 70-800 | 320 | 40 | 100-150 | 3400*2900*1500 | 6.5 | Medium sized shaft and tube parts, etc |
| Z30Z | 320 | 380 | 16-50 | 50-200 | 70-200 | 320 | 40 | 100-120 | 3400*2900*1500 | 6.2 | Copper aluminum dedicated |
| Z30L | 320 | 1450 | 16-45 | 50-300 | 70-no limit | 320 | 47 | 50-100 | 3400*2900*1500 | 6.8 | Long shaft parts and tube parts, etc |
| Z30A | 150 | 700 | 16-55 | 50-300 | 70-no limit | 320 | 47 | 50-150 | 3400*2900*1500 | 6.5 | Special for bearing shells |
| Z50A | 500 | 1200 | 16-55 | 100-380 | 250-1400 | 400 | 92.75 | 20-80 | 5500*2800*2200 | 16.5 | Welding of pipe and shaft parts |
| Z63A | 630 | 1000 | 35-63 | 100-380 | 250-1400 | 400 | 112.75 | 20-60 | 5500*2800*2200 | 16.5 | Welding of pipe and shaft parts |
| Z80A | 800 | 1000 | 40-75 | 100-380 | 250-1400 | 400 | 112.75 | 20-60 | 5500*2800*2200 | 17 | Welding of pipe and shaft parts |

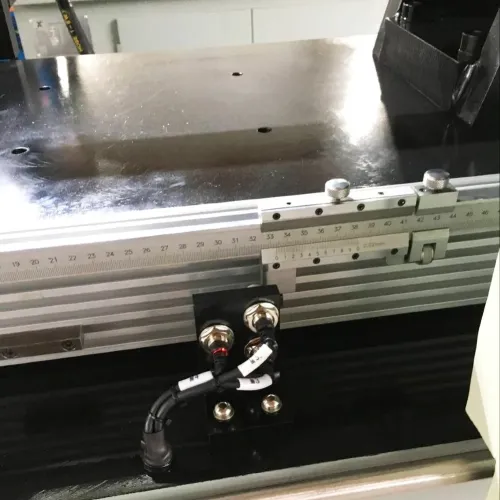

Detailed Photos
Company Profile
We,?Ningbo Xin Chang Machinery Co.,Ltd?are a professional designer and manufacturer in friction welding machine, resistance welding machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.???
Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.
?
Our main products are Heat exchanger equipment, Friction welding machine, spot welding machine, projection welding machine, butt welding machine, seam welding machine, multi head welding machine for wire mesh, and other various special welding machine for metal connection in different industries.
?
We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
