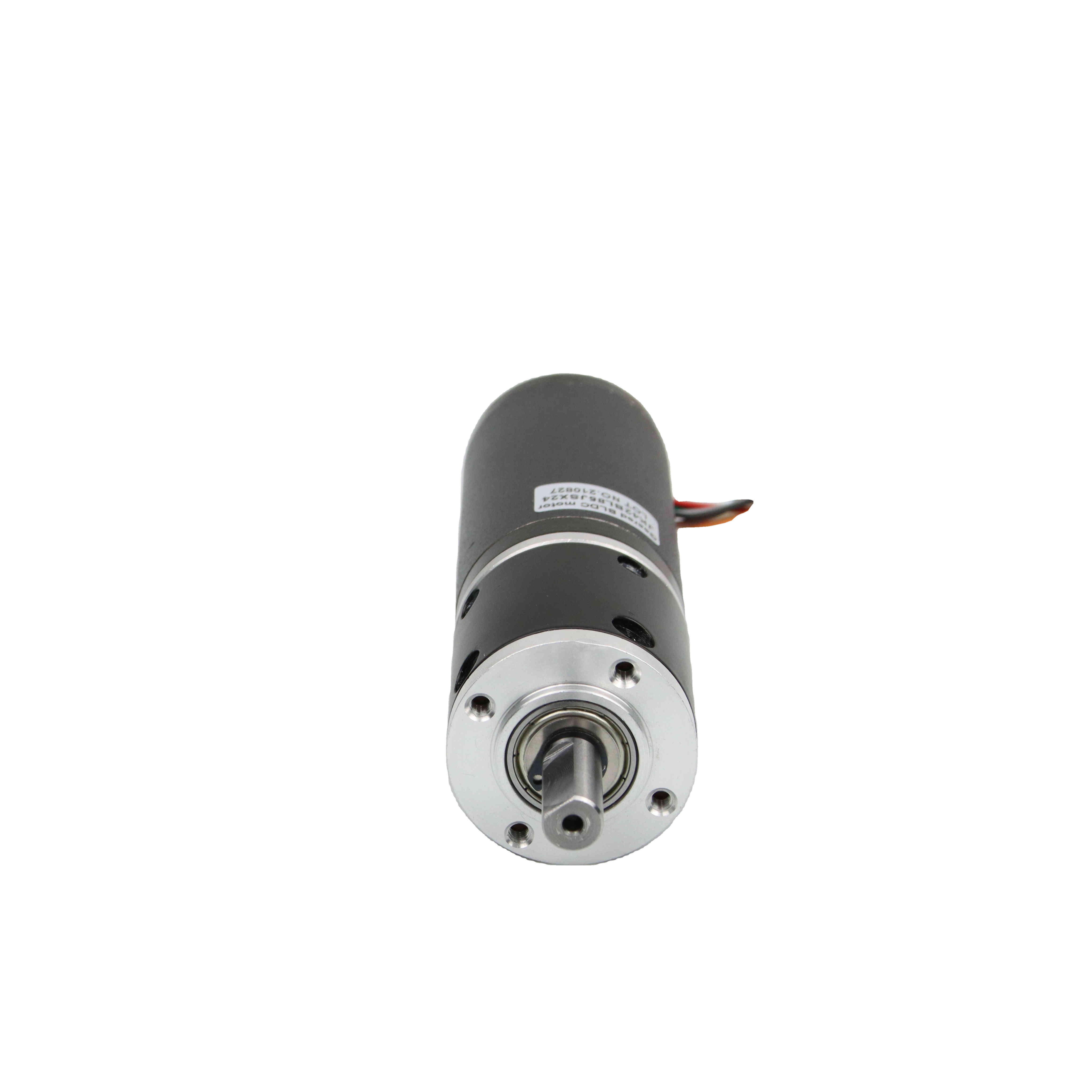

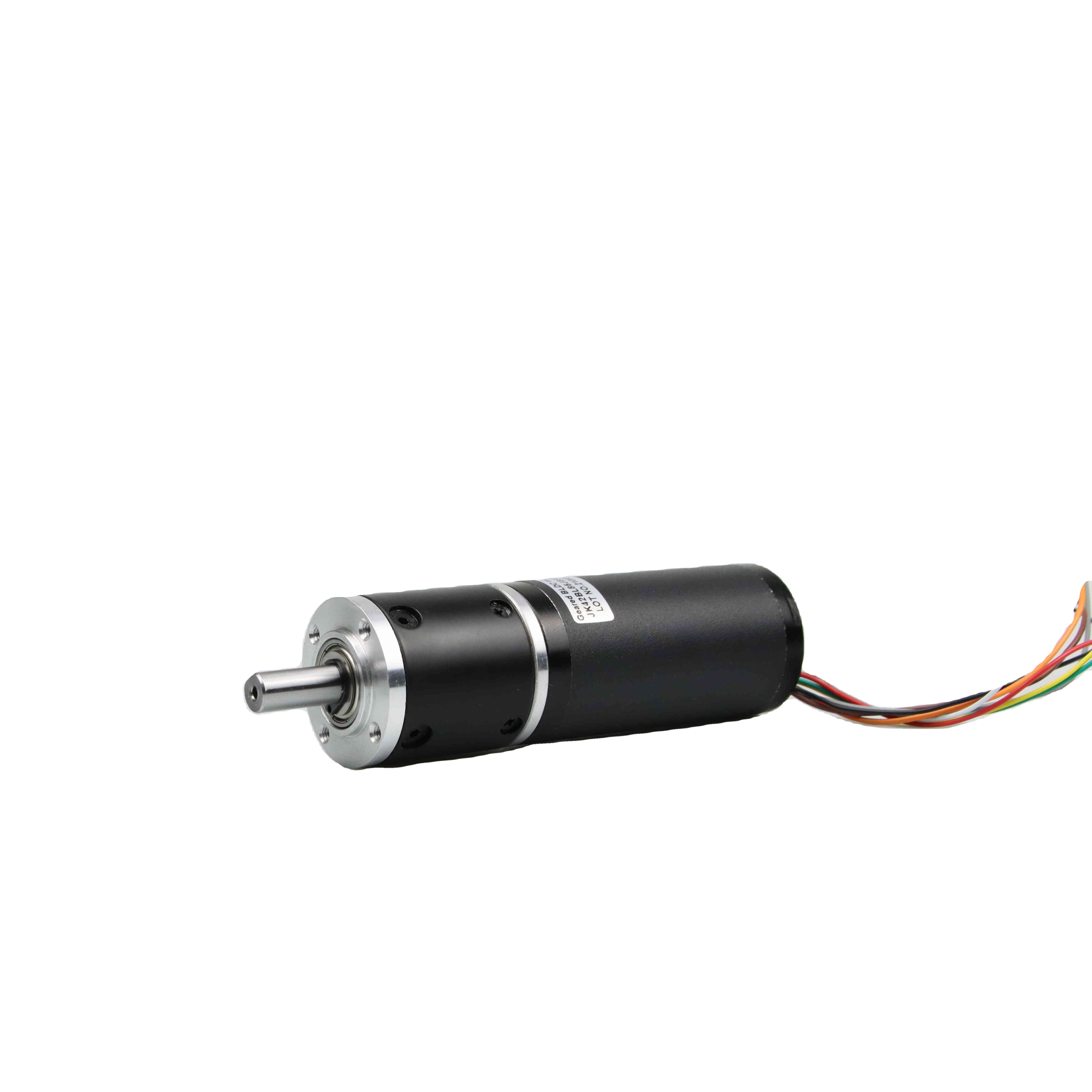

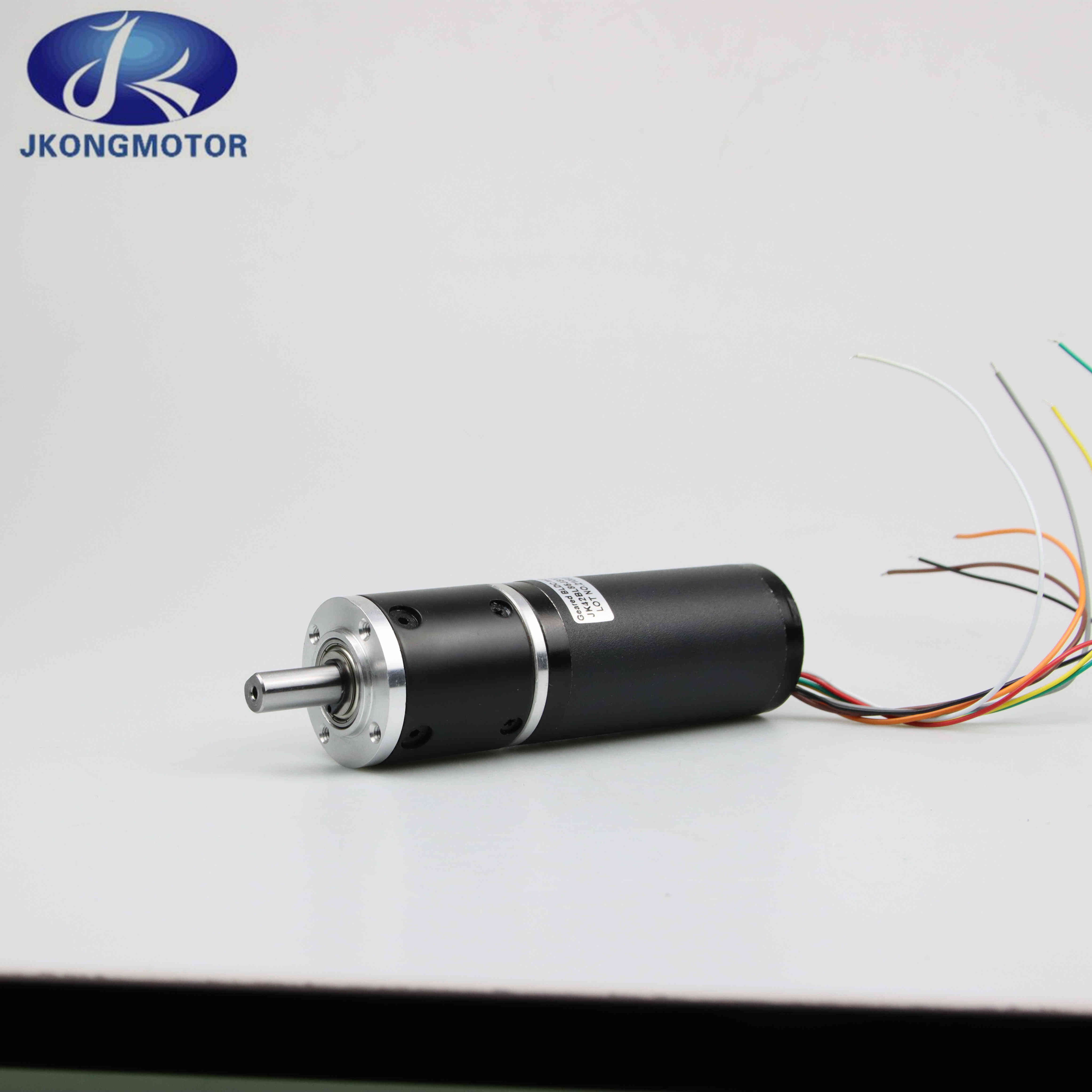

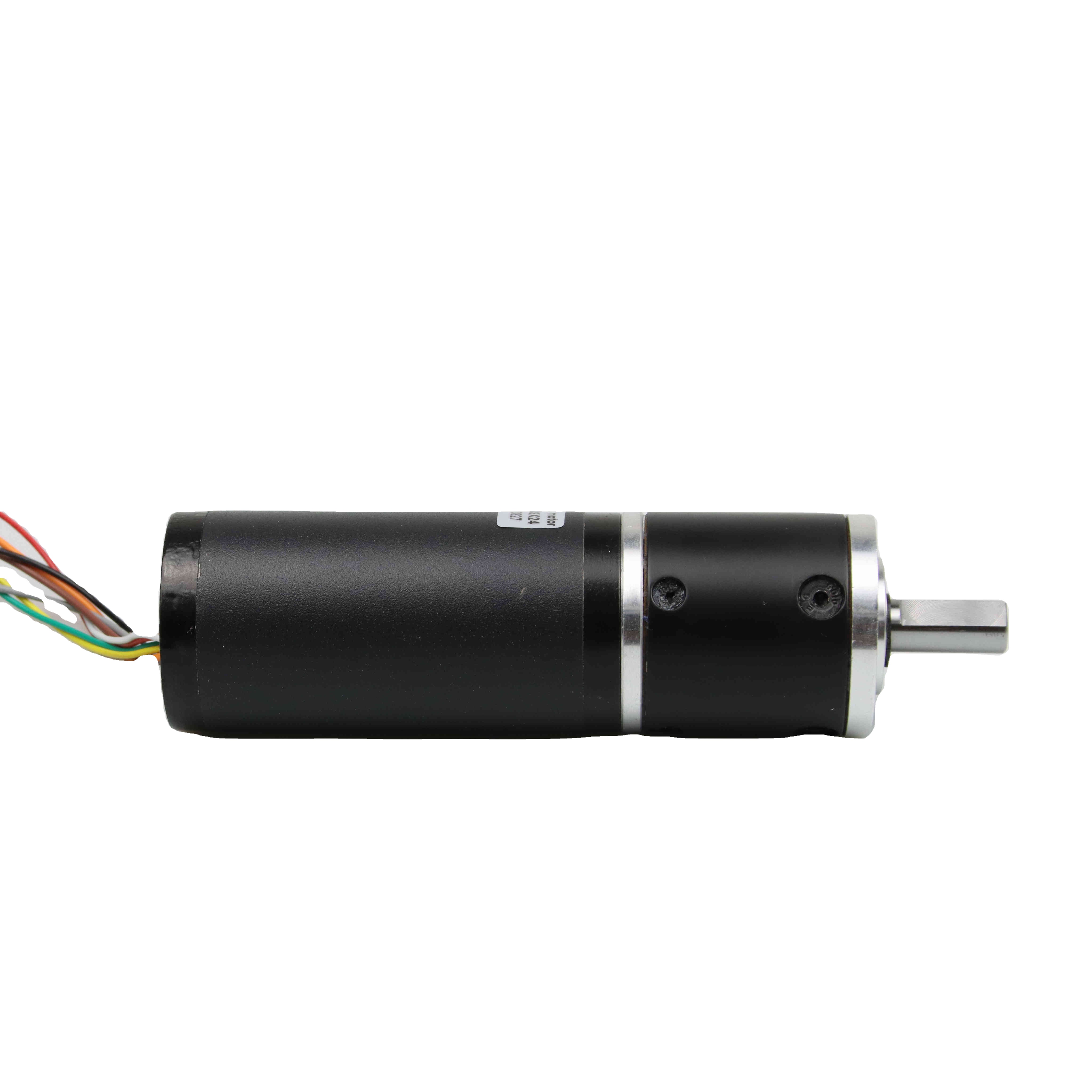

High Performance 24V 62W 4000rpm BLDC Motor with Planetary Gearbox - JK42BL85
High Performance 24V 62W 4000rpm BLDC Motor with Planetary Gearbox - JK42BL85
High Performance 24V 62W 4000rpm BLDC Motor with Planetary Gearbox - JK42BL85
High Performance 24V 62W 4000rpm BLDC Motor with Planetary Gearbox - JK42BL85
High Performance 24V 62W 4000rpm BLDC Motor with Planetary Gearbox - JK42BL85
High Performance 24V 62W 4000rpm BLDC Motor with Planetary Gearbox - JK42BL85
High Performance 24V 62W 4000rpm BLDC Motor with Planetary Gearbox - JK42BL85

Video

1 / 7

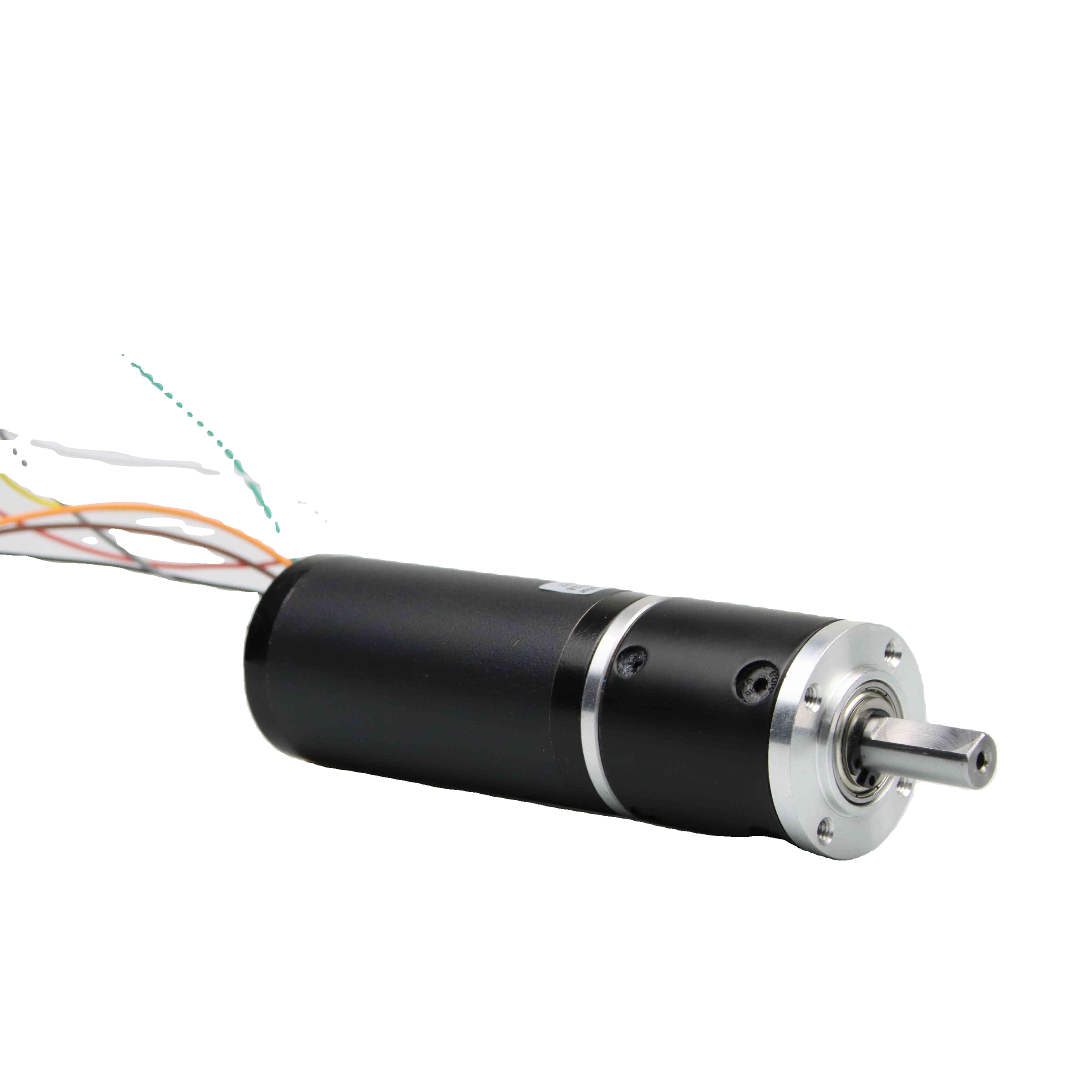

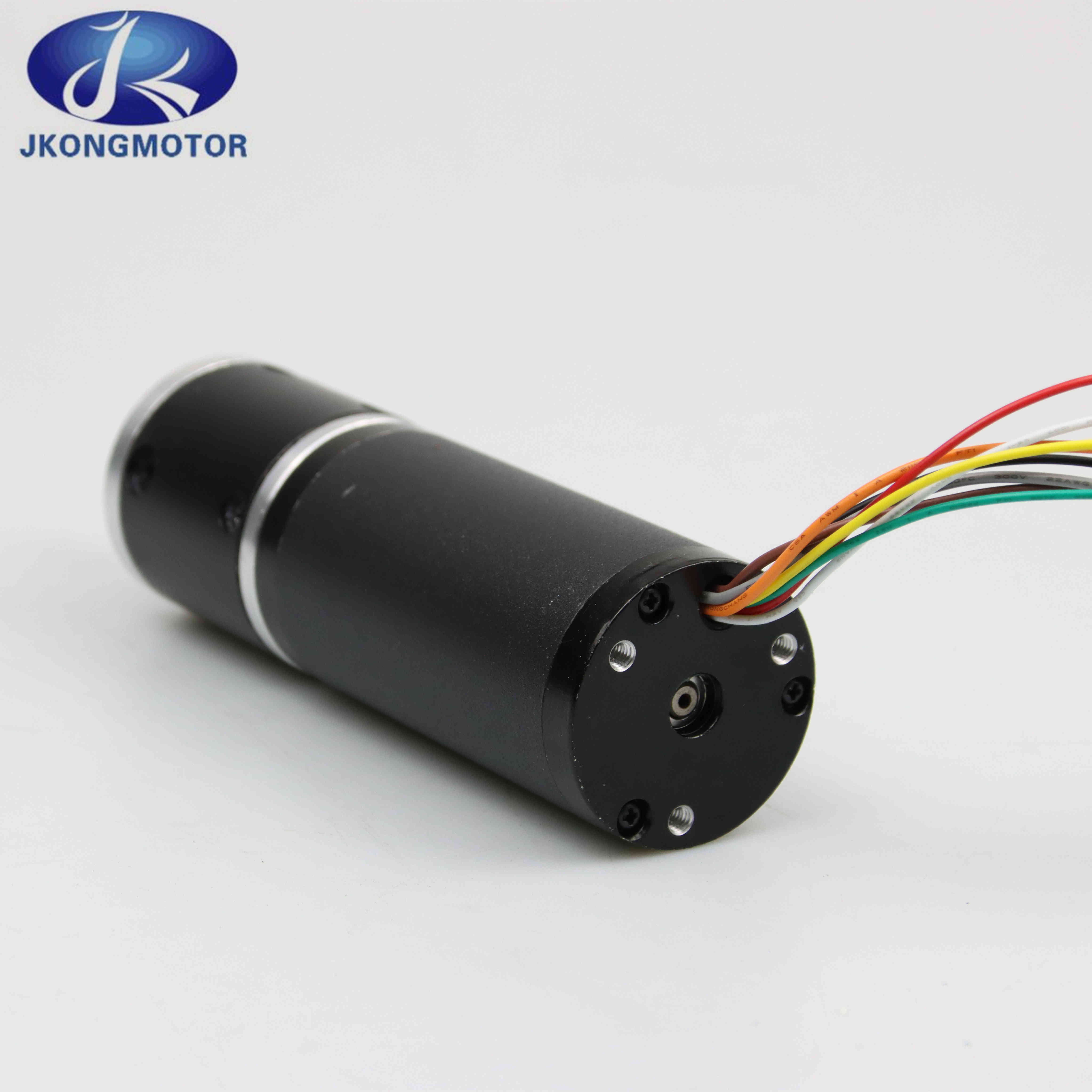

High Performance 24V 62W 4000rpm BLDC Motor with Planetary Gearbox - JK42BL85

  • $30.00

    ≥10 piece

  • $18.00

    ≥100 piece

Options:

  • 24V
  • 62w
  • 4000rpm
Get Latest Price

Basic Info

Model No.
Brand Name
Warranty 1year
Place of Origin Jiangsu, China
Brand Name Jkongmotor
Model Number JK42BL85JSX24
Use Home Appliance, Cosmetic instrument, SMART HOME, Industrial Kitchen Equipments
Type bldc motor
Torque 0.15N.m
Construction Permanent Magnet
Commutation Brushless
Protect Feature customized
Speed(RPM) 4000rpm
Continuous Current(A) 7.5A
Efficiency Ie 3
Product Name Brushless DC Motor
Motor Diameter 42mm
Motor length 85mm
Poles No. 8poles
Rated Voltage 24v
Rated speed 4000rpm
Rated Power 62w
Current 7.5A
sensor Honeywell or encoder
Related Products bldc driver or gearbox reducer
Show More

Product description

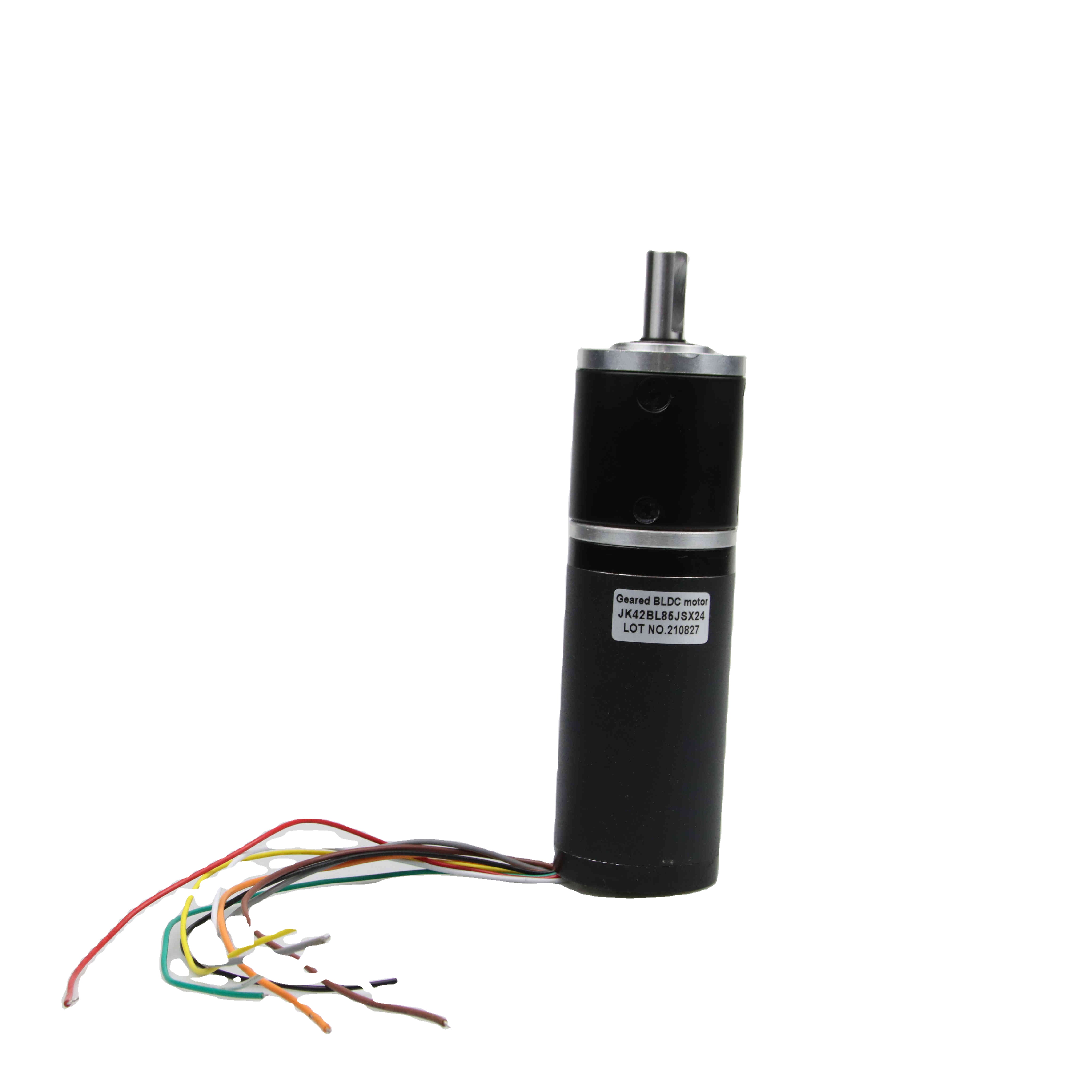

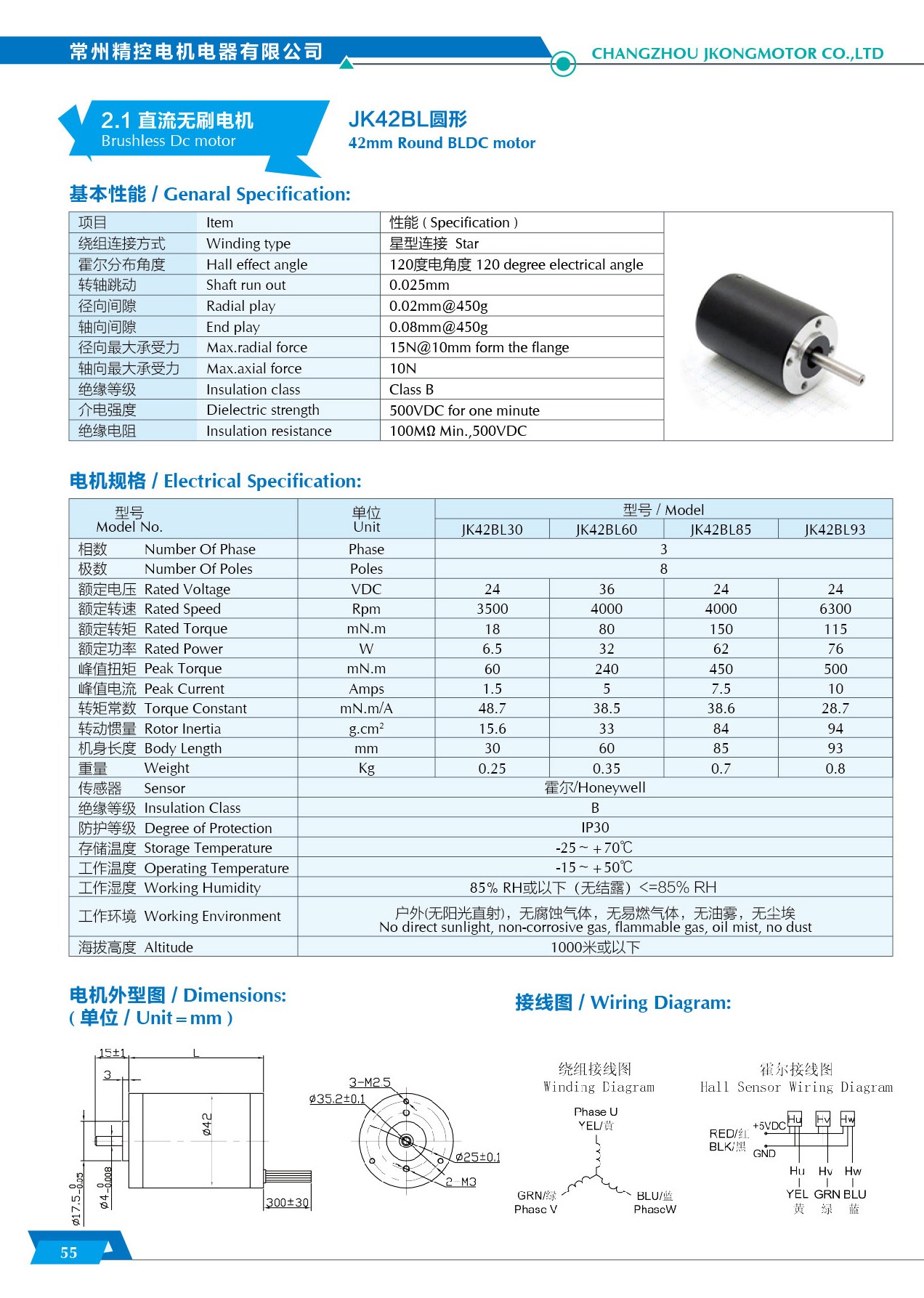

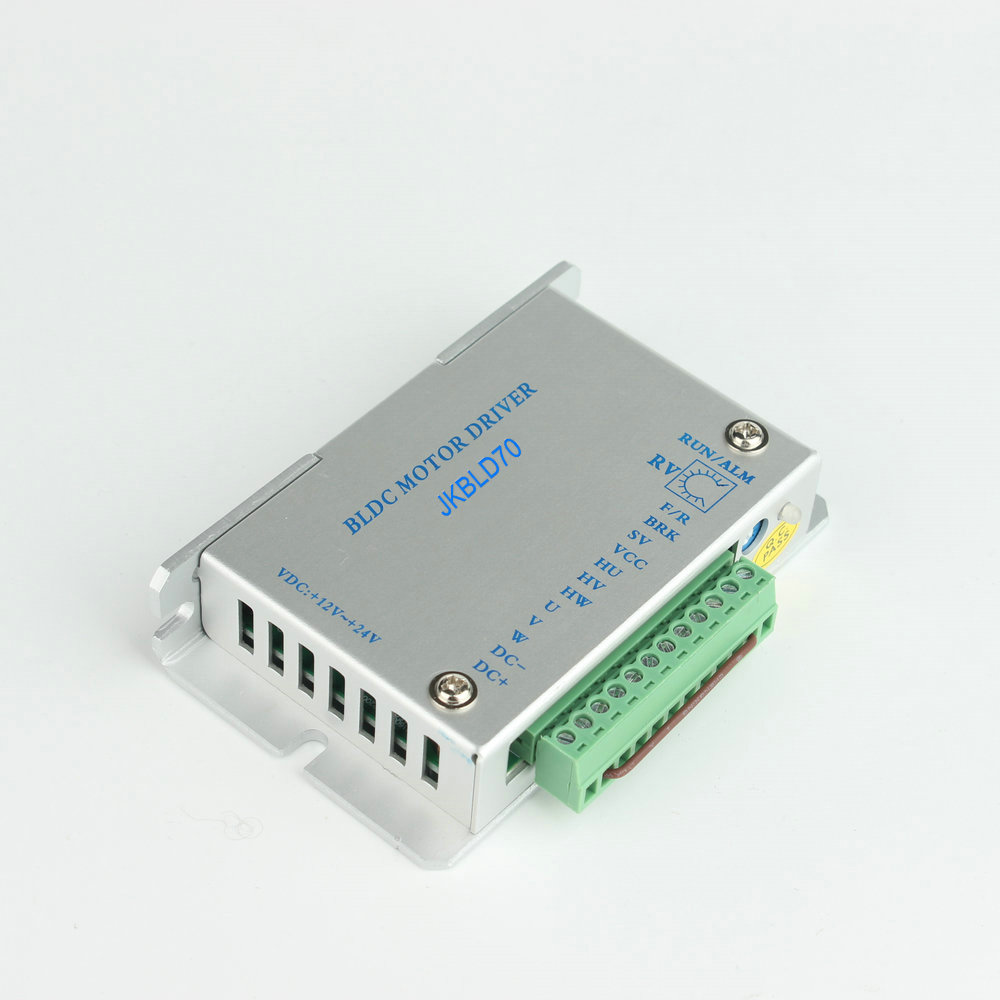

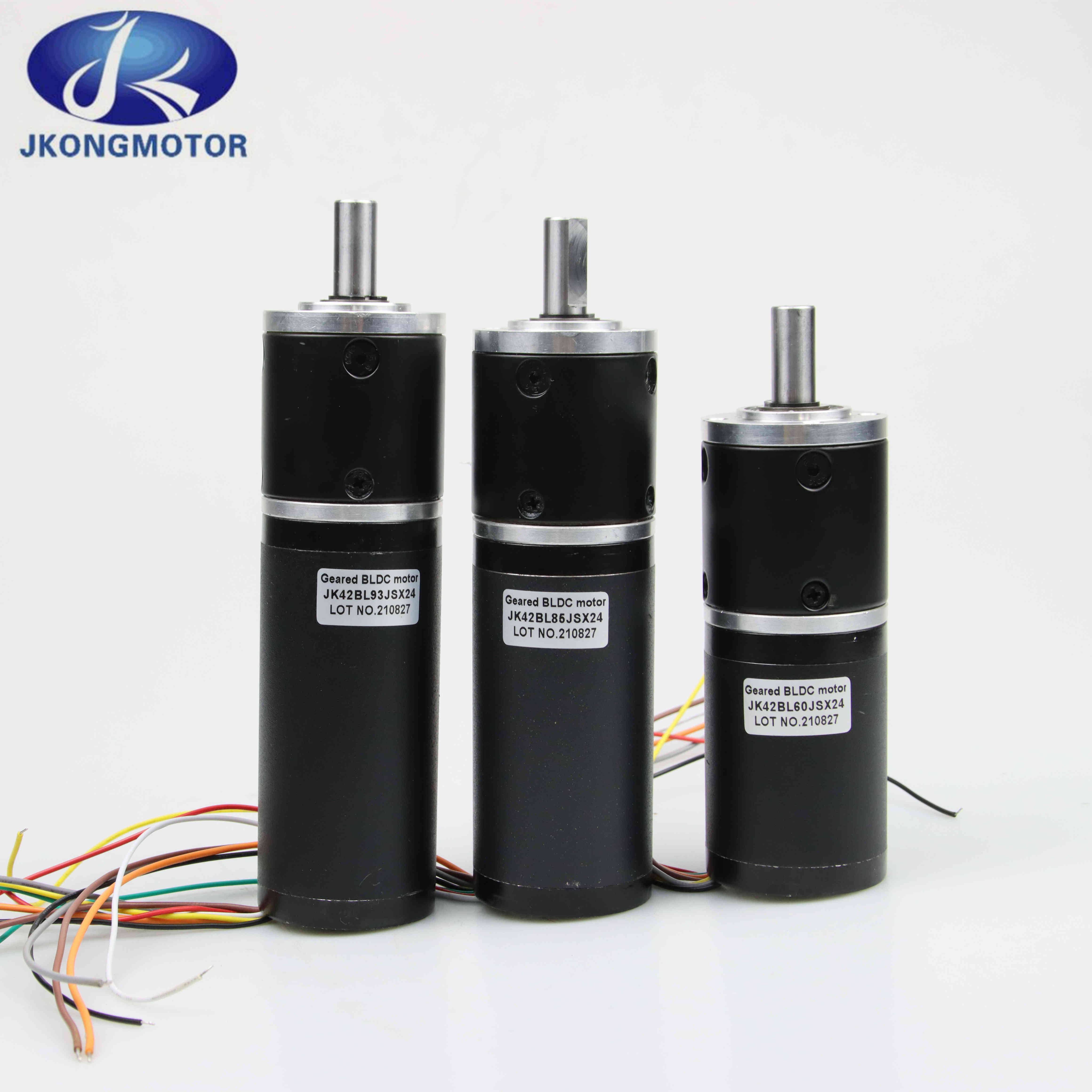

Product Name: Brushless DC Motor Number of Phase: 3 Phase Number of Poles: 8 Poles Rated Voltage: 24V Rated Speed: 4000RPM Rated Torque: 0.15N.m Peak Current: 7.5A Rated Power: 62W Body length: 85mm Weight: 0.7KG With 24:1 Planetary Gearbox Reducer, the speed is about 130rpm, the torque is about 2.8N.m. The Matched driver is JKBLD70.

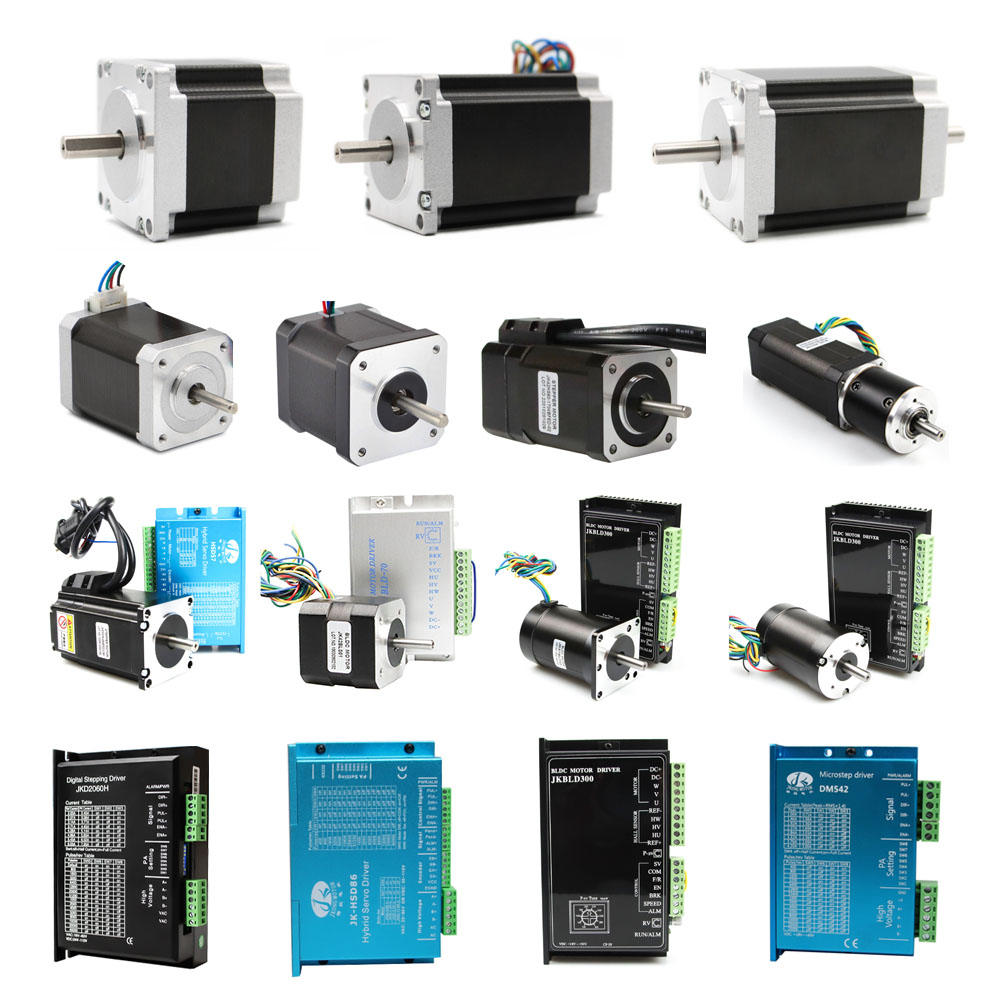

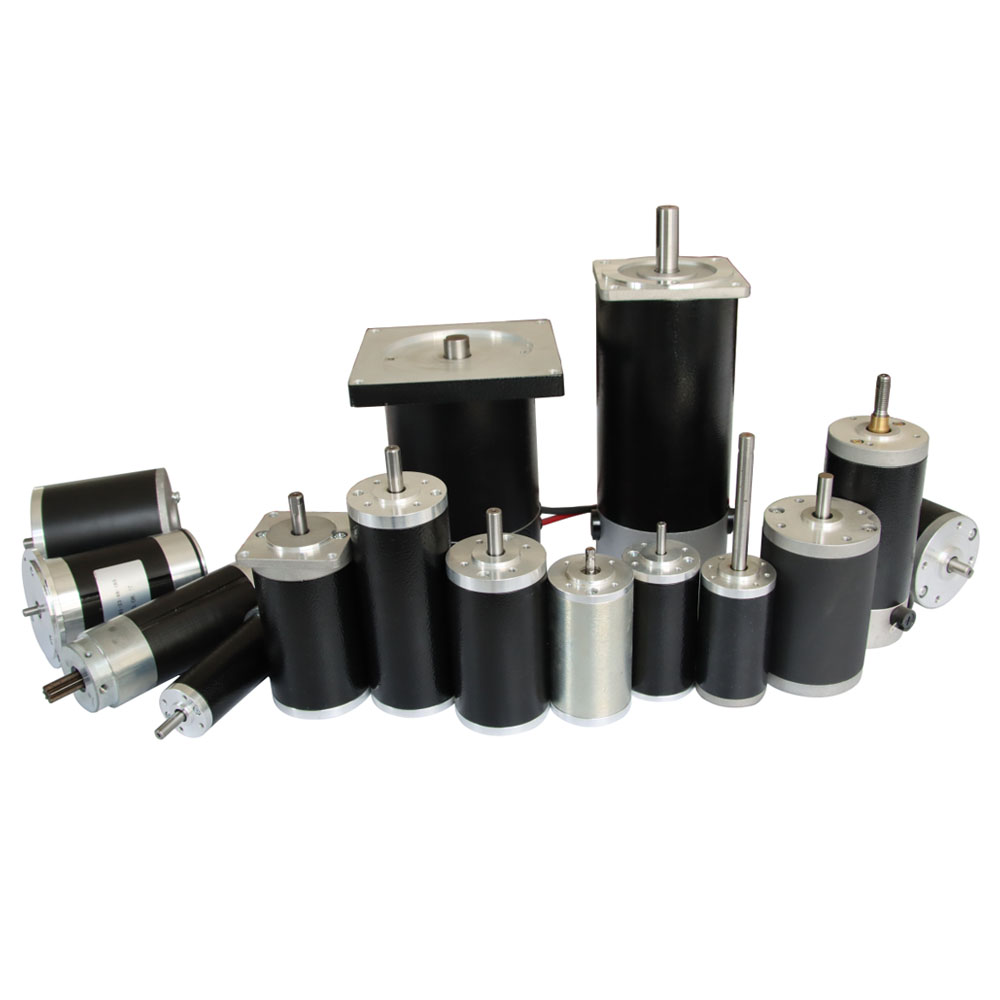

Full Products of Brushless DC Motors
Product Series
Poles No.
Rated Voltage
Rated Speed
Rated Torque
Rated Power
Motor Length
42mm BLDC Motor
8
24v
4000rpm
0.0625~0.25N.m
26~105w
41~100mm
57mm BLDC Motor
4
36v
4000rpm
0.055~0.44N.m
23~184w
37~107mm
60mm BLDC Motor
8
48v
3000rpm
0.3~1.2N.m
94~377w
78~120mm
80mm BLDC Motor
4
48v
3000rpm
0.35~1.4N.m
110~440w
78~138mm
86mm BLDC Motor
8
48v
3000rpm
0.35~2.1N.m
110~660w
71~138.5mm
110mm BLDC Motor
8
310v
3000rpm
1.65~6.6N.m
518~2073w
83~173mm
130mm BLDC Motor
10
310v
3000rpm
2.39~11.94N.m
750~2500w
115~190mm
Above only for representative products, products of special request can be made according to the customer request.

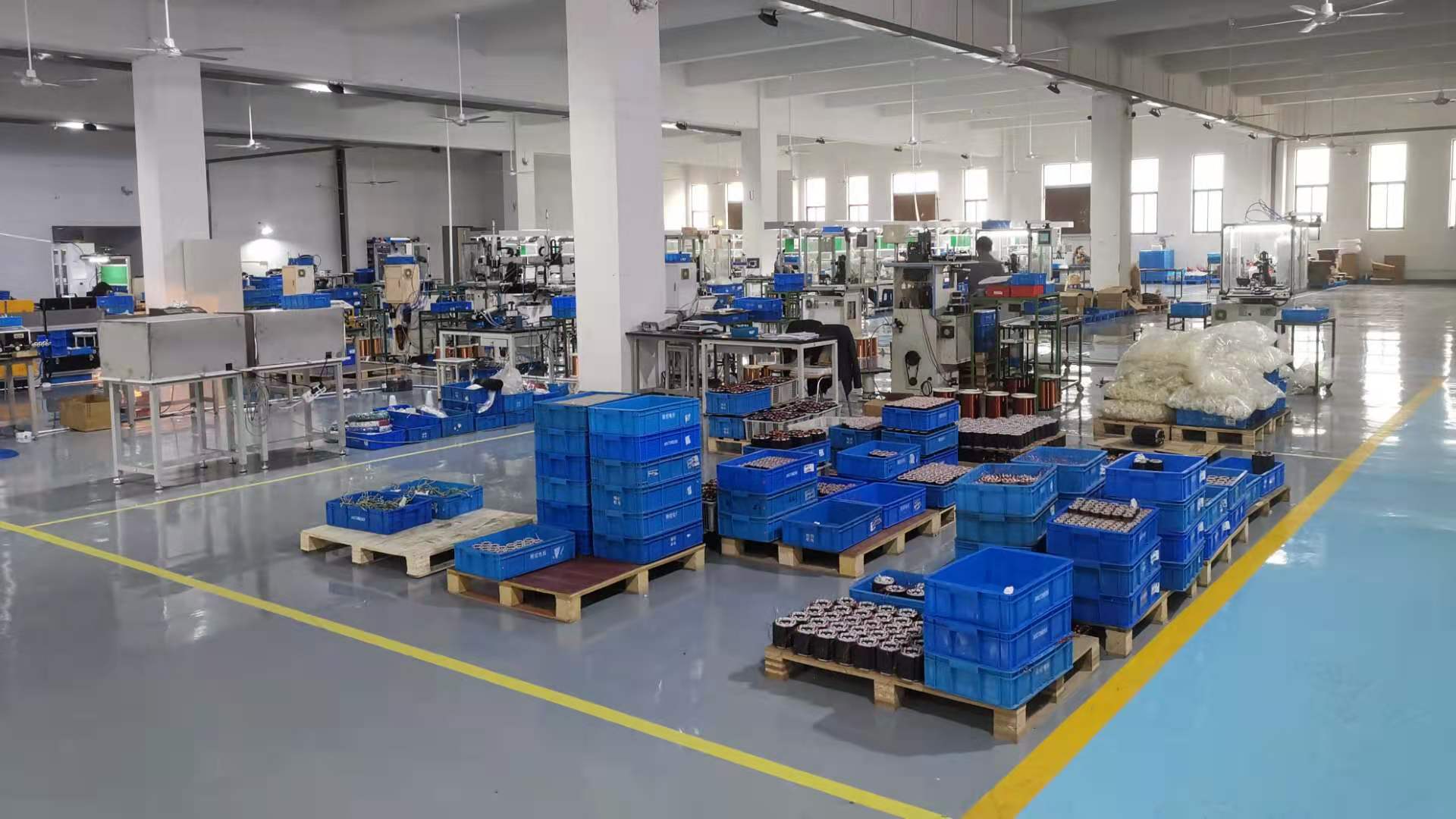

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on. JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.

1. Can you make the gearbox or gearmotor with custom specifications?

YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

2. Do you provide the samples?

YES. Our company can provide the samples to you

3.Do you provide technology support?

YES. Our company have strong R&D capability, we can provide technology support if you need.

4. why should you buy from us not from other suppliers?

Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.

5. How to ship to us?

We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.

6. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
