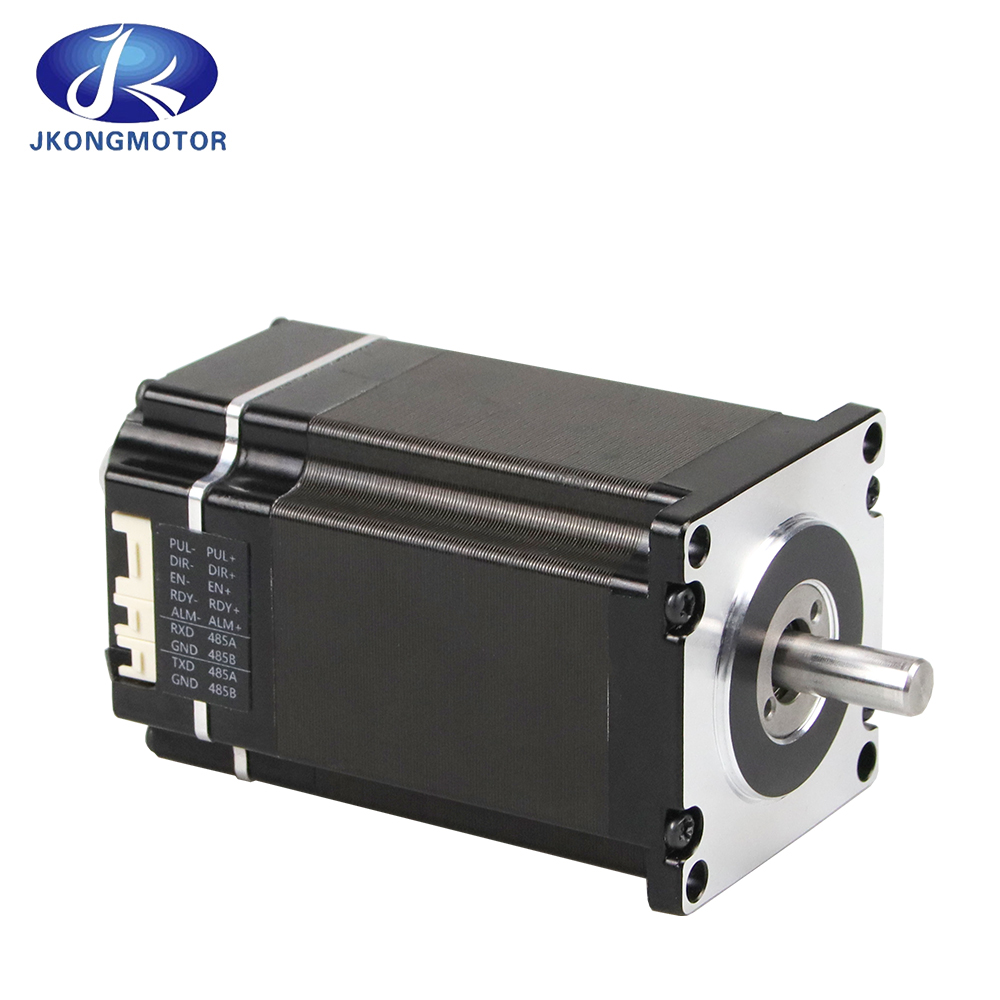

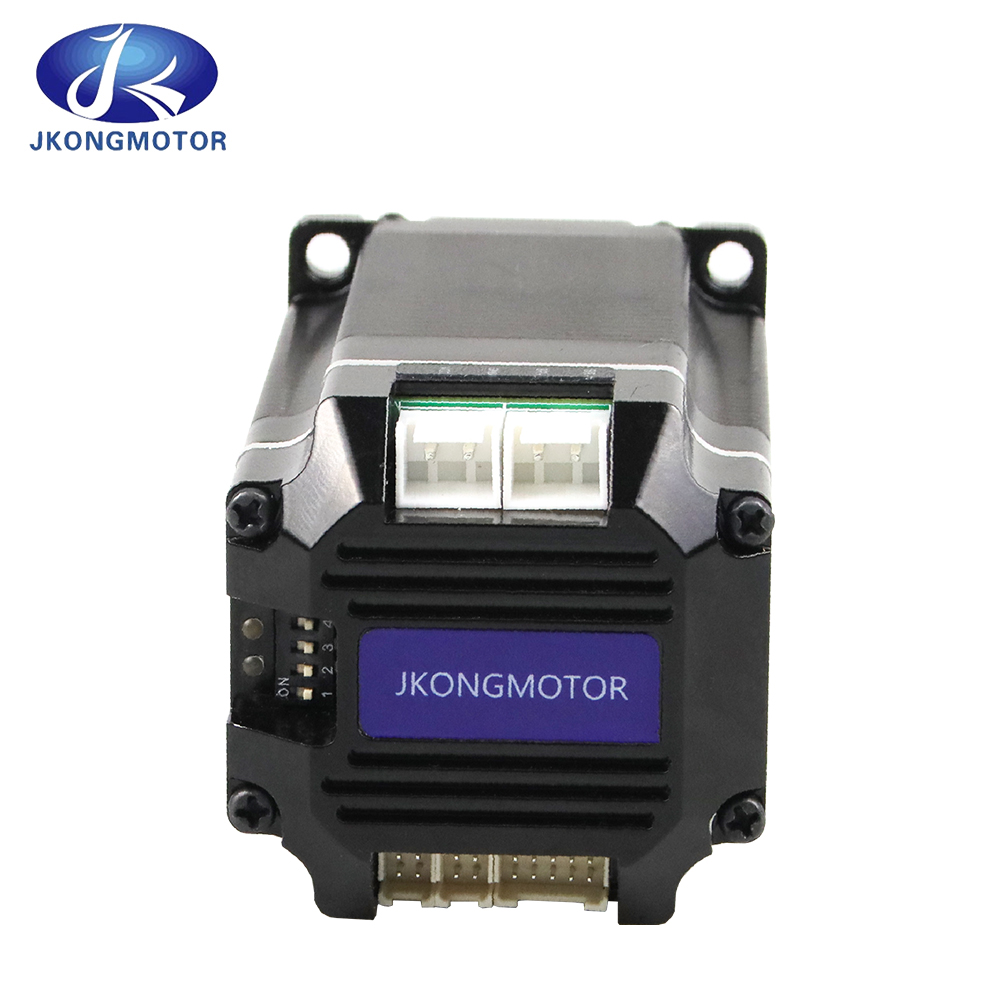

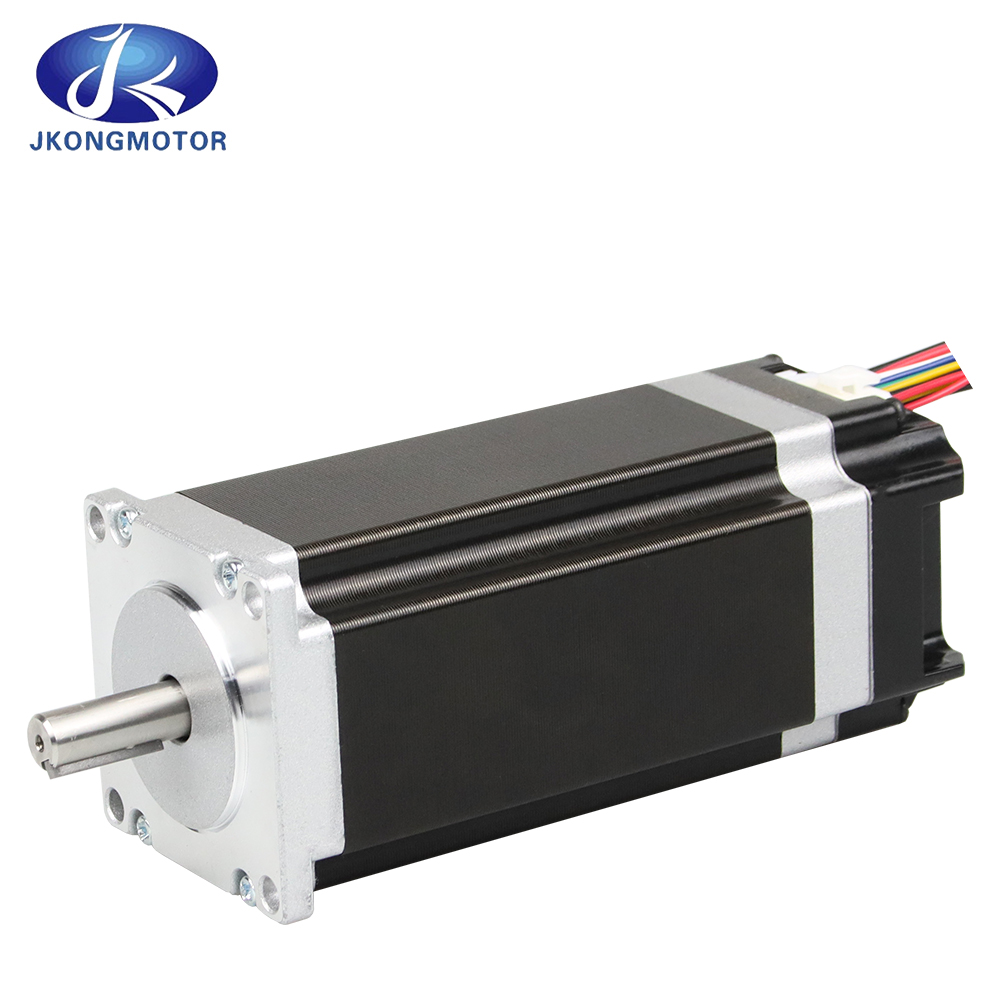

JKISS57-P05A 4.2a 2.8N.m NEMA23 Integrated Stepper Servo Motor for CNC Milling Machines
$40.00
≥5 piece
$35.00
≥100 piece
$30.00
≥1000 piece
Holding torque:
- 0.55N.m
- 1.2N.m
- 1.89N.m
- 2.2N.m
- 2.8N.m
- 3N.m
Options:
- 1.8
Get Latest Price
You might also like
Basic Info
| Warranty | 1 Year |
|---|---|
| Place Of Origin | Jiangsu, China |
| Brand Name | Jkongmotor |
| Model Number | JKISS57-P05A |
| Phase | 2 |
Show More
Product description

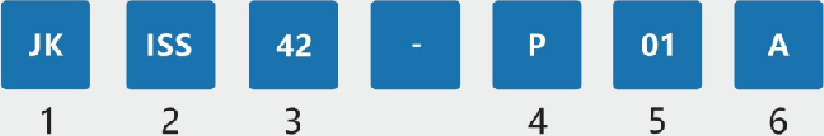

Model naming rules for low voltage integrated stepper servo motor
1.Company name abbreviation
2.Product series model, indicating that the motor is an IDS series, referring to the acronym for integrated DC servo
3.Frame number (42/57/60/80), expressed in millimeters by the dimensions of the motor casing and mounting plate
4.Control method optional (P/R/C) P represents pulse, R represents RS485, and C represents CANopen bus
5.The motor model, such as (01/02/03/04/05/06), represents the model of the motor
6.Encoder type: A represents a 17 bit single turn absolute encoder

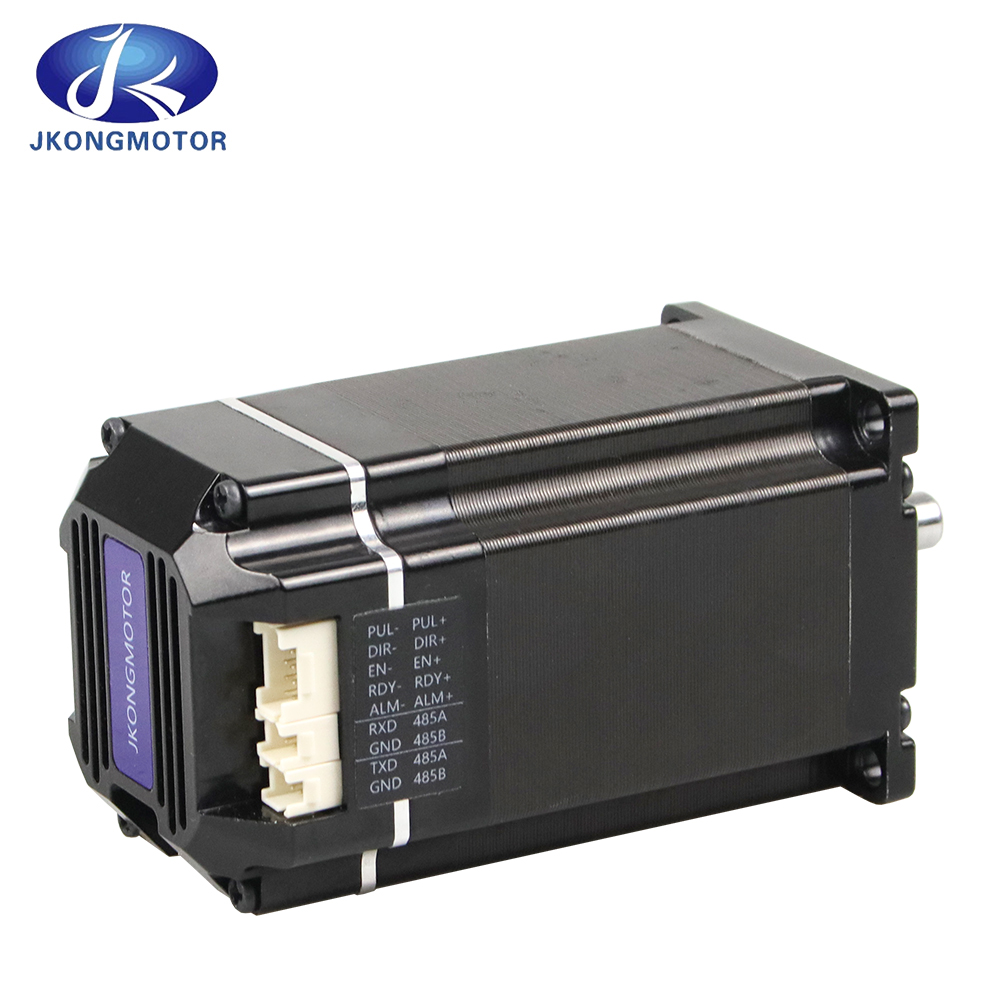

Characteristics of Integrated Stepper Servo Motor
1、Compact: Integrated design of integrated drive motor Easy installation, small footprint, and simple wiring.
2、Multiple motion control modes: Supports the CiA402 standard protocol, including Relative position mode, absolute position mode, speed Mode, torque mode, and origin regression mode.
3、low-power consumption: Adopting low internal resistance MOS to ensure motor performance Excellent torque utilization while reducing motor power consumption And heat generation, effectively extending the service life of
the motor.
4、control mode: Supports pulse/RS485/CANopen.
5、Multi segment position speed function: With multi segment position function and multi segment speed function.
6、Safe and reliable: Driver built-in in place and alarm output signal Convenient for upper computer detection and control built-in Multiple alarm functions such as over differential, over undeivoltage, and over temperature Can ensure the safe operation of processing equipment.
2、Multiple motion control modes: Supports the CiA402 standard protocol, including Relative position mode, absolute position mode, speed Mode, torque mode, and origin regression mode.
3、low-power consumption: Adopting low internal resistance MOS to ensure motor performance Excellent torque utilization while reducing motor power consumption And heat generation, effectively extending the service life of
the motor.
4、control mode: Supports pulse/RS485/CANopen.
5、Multi segment position speed function: With multi segment position function and multi segment speed function.
6、Safe and reliable: Driver built-in in place and alarm output signal Convenient for upper computer detection and control built-in Multiple alarm functions such as over differential, over undeivoltage, and over temperature Can ensure the safe operation of processing equipment.

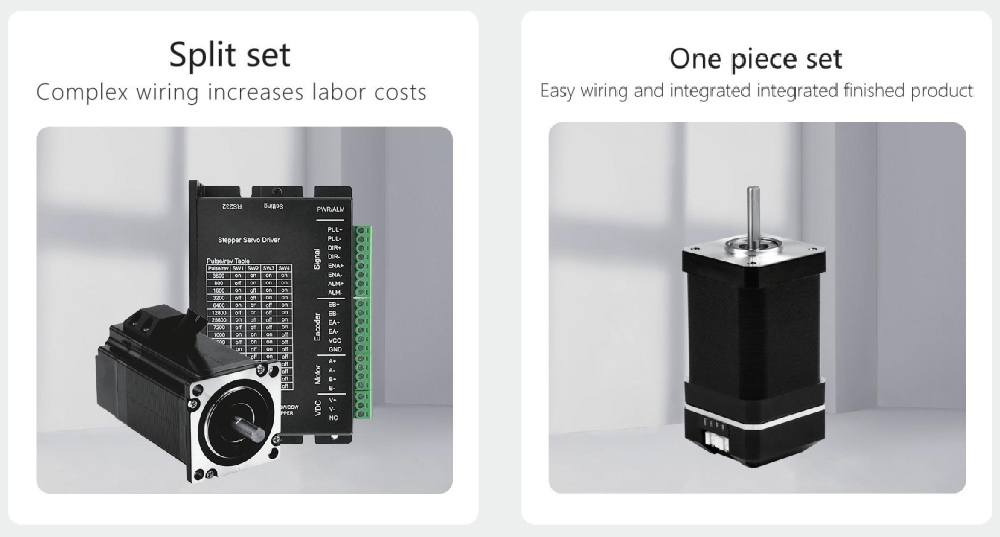

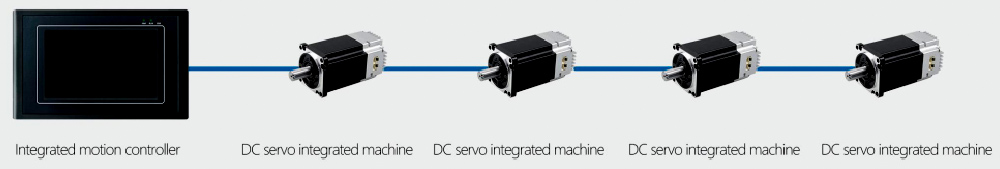

Integrated solution for precision control motors
Split set: Complex wiring increases labor costs
One piece set:Easy wiring and integrated integrated finished product
Features:
1、Cortex-M4 core high-performance 32-bit micro controller
2、The highest pulse response frequency can reach 200KHz
3、Built in protection function, effectively ensuring the safe use of the device
4、Intelligent current regulation to reduce vibration, noise, and heat generation
5、Adopting low internal resistance MOS, the heating is reduced by 30% compared to ordinary products
6、Voltage range: DC12V-36V
7、Integrated design with integrated drive motor, easy installation, small footprint, and simple wiring
8、Equipped with anti reverse connection function
Communication method:
1、Pulse type
2、RS485 MOdbus RTU network type
3、CANopen network type
Protection level:
Waterproof type: IP30, IP54, IP65, optional
Usage:
Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc
medicine ingredient industry, etc

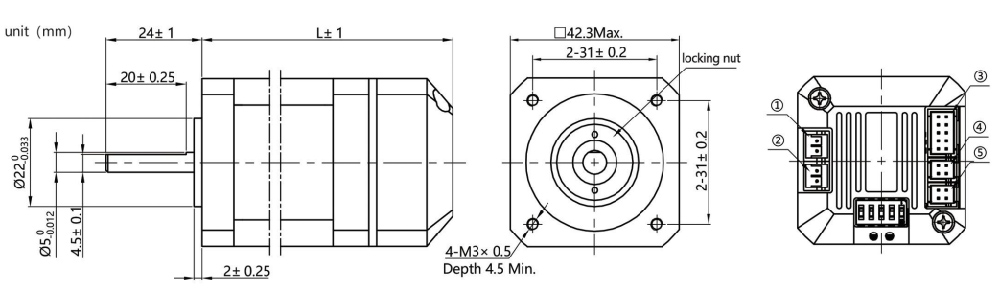

42mm Square Integrated Stepper Servo Motor | ||||||||||||||
Model | Step Angle (1.8°) | Rated Current (A) | Rated Resistance (Ω) | Rated Torque (N.m) | Body Length L (mm) | Encoder | Control method (optional) | |||||||
JKISS42-P01A | 1.8 | 1.3 | 2.1 | 0.22 | 54 | 1000ppr/17bit | Pulse / RS485 / CANopen | |||||||
JKISS42-P02A |
1.8
| 1.68 | 1.65 | 0.42 | 60 | 1000ppr/17bit |
Pulse / RS485 / CANopen
| |||||||
JKISS42-P03A |
1.8
| 1.68 | 1.65 | 0.55 | 68 | 1000ppr/17bit |
Pulse / RS485 / CANopen
| |||||||
JKISS42-P04A |
1.8
| 1.7 | 3 | 0.8 | 80 | 1000ppr/17bit |
Pulse / RS485 / CANopen
| |||||||

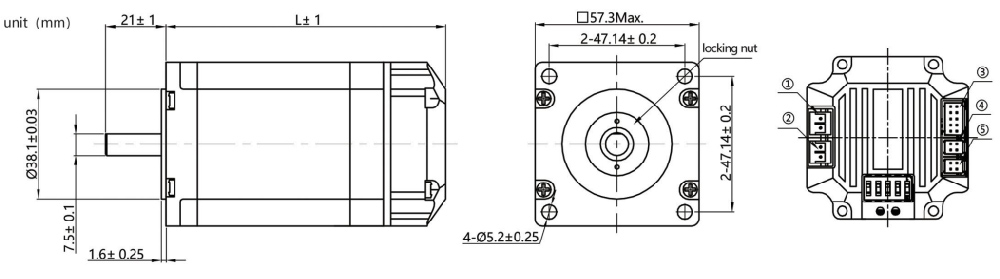

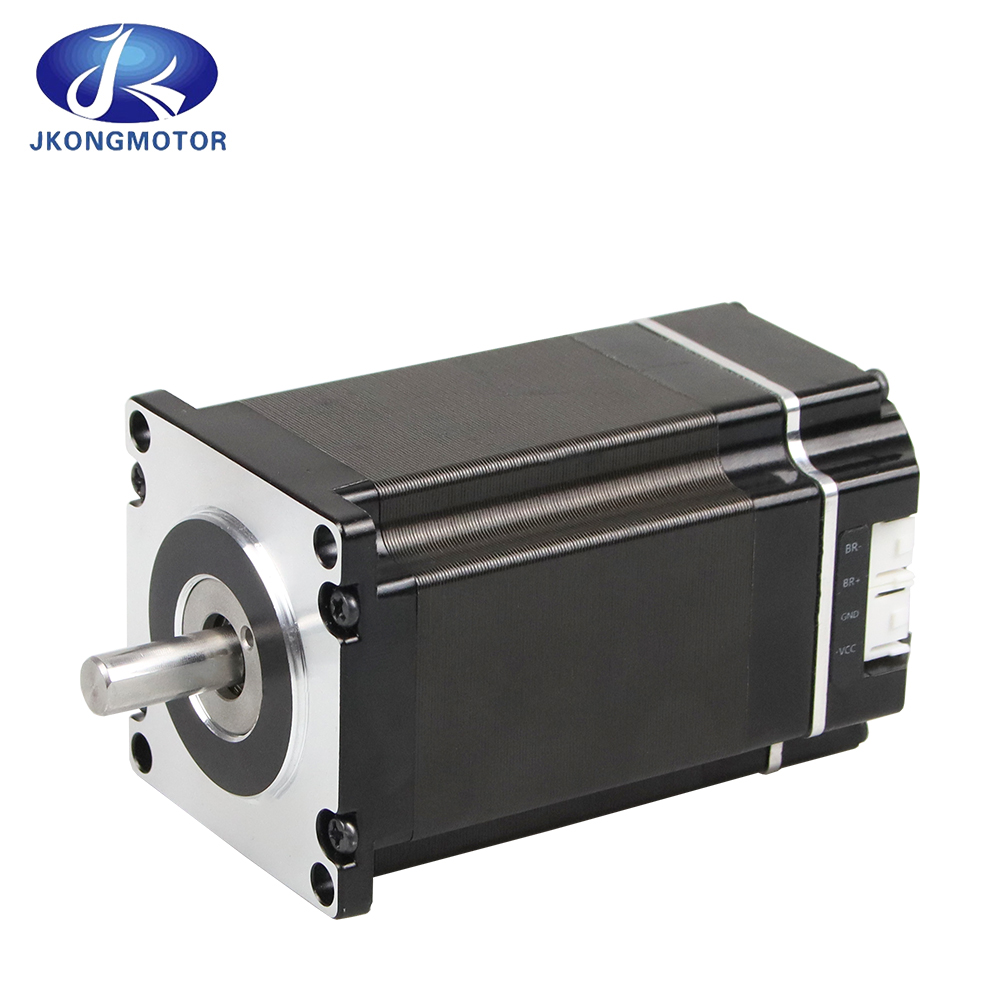

57mm Square Integrated Stepper Servo Motor
Model | Step Angle (1.8°) | Rated Current (A) | Rated Resistance (Ω) | Rated Torque (N.m) | Body Length L (mm) | Encoder | Control method (optional) |
JKISS57-P01A | 1.8 | 2 | 1.4 | 0.55 | 65 | 1000ppr/17bit | Pulse / RS485 / CANopen |
JKISS57-P02A |
1.8
| 2.8 | 0.9 | 1.2 | 80 | 1000ppr/17bit |
Pulse / RS485 / CANopen
|
JKISS57-P03A |
1.8
| 2.8 | 1.1 | 1.89 | 100 | 1000ppr/17bit |
Pulse / RS485 / CANopen
|
JKISS57-P04A |
1.8
| 3 | 1.2 | 2.2 | 106 | 1000ppr/17bit |
Pulse / RS485 / CANopen
|
JKISS57-P05A |
1.8
| 4.2 | 0.75 | 2.8 | 124 | 1000ppr/17bit |
Pulse / RS485 / CANopen
|
JKISS57-P06A |
1.8
| 4.2 | 0.9 | 3 | 136 | 1000ppr/17bit |
Pulse / RS485 / CANopen
|

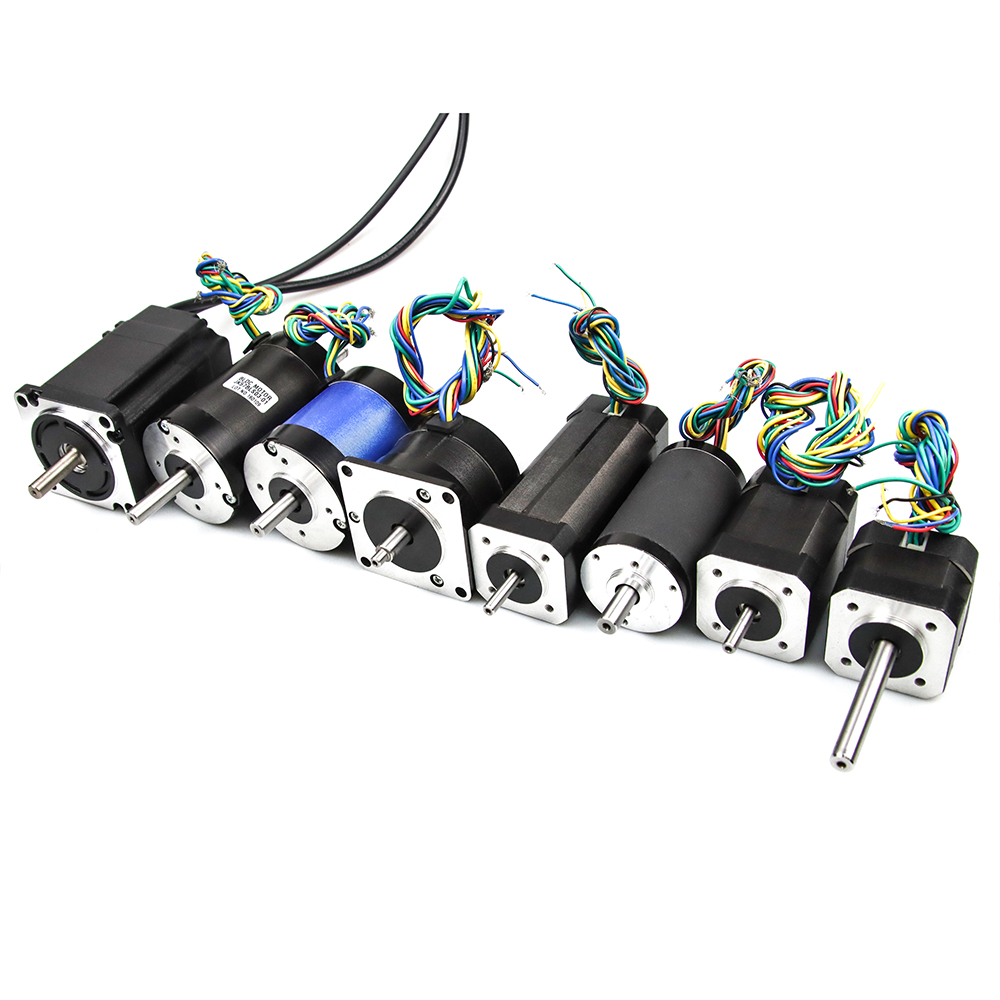

BLDC Motor
1、Various Size: 42mm to 130mm
2、Different Gearbox: Planetary Gearbox / Worm Gearbox / Eccentric Gearbox
3、Parameters Customized: Shaft / Flange / Brake / Encoder / Integrated Driver / Cables
4、Complete and mature drive system support
5、Without brush, low interference, long life, low maintenance cost, low noise, smooth operation

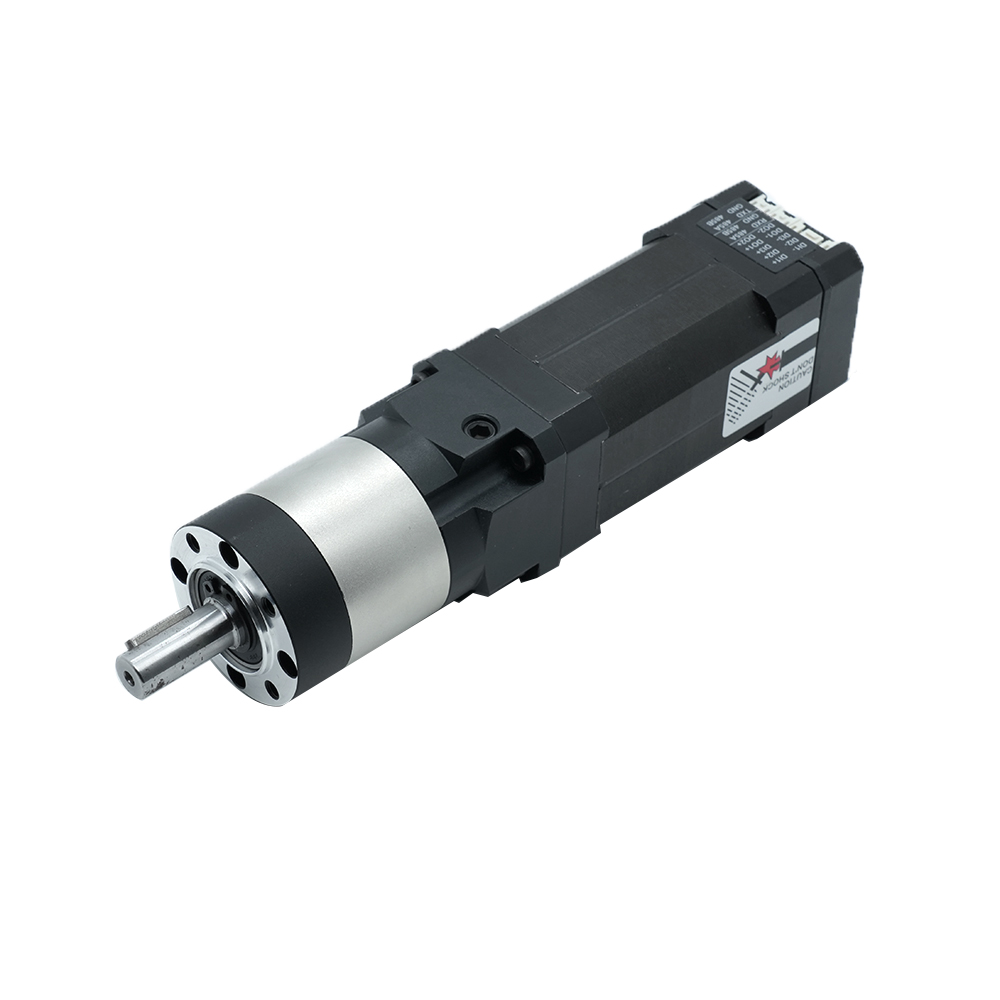

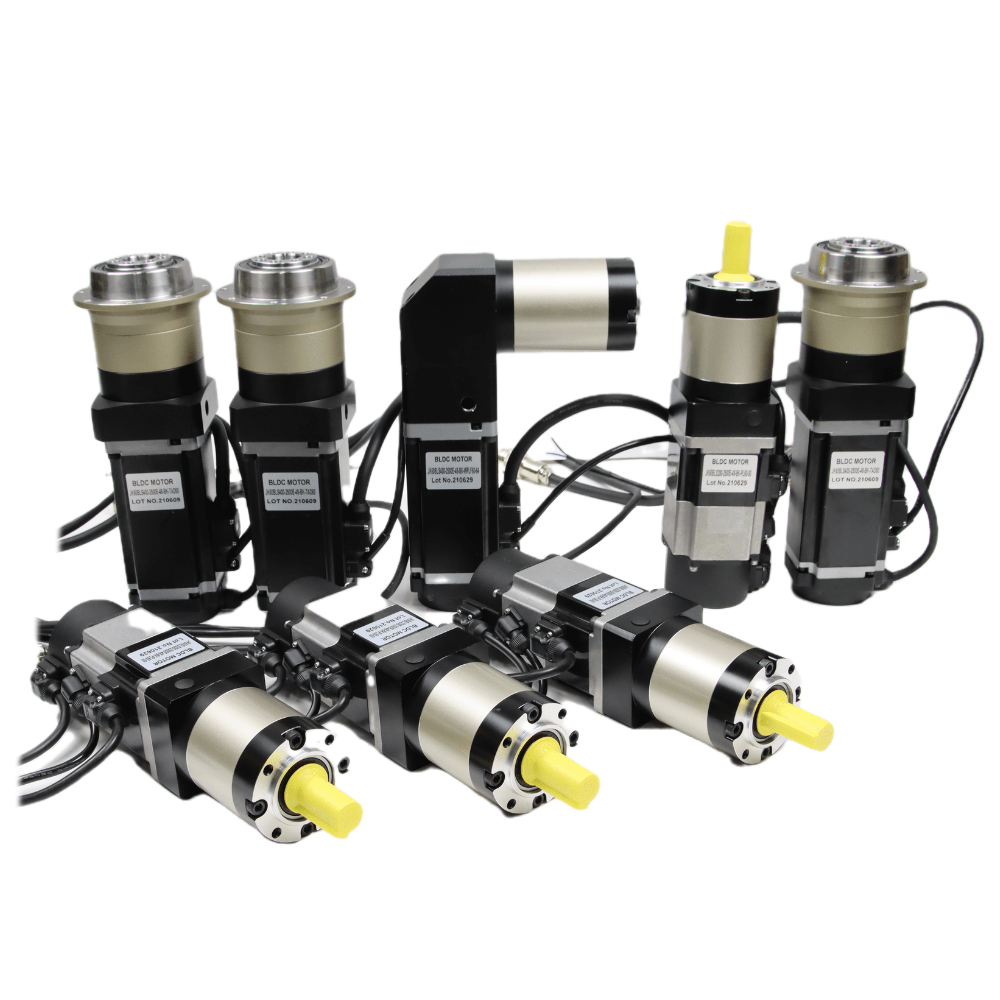

BLDC Gear / Brake Motor

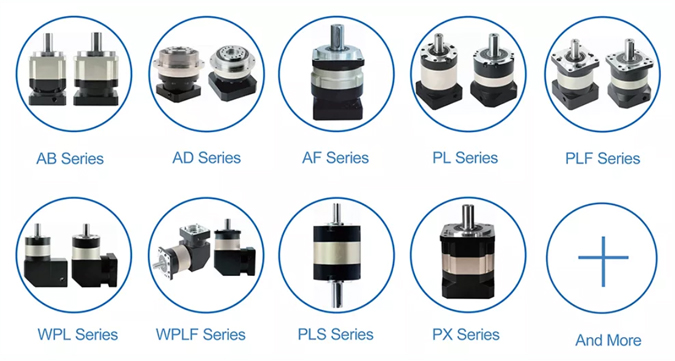

1、Planetary Gearbox
2、High Precision Planetary Gearbox
3、Worm Gearbox
4、Eccentric Gearbox
5、Encoder / Brake
6、Integrated Dc Servo Motor
7、High-precision output
8、High-performance transmission can achieve high torque transmission, high-precision output, high rigidity and low noise
9、Small size, compact structure, large load-bearing capacity, and the design itself can also achieve high-precision positioning

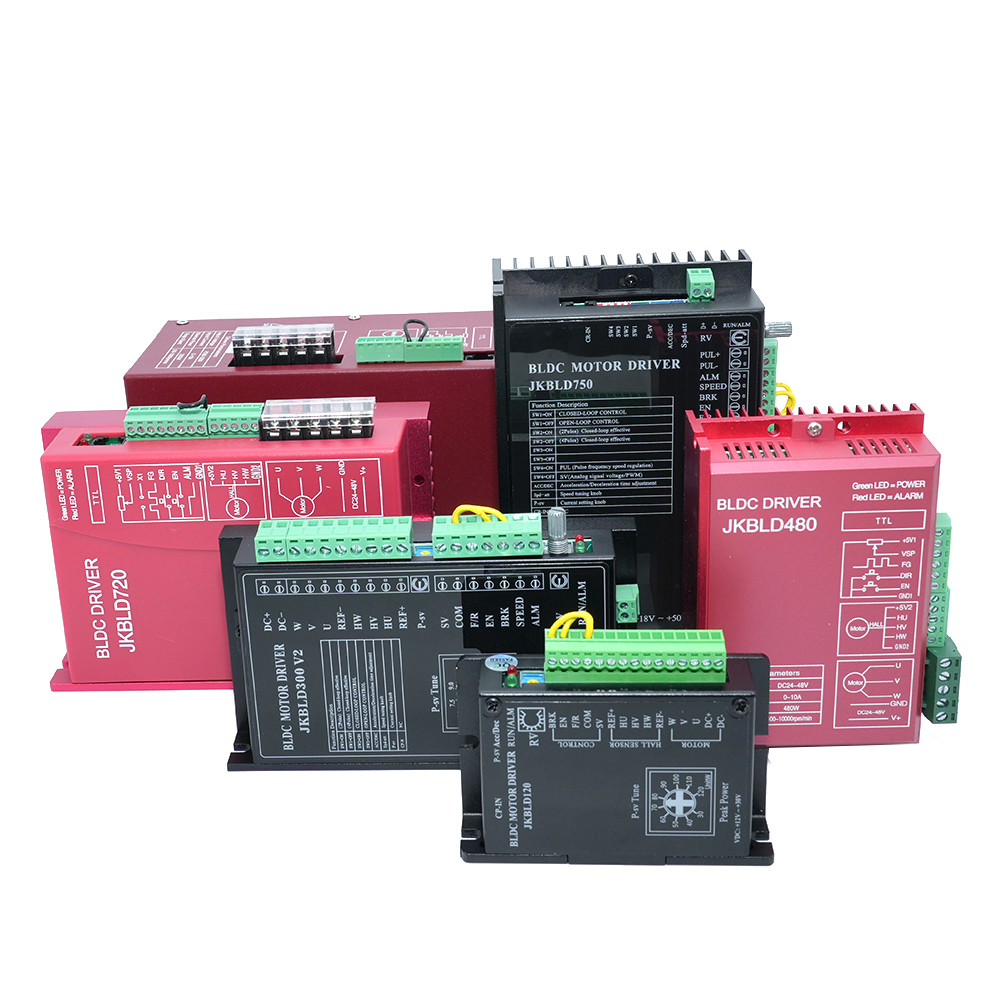

BLDC Motor Driver
1、Including：JKBLD120 / JKBLD300 / JKBLD480 / JKBLD720 / JKBLD750 / JKBLD1100 / JKBLD2200
2、Suitable for the bldc motor with Hallsensor or without hallsensor
3、Optional for RS232 / RS485 Control
4、Stable operation and can be appropriately overloaded
5、Suitable for brushless motors of various specifications
6、Complete and mature drive system support
7、Perfect pre-sales, during-sales and after-sales services

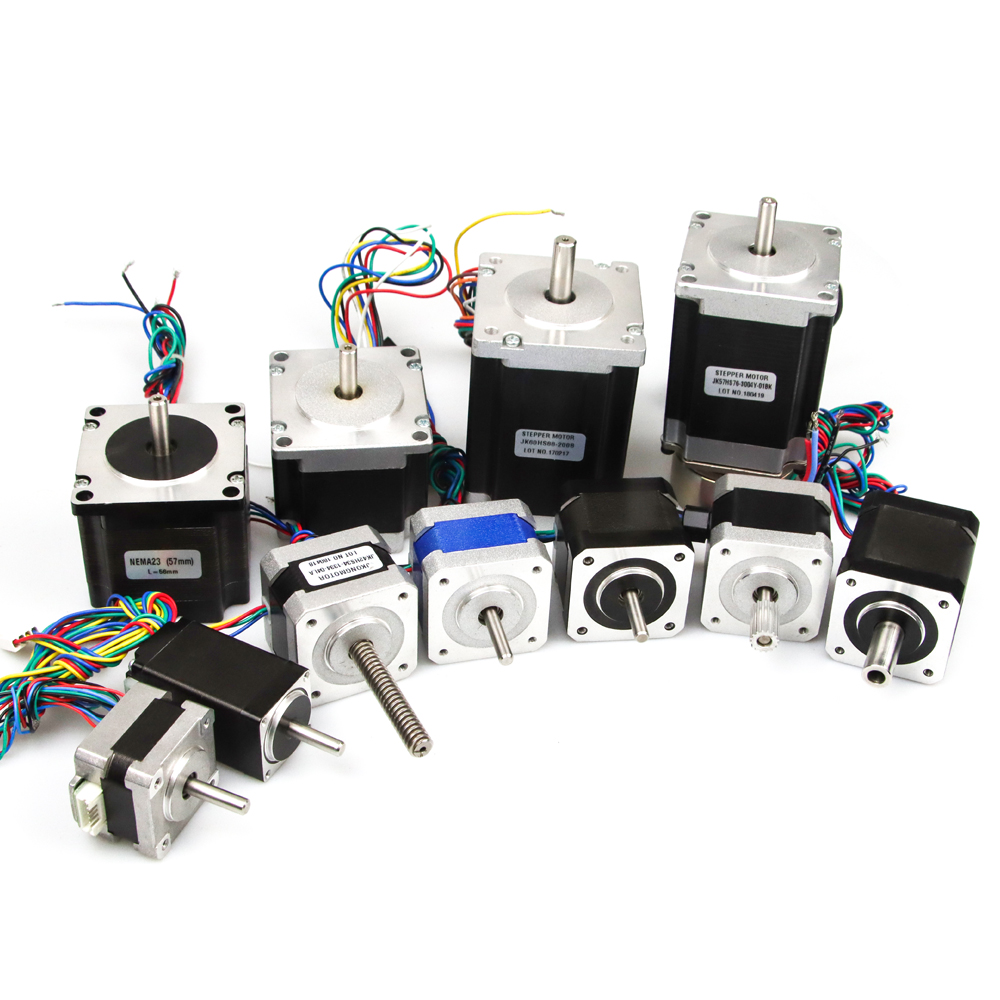

Stepper Motor
1、Various Size: 20mm to 130mm
2、Parameters Customized: Shaft / Flange / Brake / Encoder / Integrated Driver / Cables

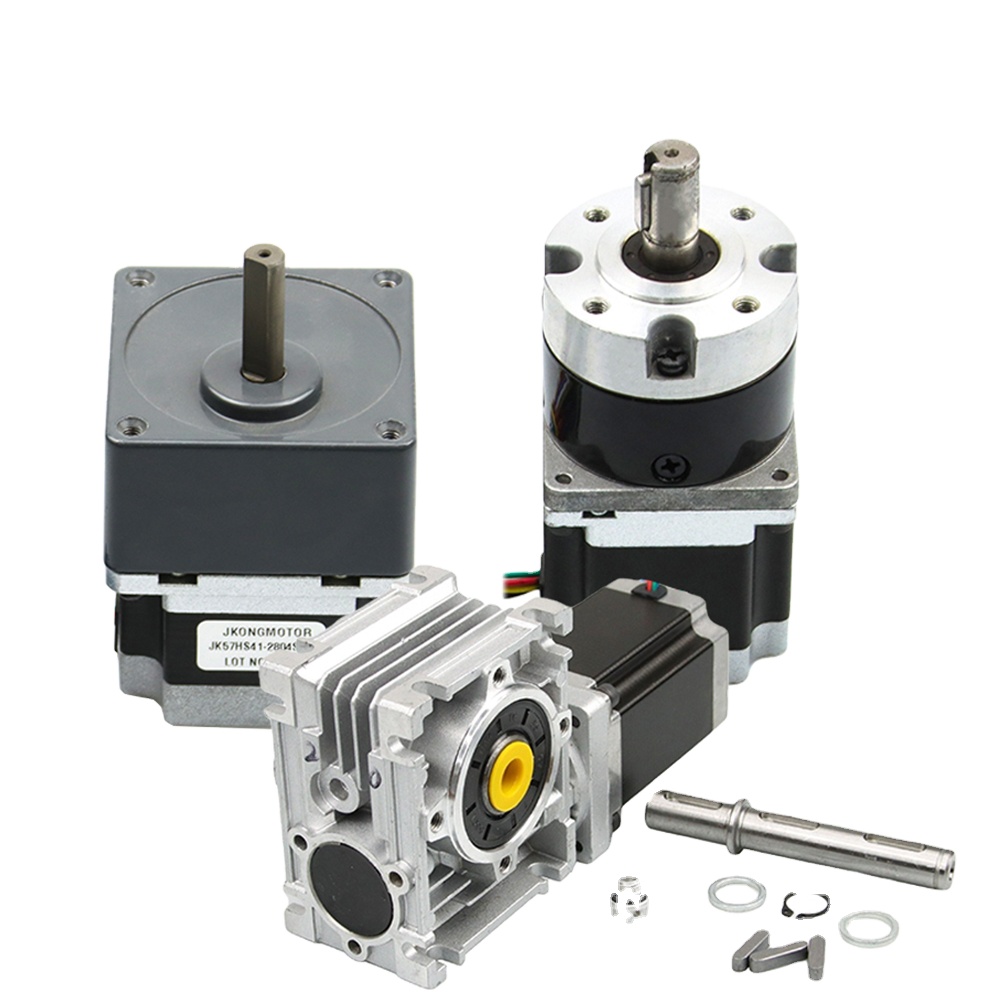

Geared / Brake Stepper Motor
1、Planetary Gearbox / High Precision Planetary Gearbox / Worm Gearbox / Eccentric Gearbox
2、Encoder / Brake optional

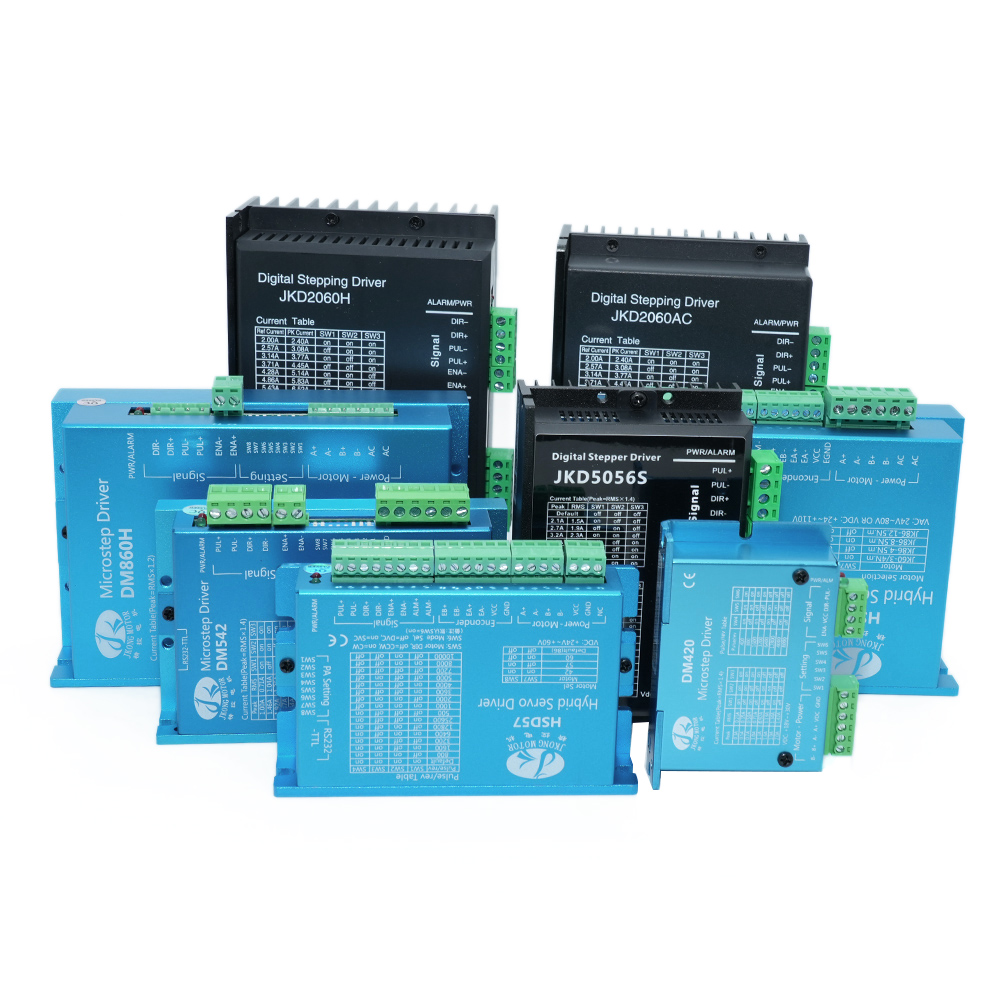

Stepper Motor Driver
1、Different type for stepper motors from nema 8 to nema 52 stepping motors
2、Suitable for Hybrid Stepper Motor or Closed Loop Stepping Motor

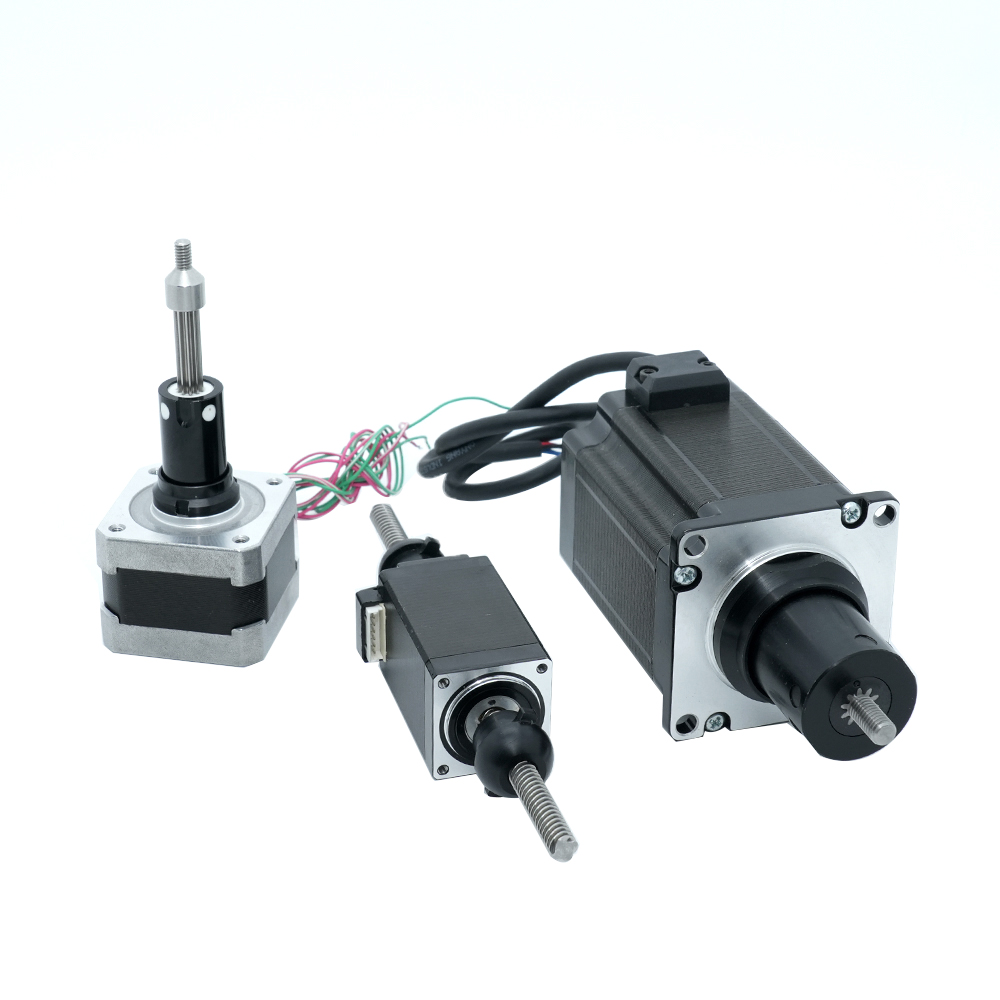

Linear Screw Motor
1、Linear Actuators / Linear Guide Rail
2、Ball Screw / T-Screw...

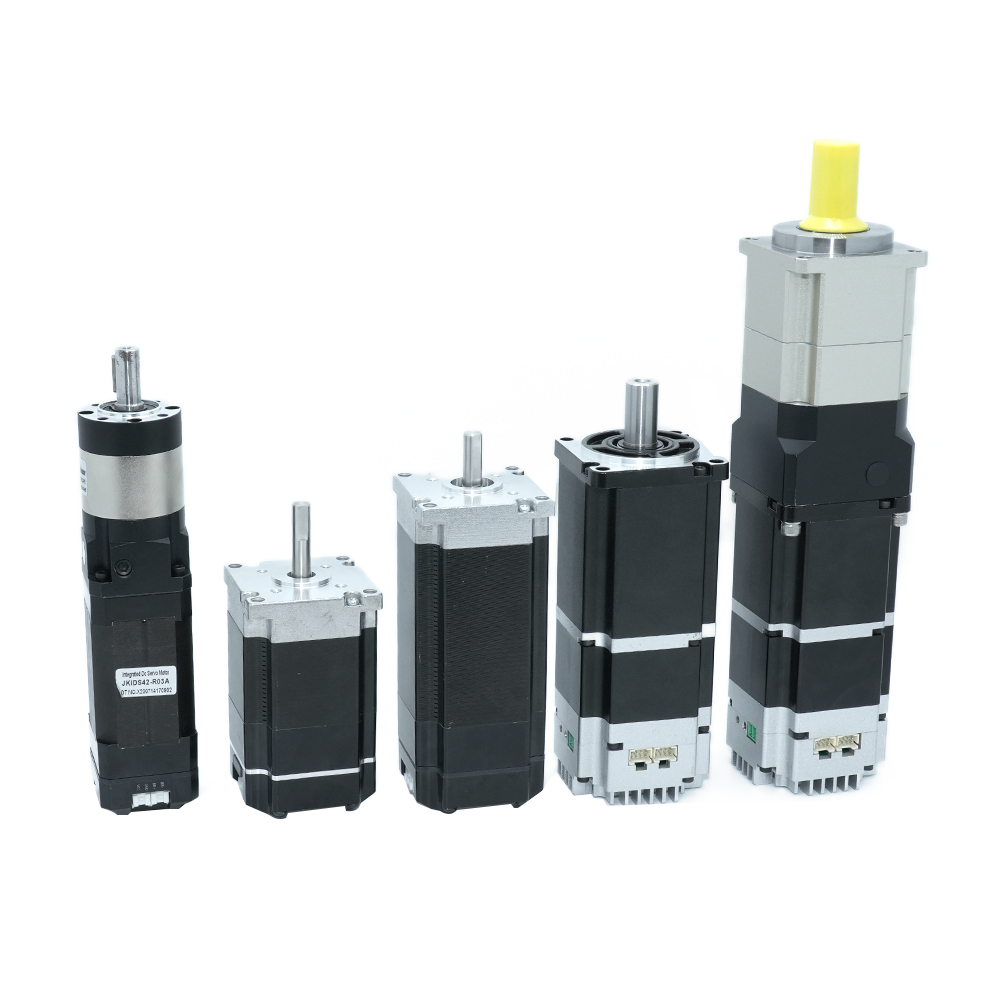

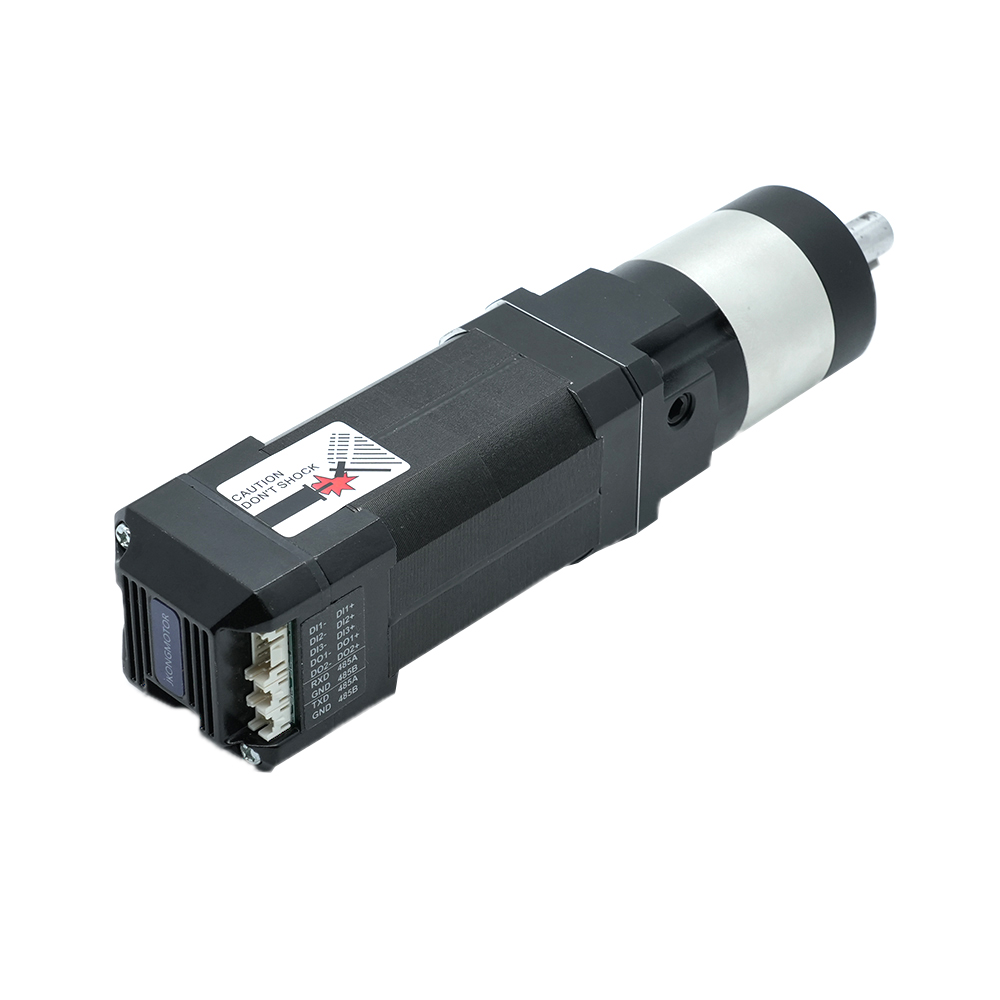

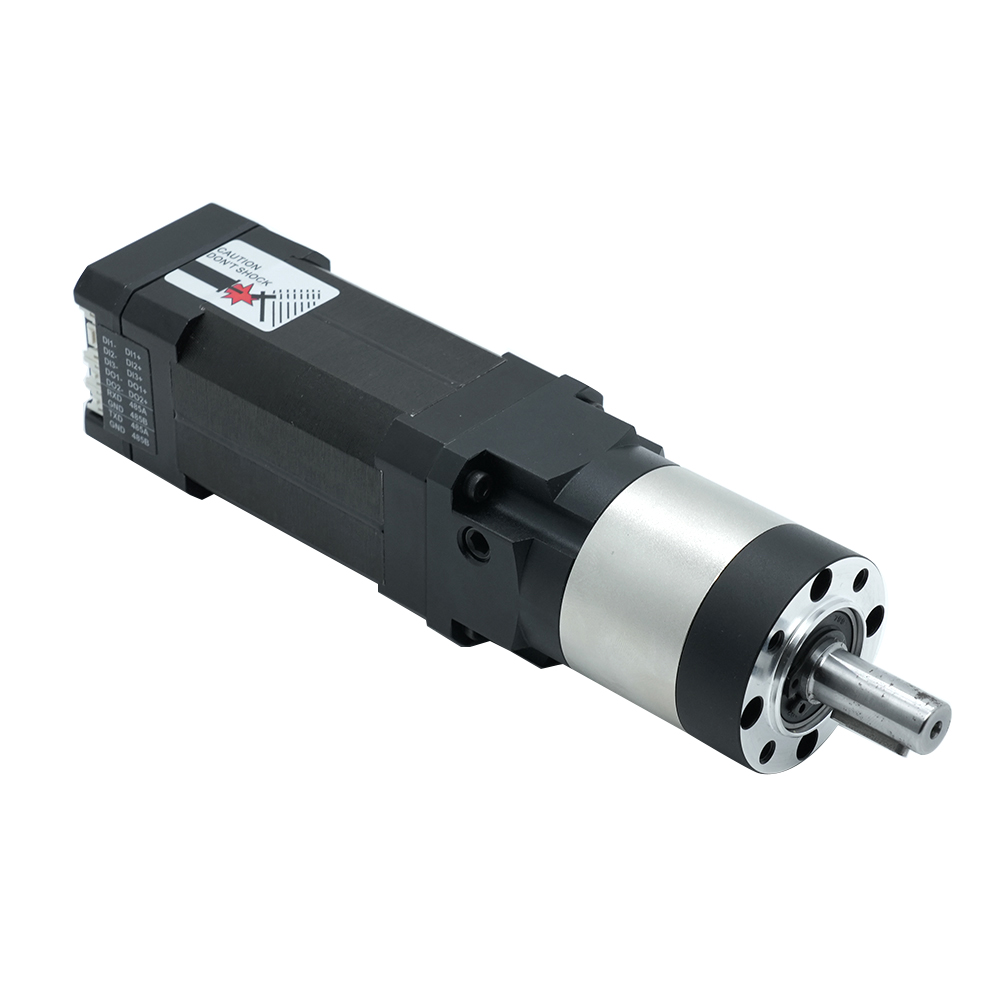

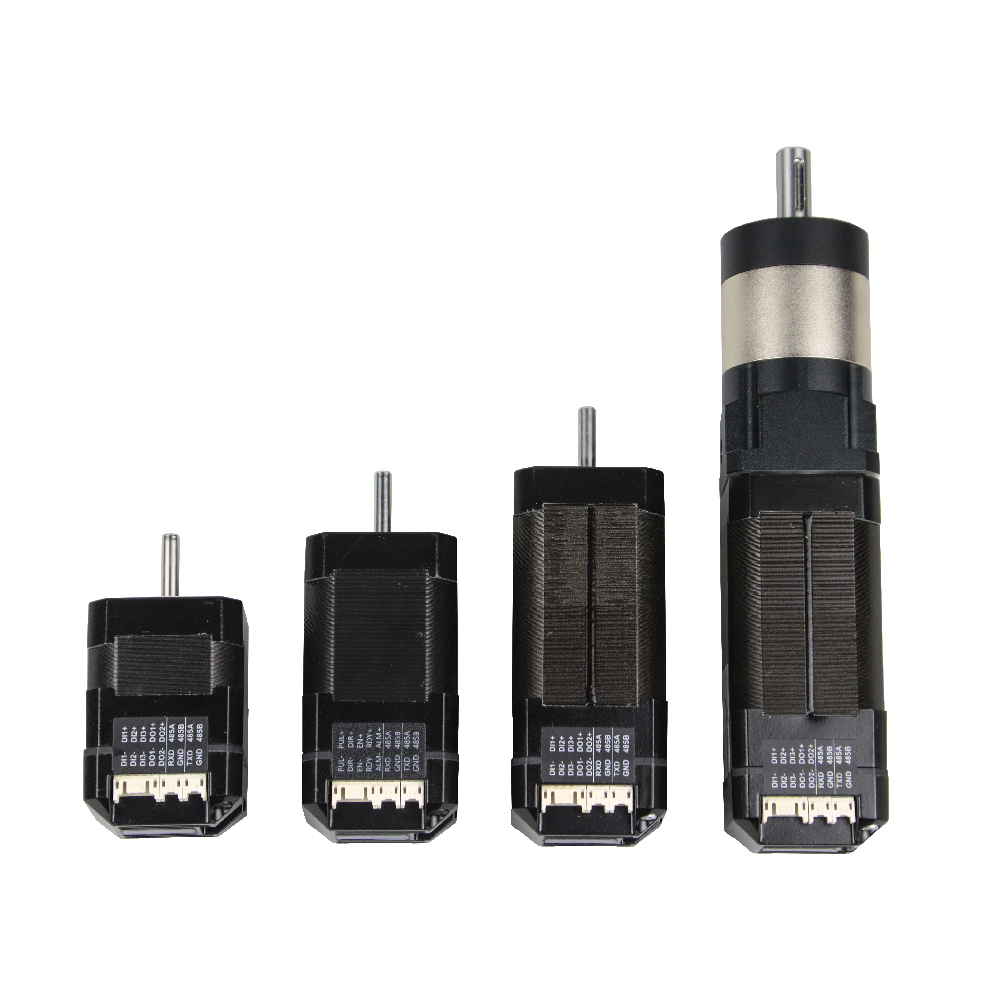

Integrated Servo Motor
1、Integrated Dc Servo Motor
2、Integrated Stepper Motor
3、Encoder / Brake / Gearbox / Shaft
Brush Dc Motor
1、From 42mm to 90mm
2、Encoder / Brake / Gearbox optional
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(26.00%),Western Europe(20.00%),North
America(20.00%),Northern Europe(10.00%),Eastern Europe(7.00%),Africa(5.00%),Southeast Asia(5.00%),Mid East(5.00%),South America(2.00%). There are total about 51-100 people in our office.
America(20.00%),Northern Europe(10.00%),Eastern Europe(7.00%),Africa(5.00%),Southeast Asia(5.00%),Mid East(5.00%),South America(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(26.00%),Western Europe(20.00%),North
America(20.00%),Northern Europe(10.00%),Eastern Europe(7.00%),Africa(5.00%),Southeast Asia(5.00%),Mid East(5.00%),South America(2.00%). There are total about 51-100 people in our office.
America(20.00%),Northern Europe(10.00%),Eastern Europe(7.00%),Africa(5.00%),Southeast Asia(5.00%),Mid East(5.00%),South America(2.00%). There are total about 51-100 people in our office.
3.what can you buy from us?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Always final Inspection before shipment;
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
