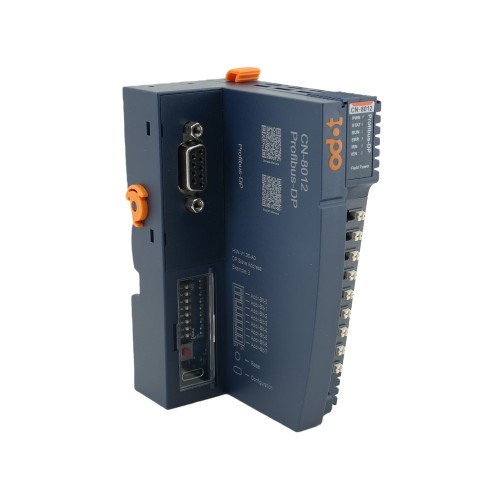

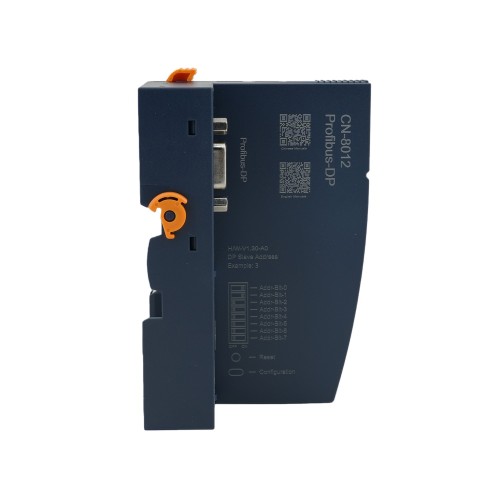

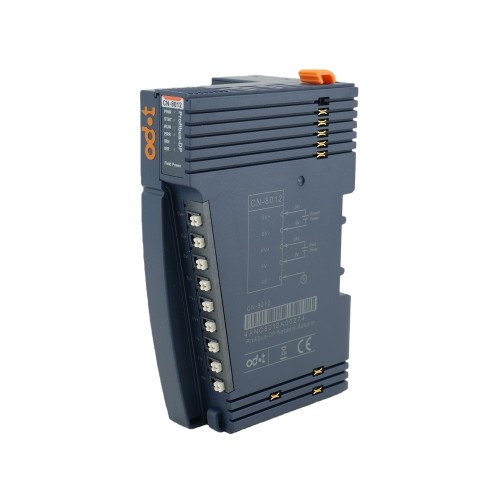

ODOT CN-8012 Profibus-DP IO Module Bus Adapter Remote Control

CN-8012 Profibus-DP Bus Adapter?Module Overview

CN-8012 PROFIBUS-DP network adapter supports access of standard PROFIBUS-DP, and the protocol version it supports is DPV0.

Technical Parameters

Adapter Hardware Parameter

Hardware Parameters
System Power	Nominal:24VDC, Range: 19.2～28.8VDC? Current: Max.2A@24VDC? Protection: Reverse Protection, Overcurrent Protection
Power Consumption	30mA@24VDC
Internal Bus Supply Current	Max.: 2.5A@5VDC
Isolation	System Power to Field Power Isolation
Power Supply	Nominal:24VDC, Range: 19.2～28.8VDC
Field Power Current	Max. DC 8A
IO Modules Supported	32 pcs
Wiring	Max.: AWG 18? ? ? ?Min.: AWG 24
Installation	35mm DIN-Rail
Size	11551.575mm
Weight	130g
Environment Specification
Operating Temperature of Vertical Installation	-35℃~70℃
Operating Temperature of Horizontal Installation	-35℃~60℃
Relative Humidity	5~ 95%RH (No Condensation)
Storage Temperature	-40℃~85℃
Storage Humidity	5~ 95%RH (No Condensation)
Manufacturing Test Temperature	-40℃~75℃
Ingress Protection Rating	IP20
Modbus-RTU Parameter
Protocol	PROFIBUS DPV0
Baud rate	9.6k, 19.2k, 45.45 k, 93.75 k, 187.5 k, 500 k,1.5 M, 3 M, 6 M, 12 Mbps
Interface Type	DB9 female head
Station Type	PROFIBUS Slave
Station Address	Dial code switch configuration
Topology	Bus Topology
Configuration Max. Length	232 bytes
IO Data Max. Length	Input: Max. 244 bytes, Output: Max. 244 bytes,Sum of input and out put: Max. 288 bytes

?FQA

Q：Which Profibus-DP version does CN-8012 support?

A: Supports DP-V0, suitable for fast cyclic data communication scenarios.

Q：What is the maximum input/output capacity of CN-8012?

A: 244 bytes input, 244 bytes output, total 288 bytes, suitable for small to medium automation equipment.

Q:How many C-series remote IO modules can CN-8012 expand?

A: Supports up to 32 modules for modular expansion.

Certifications & Quality Assurance:

ODOT products comply with international industrial standards, including CE and RoHS, and undergo strict quality control to ensure long-term reliable operation in industrial environments.
