PROFINET RT IRT PLC Adapter

Get Latest Price

You might also like

Network Adapter for PROFINET

1 (MOQ)

PROFINET IO Module Network Adapter Remote Control

1 (MOQ)

ODOT PROFINET IO Module Network Adapter

1 (MOQ)

PROFINET RT IRT PLC Adapter

1 (MOQ)

Basic Info

Model No.	CN-8032
Brand Name

Product description

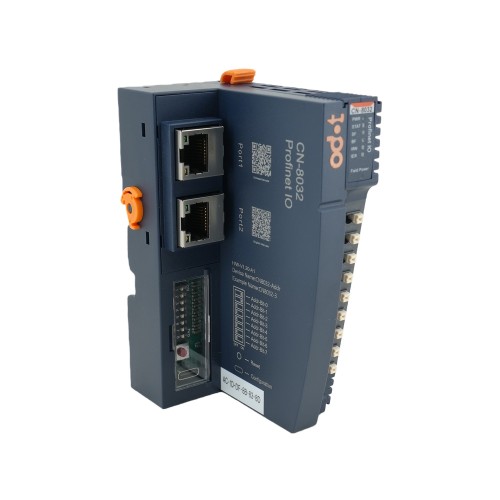

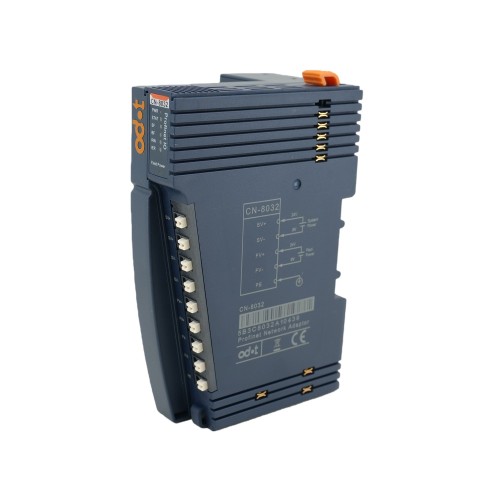

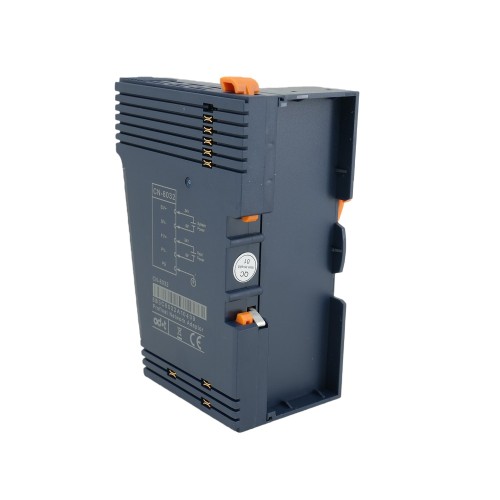

PROFINET RT IRT PLC Adapter

ODOT CN-8032 PROFINET network adapter enables fast integration of distributed I/O into PLC systems,ideal for packaging, intralogistics, and assembly lines.

Product Feature:

The CN-8032 Profinet network adapter supports standard Profinet IO Device Communication. The adapter supports MRP media redundancy, and it could realize ring network redundancy. And it supports RT/IRT real-time and synchronous communication mode, with its RT real-time communication minimum period of 1ms and IRT synchronous communication minimum period of 250us.The adapter supports a maximum input of 1440 bytes, a maximum output of 1440 bytes, and the number of the extended IO modules it supports is 32.

Hardware Specification
System Power	Nominal: 24VDC, Range: 19.2～28.8VDC Current: Max.2A @ 24VDC Protection: Reverse Protection, Overcurrent Protection
Power Consumption	110mA @ 24Vdc
Internal BUS Supply Current	Max:2A @ 5Vdc
Isolation	System Power to Field Power Isolation
Field Power	Nominal-24Vdc；Range-19.2-28.8Vdc
Field Power Current	Max DC 8A
IO Modules Supported	32 pcs
Wiring	Max.: AWG 18；Min.: AWG 24
Installation	35mm DIN-Rail
Size	11551.575mm
Weight	130g
Environment Specification
Operating Temperature of Vertical Installation	-35℃~70℃
Operating Temperature of Horizontal Installation	-35℃~60℃
Relative Humidity	5~ 95%RH (No Condensation)
Storage Temperature	-40℃~85℃
Storage Humidity	5~ 95%RH (No Condensation)
Manufacturing Test Temperature	-40℃~75℃
Ingress Protection Rating	?IP20
Profinet Parameter
Protocol	Profinet IO Device
I/O Data Size	Input Max.1440 Bytes, Output Max.1440 Bytes
RT	YES，Min.1ms
IRT	YES，Min.250us
MRP	Supported
MRPD	Not Supported
Network Interface	2*RJ45
Speed	10/100Mbps, MDI/MIDX, Full-Duplex
Max bus distance	100m
Profinet Device Name	DIP switch setting or Profinet monitor modifying

Typical Applications:

1. Auto parts manufacturing

https://www.odotautomation.com/case/auto-parts-manufacturing/

2. Intralogistics and conveyor systems

https://www.odotautomation.com/case/logistics-warehousing-smart-warehouse/

3.?Food & beverage production

https://www.odotautomation.com/case/beverage-filling-applications/?

?FAQ

? ? ? Q:Why choose ODOT PROFINET I/O?

? ? ? A:ODOT provides a stable, scalable I/O platform with fast delivery and competitive system cost.?

? ? ? Q:Is CN-8032 suitable for Siemens PROFINET systems?

? ? ? A:Yes. CN-8032 is fully compatible with Siemens PROFINET PLC systems and supports standard GSDML configuration.

? ? ? Q:How many I/O modules can be expanded?

? ? ? A:The CN-8032 supports up to 32 ODOT C-series remote I/O modules, allowing flexible configuration for different automation needs.

Certifications & Quality Assurance:

ODOT products comply with international industrial standards, including CE and RoHS, and undergo strict quality control to ensure long-term reliable operation in industrial environments.
